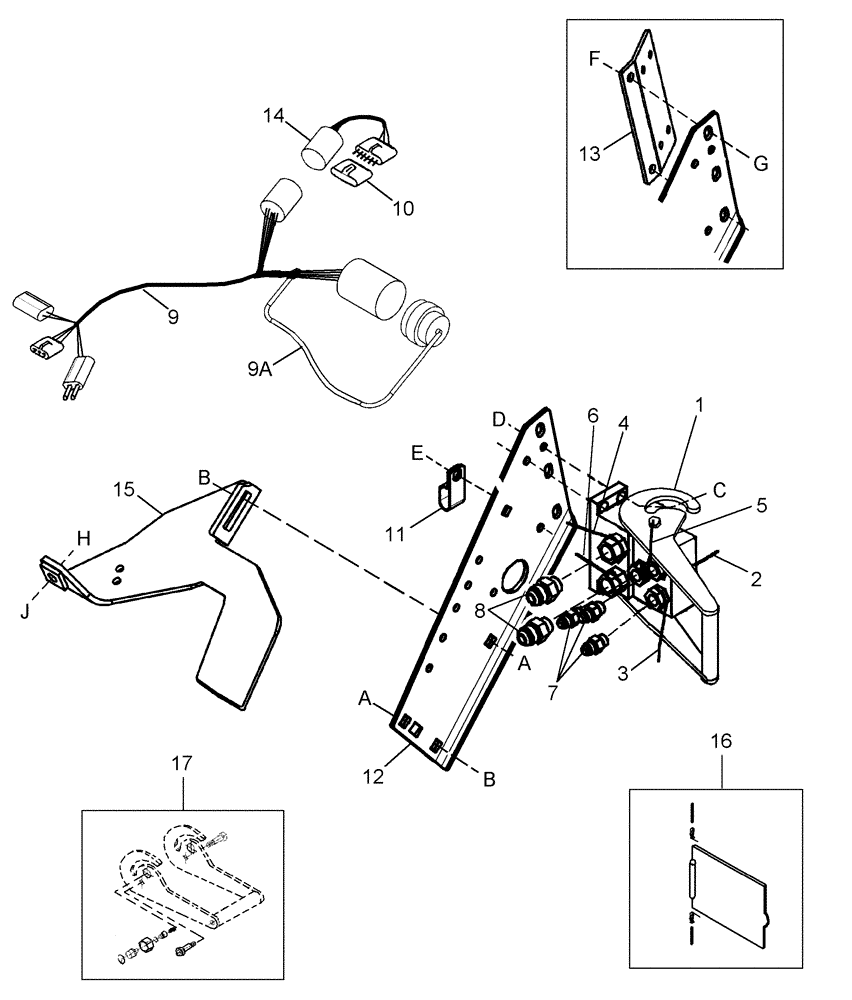

Запчасти Case IH 2062 (09-47) - HEADER COMPLETION PARTS - CASE AFX, NEW HOLLAND CR/CX COMBINES (03) - CHASSIS/MOUNTED EQUIPMENT

1

87408322

COUPLING

Multi-Link

1шт.

2

87407803

FASTENER

Cable Tie, Green, To Fore-Aft, Fore

1шт.

3

87407798

FASTENER

Cable Tie, Red, To Fore-Aft, Fore

1шт.

4

352622A1

FASTENER

Cable Tie, White, To Reel Drive Return

1шт.

5

1336064C1

CABLE TIE

CABLE STRAP Cable Tie, Black, To Reel Lift

1шт.

6

87407797

FASTENER

Cable Tie, Yellow, To Reel Drive Pressure

1шт.

7

87422069

FITTING

Hydraulic, 0.052 in Orifice

3шт.

8

87407792

FITTING

2шт.

9

87408325

HARNESS

Wiring

1шт.

9a

87459411

CAP

Multi-Pin Connector

1шт.

10

87408842

RESISTOR

Header Recognition

1шт.

11

344825A1

SUPPORT

Wiring Harness

1шт.

12

87408797

BRACKET

Hydraulic Coupler Mount

1шт.

13

87409011

PLATE

Extension, For European Shielding, Used to Mount Ref 1

1шт.

14

87438389

HARNESS

Wiring, Header Recognition, For Units Without Float Optimizer

1шт.

15

87457981

GUSSET

Coupler Bracket

1шт.

16

87352717

COVER ASSY

Kit

1шт.

17

87352718

LATCH

Kit

1шт.

a

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

b

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

c

87020811

HEX SOC SCREW,5/16" - 18 x 1"

1шт.

d

232-5345

FLANGE NUT,Flg, 5/16"-18

1шт.

e

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

1шт.

f

232-5316

FLANGE NUT,Flg, 3/8"-16

(For Ref 13)

1шт.

g

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

(For Ref 13)

1шт.

h

1336958C1

BOLT,Hex, 1/2" - 13 x 51mm, Gr 5, Full Thd

1шт.

j

86632558

JAM NUT,Jam, 1/2"-13, G5

1шт.
