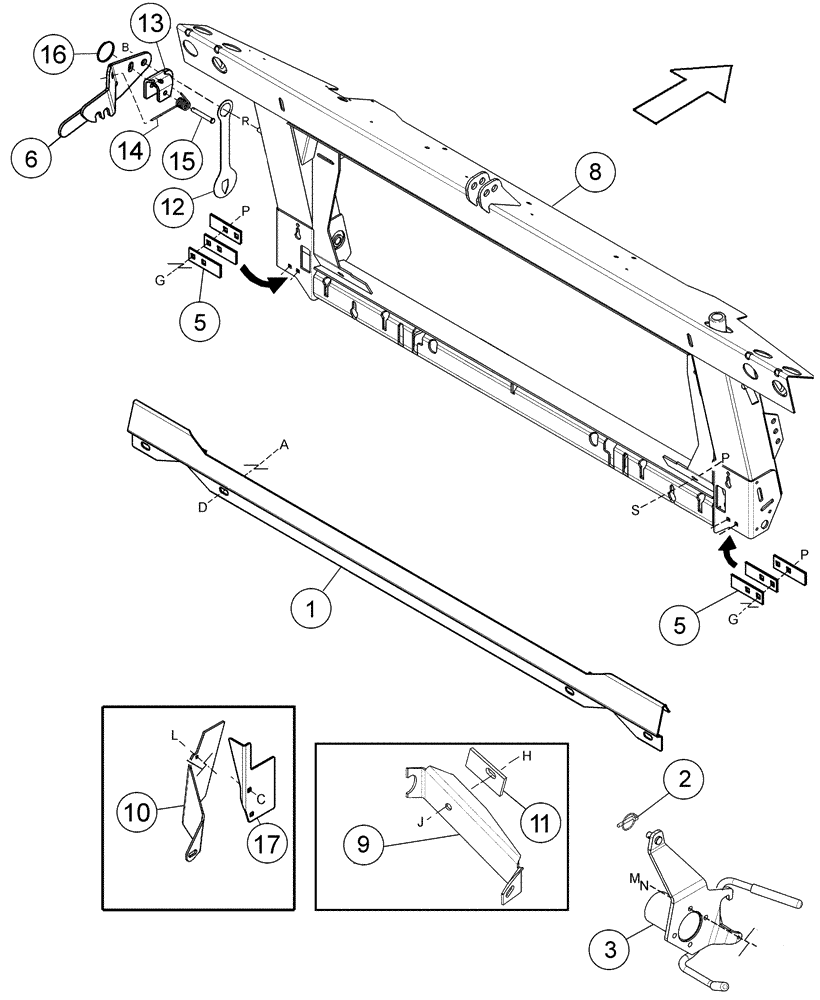

Запчасти Case IH 2062 (09-46) - COMBINE ADAPTER COMPLETION PARTS - CASE AFX, NEW HOLLAND CR/CX COMBINES (03) - CHASSIS/MOUNTED EQUIPMENT

1

87408355

PLATE

Adapter

1шт.

2

341198A1

PIN

Lynch, New Holland CR/CX

1шт.

2

87431901

PIN

Lynch, Case AFX

1шт.

3

87422147

HANDLE

Drive Gear, New Holland CR/CX

1шт.

3

87422129

HANDLE

Drive Gear, Case AFX

1шт.

5

87408717

SHIM

Latch

6шт.

6

87408730

LATCH

1шт.

8

REF

INSTRUCTION

Frame, Adapter

1шт.

See Figure 09 -35

1шт.

9

87409000

ARM

New Holland CR Combine 38 And 45 Inch Decks

1шт.

10

87407650

ARM

New Holland CX Combine 56 Inch Deck

1шт.

11

87422111

SHIM

1шт.

12

87422128

POINTER

Header Angle

1шт.

See Figure 09 -35

1шт.

13

87422397

LATCH

1шт.

14

87428522

TORSION SPRING

1шт.

15

87456668

CLEVIS

1шт.

16

410679A1

SPECIAL RING

Split

1шт.

17

87441909

CLAMP

Torque Arm, New Holland CX Combine 56 Inch Deck

1шт.

a

434-1016

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 1", Gr 5

1шт.

b

129-390

JAM NUT,Jam, 5/8"-11, G5

1шт.

c

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

d

231-53410

FLANGE NUT,Flg, 5/8"-11

1шт.

g

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1шт.

h

231-41412

NUT,3/4"-10, GB

1шт.

j

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

1шт.

l

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

1шт.

m

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

n

892-11012

LOCK WASHER,M12

1шт.

p

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

r

495-11066

WASHER,5/8", SAE

1шт.

s

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1шт.
