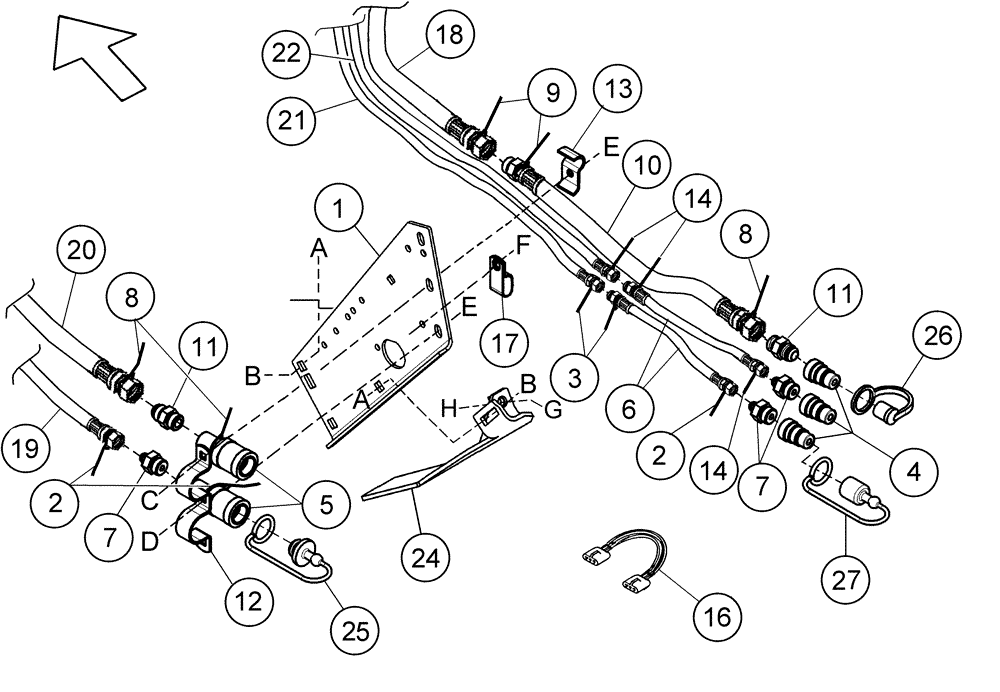

Запчасти Case IH 2062 (09-45) - HEADER COMPLETION PARTS - CASE 2100/2300 SERIES COMBINES (03) - CHASSIS/MOUNTED EQUIPMENT

1

87408797

BRACKET

Hydraulic Coupler Mount

1шт.

2

87407798

FASTENER

Cable Tie, Red

2шт.

3

87407803

FASTENER

Cable Tie, Green

1шт.

4

1272399C2

QUICK MALE COUPLING

Male

2шт.

5

1282338C91

COUPLING, QUICK, FEM

2шт.

6

1327380C1

HOSE

Hydraulic

2шт.

7

352667A1

FITTING

Hydraulic Coupler

2шт.

8

352622A1

FASTENER

Cable Tie, White

2шт.

9

87407797

FASTENER

Cable Tie, Yellow

1шт.

10

87408925

HOSE

Hydraulic

1шт.

11

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

2шт.

12

352634A1

HOLDER

Hose

1шт.

13

1276808C1

CLIP

1шт.

14

1336064C1

CABLE TIE

CABLE STRAP Cable Tie, Black

1шт.

16

338297A1

HARNESS

Wiring

1шт.

17

344825A1

SUPPORT

Wiring

1шт.

18

REF

INSTRUCTION

Hydraulic, Reel Drive, Pressure

1шт.

19

REF

INSTRUCTION

Hydraulic, Fore-Aft, Aft

1шт.

20

REF

INSTRUCTION

Hydraulic, Reel Drive, Return

1шт.

21

REF

INSTRUCTION

Hydraulic, Fore-Aft, Fore

1шт.

22

REF

INSTRUCTION

Hydraulic, Reel Lift

1шт.

23

702093C1

CABLE TIE

CABLE STRAP

12шт.

24

87457981

GUSSET

Coupler Bracket

1шт.

25

370003A1

CAP

Dust, Female, Red

1шт.

26

131610A1

PLUG

Dust, Male, Black

1шт.

27

370004A1

CAP

Dust, Male, Red

1шт.

a

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1шт.

b

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

c

33-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

d

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

1шт.

e

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

f

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

1шт.

g

1336958C1

BOLT,Hex, 1/2" - 13 x 51mm, Gr 5, Full Thd

1шт.

h

86632558

JAM NUT,Jam, 1/2"-13, G5

1шт.
