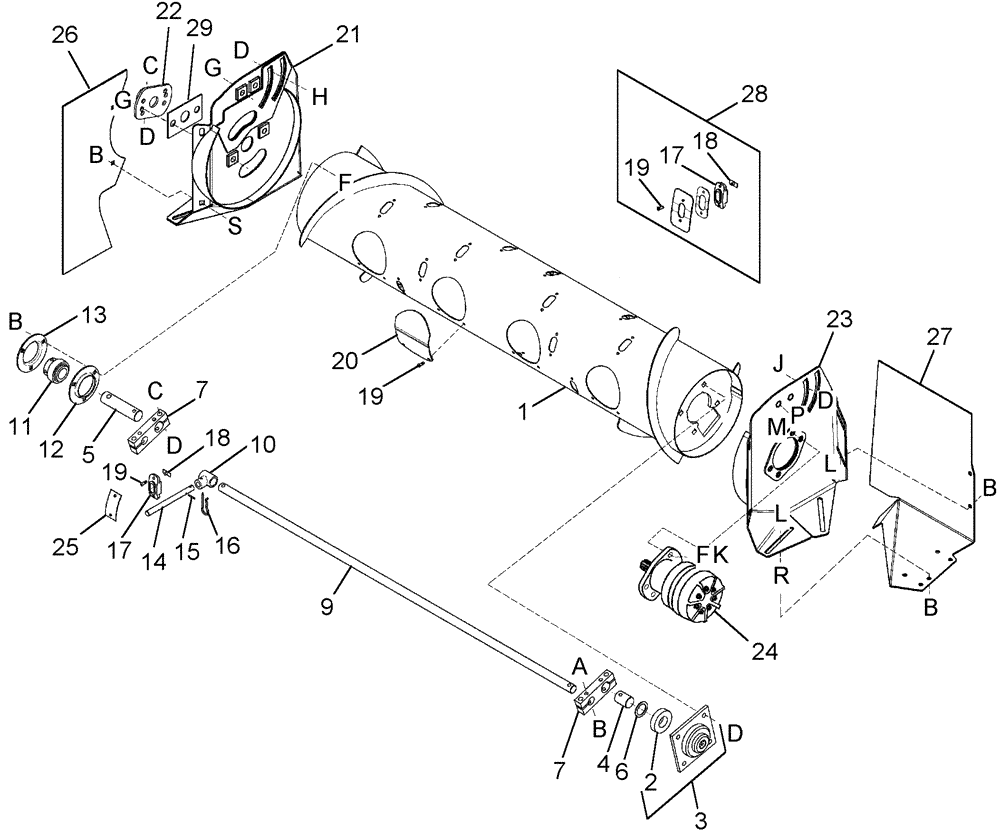

Запчасти Case IH 2062 (09-43) - COMBINE ADAPTER RETRACTING TINE DRUM (03) - CHASSIS/MOUNTED EQUIPMENT

1

87407595

AUGER

Retracting Tine

1шт.

2

410745A1

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

1шт.

3

87422057

SUPPORT ASSY.

Motor Mount, Inc. 2

1шт.

4

410722A1

SHAFT

Left-Hand

1шт.

5

410723A1

SHAFT

Right-Hand

1шт.

6

410839A1

WASHER

1шт.

7

410729A1

BLOCK

Tine Shaft

2шт.

9

410720A1

SHAFT

1шт.

10

410719A1

BUSHING

31шт.

11

126608A1

BALL BEARING,34.92mm ID x 72mm OD x 17mm W

Inc. Lock Collar

1шт.

12

1327467C1

FLANGED BEARING

1шт.

13

1327468C1

FLANGE

Inc. Lube Fitting

1шт.

14

410730A1

TINE

31шт.

15

38-3816

PIN,1/8" x 1", Coiled

31шт.

16

410725A1

PIN, SPLIT (COTTER)

PIN, COTTER

31шт.

17

410718A1

GUIDE

Plastic

31шт.

18

84315756

NUT

1/4 NC

70шт.

19

161-115

HEX SOC SCREW,Btn Hd, 1/4" - 20 x 3/4"

70шт.

20

410724A1

COVER

4шт.

21

87408329

SUPPORT

Right-Hand

1шт.

22

410717A1

PLATE

1шт.

23

87408740

SUPPORT

Left-Hand

1шт.

24

87408746

HYDRAULIC MOTOR

RTD Drive

1шт.

See Figure 09 -36

1шт.

25

450923A1

COVER

Guide, Used At Outboard Locations Where Tine Is Removed

1шт.

26

87422138

DEFLECTOR

Plastic, Front, LH and RH, 38 & 45 Inch Deck

2шт.

26

87408319

DEFLECTOR

Plastic, Front, LH and RH, 56 Inch Deck

2шт.

27

87457988

DEFLECTOR

Plastic, LH Rear, 38 Inch Conveyor

1шт.

27

87457989

DEFLECTOR

Plastic, RH Rear, 38 Inch Conveyor

1шт.

27

87457986

DEFLECTOR

Plastic, LH Rear, 45 Inch Conveyor

1шт.

27

87457987

DEFLECTOR

Plastic, RH Rear, 45 Inch Conveyor

1шт.

27

87457984

MUD DEFLECTOR

Plastic, RH Rear, 56 Inch Conveyor

1шт.

27

87457983

MUD DEFLECTOR

Plastic, RH Rear, 56 Inch Conveyor

1шт.

28

87428521

REPAIR KIT

1шт.

29

410690A1

SHIM

1шт.

a

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

b

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

c

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1шт.

d

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

e

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1шт.

f

86632558

JAM NUT,Jam, 1/2"-13, G5

1шт.

g

360-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1шт.

h

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1шт.

j

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1шт.

k

425-108

NUT,1/2" - 13, Gr 5

1шт.

l

411-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 2

1шт.

m

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

p

409-7812

BOLT,Hex Flg, 1/2" - 13 x 3/4", Spcl

1шт.

r

492-11038

LOCK WASHER,3/8"

1шт.

s

86511946

SCREW,Phillips Drive, Pan HD, 3/8" - 16 x 3/4"

1шт.
