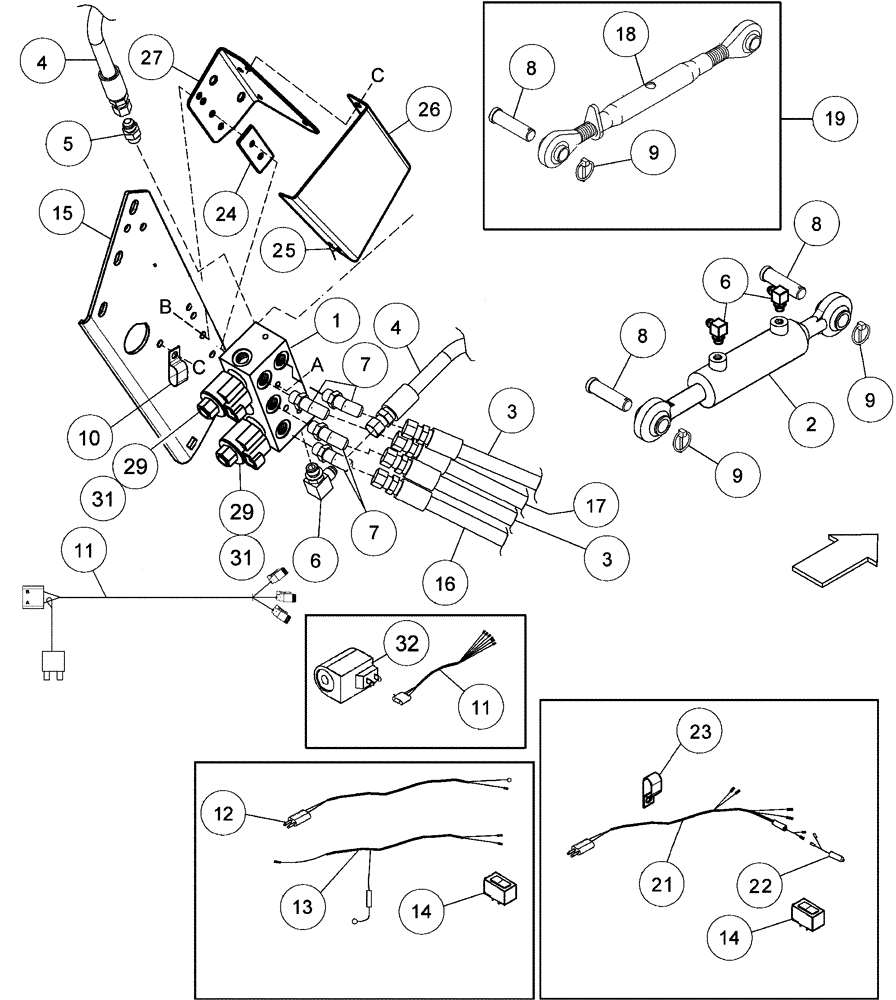

Запчасти Case IH 2062 (09-41) - SELECTOR VALVE AND CENTER LINK (03) - CHASSIS/MOUNTED EQUIPMENT

REF

INSTRUCTION

KIT, HEADER TILT, Complete

1шт.

Case 2300 Series Combines

1шт.

Order 87402785 From Machinery

1шт.

REF

INSTRUCTION

KIT, HEADER TILT, Complete

1шт.

Case AFX, New Holland CR/CX Combines

1шт.

Order 87403025 From Machinery

1шт.

1

87461372

KIT

Selector Valve, Inc. Valve and Harness, Replaces 87407815 with Spade Terminal Connection

1шт.

1

87627803

VALVE

Selector, With Harness Connection

1шт.

87461422

SEAL KIT

For Selector Valve

1шт.

2

410663A1

CYLINDER ASSY.,Double Acting, 30.16mm Rod, 140mm Stroke

Hydraulic, Center Link

1шт.

394522A1

SEAL KIT

Cylinder

1шт.

3

87414735

HOSE

Hydraulic, To Center Link Cylinder

2шт.

4

87408940

HOSE

Hydraulic, To Combine Couplers

2шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

6

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

5шт.

7

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

2шт.

8

87414757

CLEVIS PIN

2шт.

9

341005A1

LINCH PIN

2шт.

10

470375C1

CLAMP,1", Insul, 3/8" Bolt

Wiring

1шт.

11

87408941

HARNESS

Selector Valve to Ref 12 or 21, with Spade Terminal

1шт.

11

87461369

WIRE HARNESS

Selector Valve to Ref 12 or 21, with Harness Connection

1шт.

12

87407605

HARNESS

Wiring, Fore-Aft Header Tilt, From Header to 31 Pin Connector

1шт.

Case 2300 Series Combines

1шт.

13

87407607

HARNESS

Wiring, Fore-Aft Header Tilt, From 31 Pin Connector to Ref 14

1шт.

Case 2300 Series Combines

1шт.

14

87407560

SWITCH

Electrical, Mounted Inside Combine

1шт.

15

REF

INSTRUCTION

SUPPORT, Selector Valve, Refer To Header Completion Package

1шт.

16

REF

INSTRUCTION

HOSE, Hydraulic Reel Fore-Aft, Aft

1шт.

17

REF

INSTRUCTION

HOSE, Hydraulic Reel Fore-Aft, Fore

1шт.

18

338462A1

JOINT ASSY.

Mechanical Center Link

1шт.

19

B2701

PACKAGE

Header Angle Mechanical Adjustment

1шт.

Order From Machinery

1шт.

21

87414732

WIRE HARNESS

Fore-Aft/Header Tilt, From Ref 11 To Combine Cab

1шт.

Case AFX, New Holland CR/CX Combines

1шт.

22

87414733

WIRE HARNESS

Cigar Lighter Adapter

1шт.

Case AFX, New Holland CR/CX Combines

1шт.

23

87414723

CLAMP

Harness

1шт.

Case AFX, New Holland CR/CX Combines

1шт.

24

87446843

SHIM

Selector Valve

1шт.

25

1336064C1

CABLE TIE

CABLE STRAP Cable Tie, Black

1шт.

26

87446891

COVER

Selector Valve

1шт.

27

87446890

COVER

Selector Valve

1шт.

29

87461424

VALVE

2шт.

Used With 87461368 Valve

1шт.

31

87461426

COIL

Valve

2шт.

Used With 87461368 Valve

1шт.

32

87461311

COIL

12V DC DS

3шт.

Used With 87407815 Valve

1шт.

a

413-444

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

1шт.

b

230-4244

LOCK NUT,1/4"-20, GA

1шт.

c

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

1шт.
