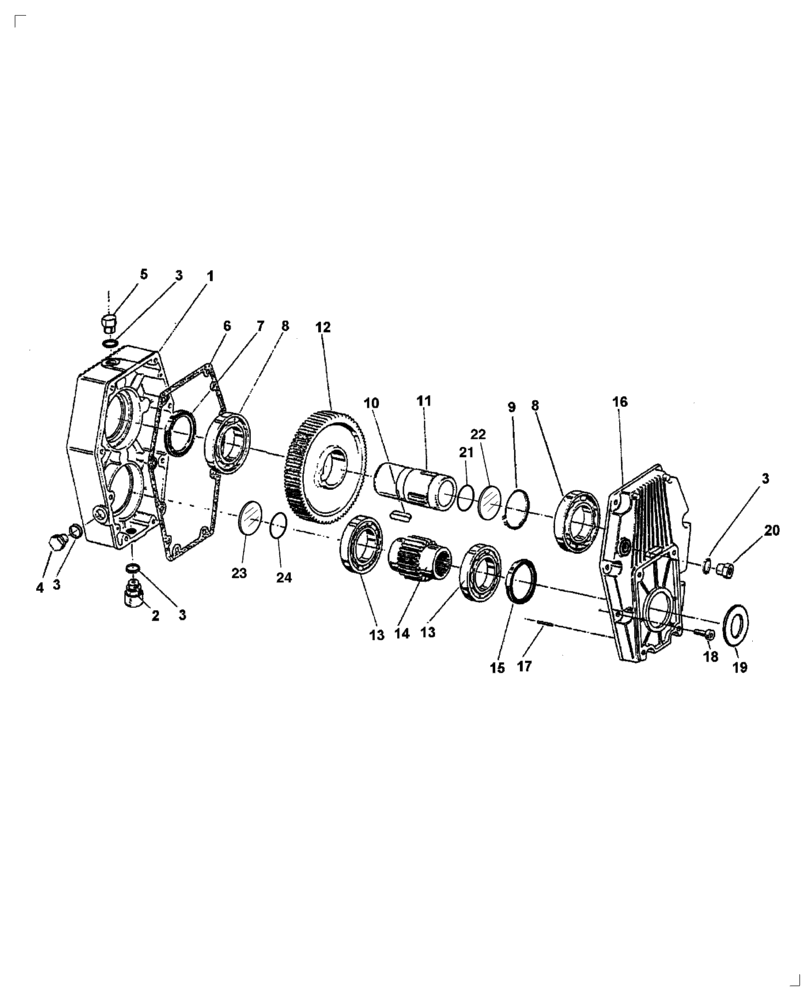

Запчасти Case IH 2062 (09-39) - COMBINE ADAPTER GEARBOX (03) - CHASSIS/MOUNTED EQUIPMENT

87407602

GEARBOX ASSY

Gear, Complete, Case 2100/2300 Series

1шт.

87407602R

REMAN-GEARBOX

Remanufactured Gearbox

1шт.

87407602C

CORE-GEARBOX

Return Number, Gearbox

1шт.

1

87414937

HOUSING

Gear Drive, Inc. 3 (1) and 4 (1)

1шт.

2

87414754

BREATHER

Oil Plug

1шт.

3

87414760

WASHER

Flat

4шт.

4

87414740

PLUG

Oil

1шт.

5

87414741

MAGNETIC PLUG

Oil

1шт.

6

87414742

GASKET

Gear Drive Housing

1шт.

7

87414743

SEAL,50mm ID x 80mm OD x 8mm Thk

Shaft

1шт.

8

349083A1

BALL BEARING,50 mm ID x 80 mm OD x 16 mm

Ball

2шт.

9

87414744

RING

Retaining, External

1шт.

10

87414745

KEY

Shaft

1шт.

11

87414746

SHAFT

Hex Bore

1шт.

12

87414748

GEAR

1шт.

13

349082A1

BALL BEARING,45 mm ID x 75 mm OD x 16 mm

Ball

2шт.

14

87414749

GEAR

1шт.

14

338381A1

SPLINED BUSHING

1шт.

15

87414750

SEAL,45mm ID x 60mm OD x 7mm Thk

Shaft

1шт.

16

87414751

HOUSING

Gear Drive

1шт.

17

87414752

PIN

Housing

1шт.

18

87414761

BOLT,Skt Hd, M8 x 28mm

M8 x 28 mm

8шт.

19

87407843

WASHER

Centering

1шт.

20

87414753

LEVEL GAUGE

Oil, Sight Glass

1шт.

21

84269254

CAP

Plastic

1шт.

22

84269259

O-RING

34.6 x 2.62

1шт.

23

84269257

CAP

Plastic

1шт.

24

84269258

O-RING

29.82 x 2.62, 70 Shore

1шт.
