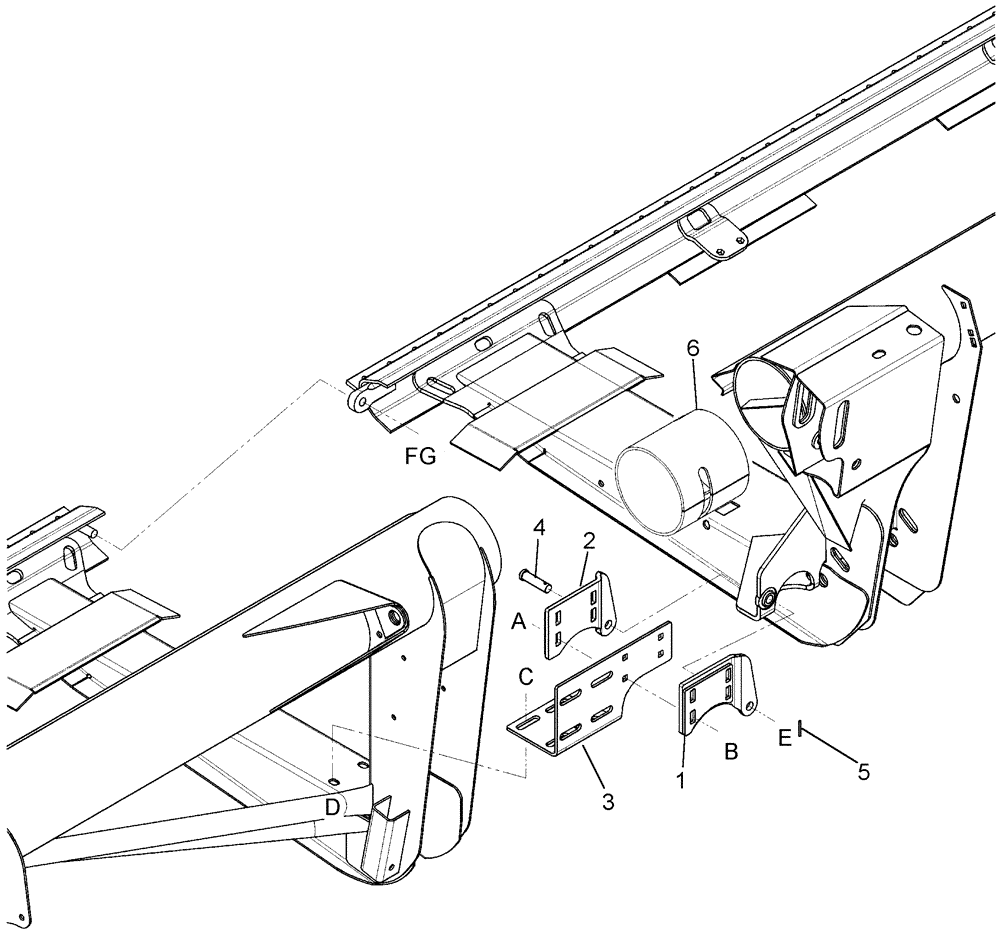

Запчасти Case IH 2062 (09-02) - WING JOINT GROUP (03) - CHASSIS/MOUNTED EQUIPMENT

1

87408758

BRACKET

Wing Joint, Rear Left

1шт.

1

87408764

BRACKET

Wing Joint, Rear Right

1шт.

2

87408759

BRACKET

Wing Joint, Front Left

1шт.

2

87408765

BRACKET

Wing Joint, Front Right

1шт.

3

87407821

BRACKET

Hinge, Left

1шт.

3

87408302

BRACKET

Hinge, Right

1шт.

4

87408349

PIN

Clevis, 3/4 x 2-1/4

2шт.

5

87020817

LOCK PIN,3/16" OD x 1-1/2" L, Slotted

2шт.

6

87422139

RUBBER SEAL

2шт.

a

433-836

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

1шт.

b

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

c

434-1024

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 1 1/2", Gr 5

1шт.

d

231-53410

FLANGE NUT,Flg, 5/8"-11

1шт.

e

495-81042

WASHER,25/32" x 1 1/2" x .120"

1шт.

f

231-41412

NUT,3/4"-10, GB

1шт.

g

425-1012

NUT,3/4"-10, G5

1шт.
