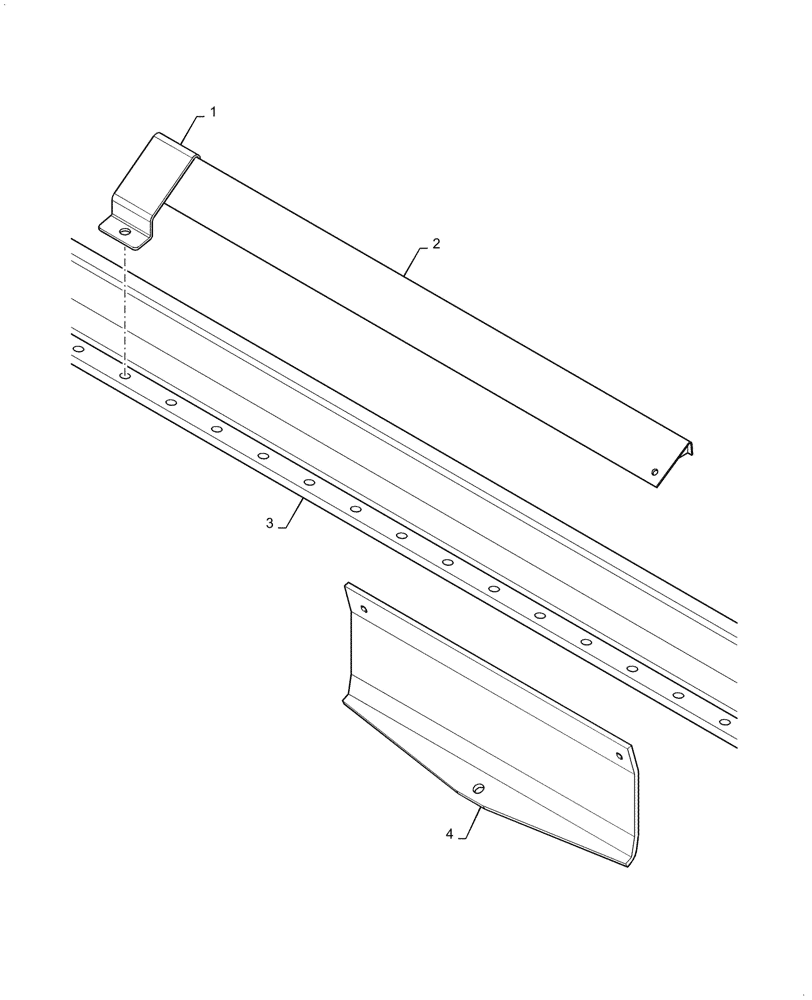

Запчасти Case IH 2062 (09-33) - BEAN SAVER (03) - CHASSIS/MOUNTED EQUIPMENT

REF

INSTRUCTION

Kit, Bean Saver

1шт.

Order Components

1шт.

30.0 Foot Header

1шт.

REF

INSTRUCTION

Kit, Bean Saver

1шт.

Order Components

1шт.

36.0 Foot Header

1шт.

1

87424193

SUPPORT

Bean Saver, Connector

16шт.

30.0 Foot Header

1шт.

1

87424193

SUPPORT

Bean Saver, Connector

21шт.

36.0 Foot Header

1шт.

1

87424194

SUPPORT

Bean Saver, Connector

4шт.

30.0 and 36.0 Foot Header

1шт.

2

87424186

SUPPORT

Bean Saver, Deflector, 533 mm (21 in) Long

1шт.

36.0 Foot Header

1шт.

2

87424188

SUPPORT

Bean Saver, Deflector, 838 mm (33 in) Long

1шт.

36.0 Foot Header

1шт.

2

87424189

SUPPORT

Bean Saver, Deflector, 913 mm (36 in) Long

5шт.

36.0 Foot Header

1шт.

2

87424190

SUPPORT

Bean Saver, Deflector, 947 mm (37-1/4 in) Long

4шт.

30.0 and 36.0 Foot Header

1шт.

2

87424191

SUPPORT

Bean Saver, Deflector, 990 mm (39 in) Long

3шт.

30.0 Foot Header

1шт.

2

87424191

SUPPORT

Bean Saver, Deflector, 990 mm (39 in) Long

1шт.

36.0 Foot Header

1шт.

2

87424192

SUPPORT

Bean Saver, Deflector, 1066 mm (42 in) Long

1шт.

30.0 Foot Header

1шт.

3

REF

INSTRUCTION

CUTTERBAR

1шт.

4

87597512

PAN

Skid Shoe

4шт.
