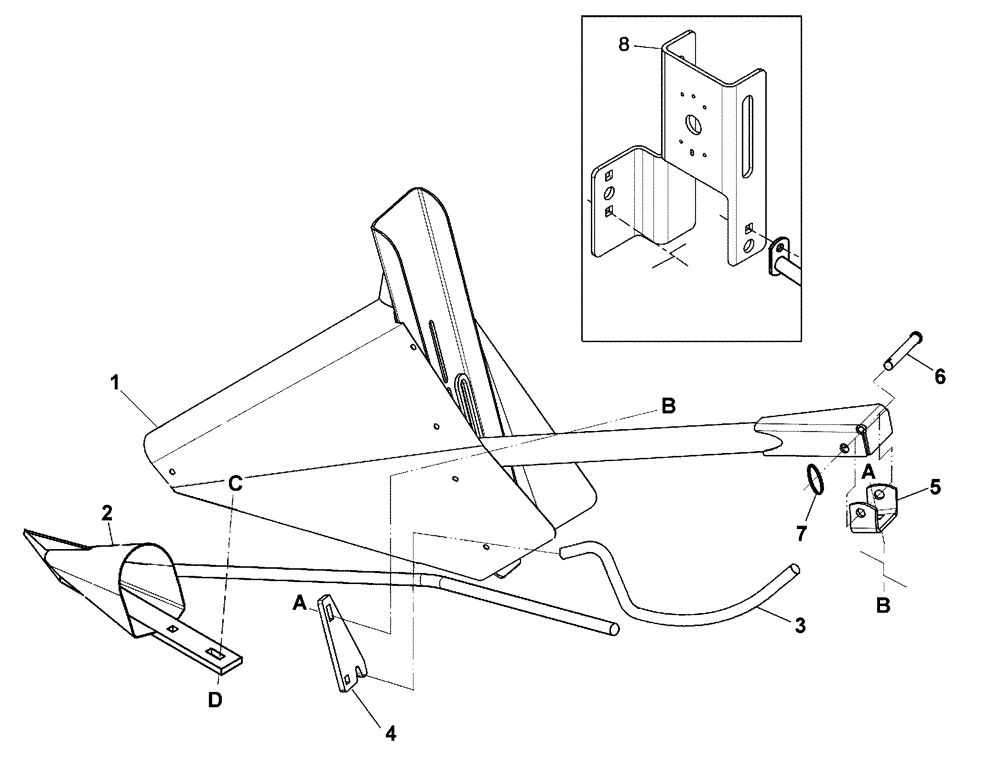

Запчасти Case IH 2062 (09-30) - FLOATING DIVIDERS, EUROPEAN HEADERS (03) - CHASSIS/MOUNTED EQUIPMENT

87407102

DIVIDER Left-Hand

1шт.

87407103

DIVIDER Right-Hand

1шт.

1

370018A1

DIVIDER

Left-Hand

1шт.

1

370021A1

DIVIDER

Right-Hand

1шт.

2

370010A1

DIVIDER

Cone, Left-Hand

1шт.

2

370022A1

DIVIDER

Cone, Right-Hand

1шт.

3

370009A1

ROD

2шт.

4

370019A1

STOP

Height Control

2шт.

5

370020A1

SUPPORT

Rear

2шт.

6

370908A1

PIN

2шт.

7

410679A1

SPECIAL RING

2шт.

8

87460322

SUPPORT

Light, Inc. Reflector, With Slow Speed Transport Option

1шт.

a

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1шт.

b

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

c

33-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

d

231-5146

FLANGE NUT,3/8"-16

1шт.
