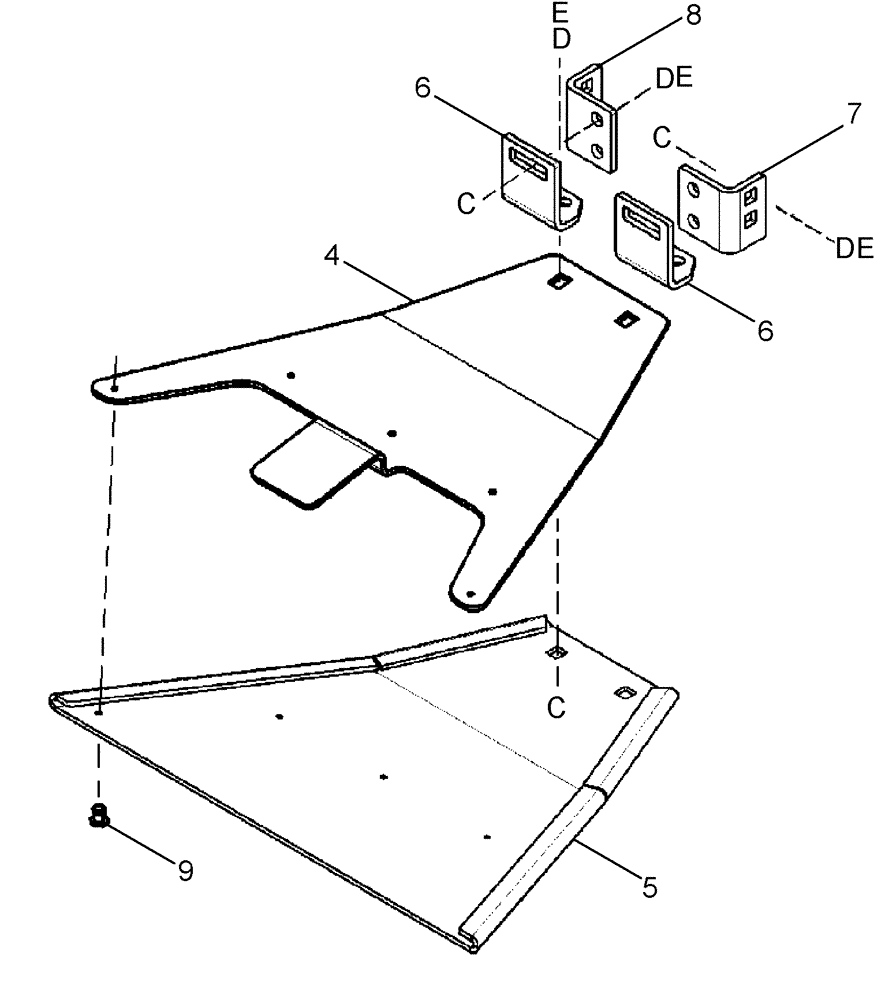

Запчасти Case IH 2062 (09-28) - INNER SKID SHOES - ASN CCC0015328 (03) - CHASSIS/MOUNTED EQUIPMENT

4

87446879

SHOE

4шт.

5

87422082

WEAR STRIP

4шт.

6

87422067

MOUNTING PARTS

8шт.

7

87422070

MOUNTING PARTS

Left

4шт.

8

87428520

ANGLE

Right

4шт.

9

87532227

RIVET,Button, 4.8mm OD x 12.7mm L

20шт.

c

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1шт.

d

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

e

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.
