Запчасти Case IH 2062 (09-01) - MAIN FRAME, LIGHTS AND ATTACHMENTS (03) - CHASSIS/MOUNTED EQUIPMENT

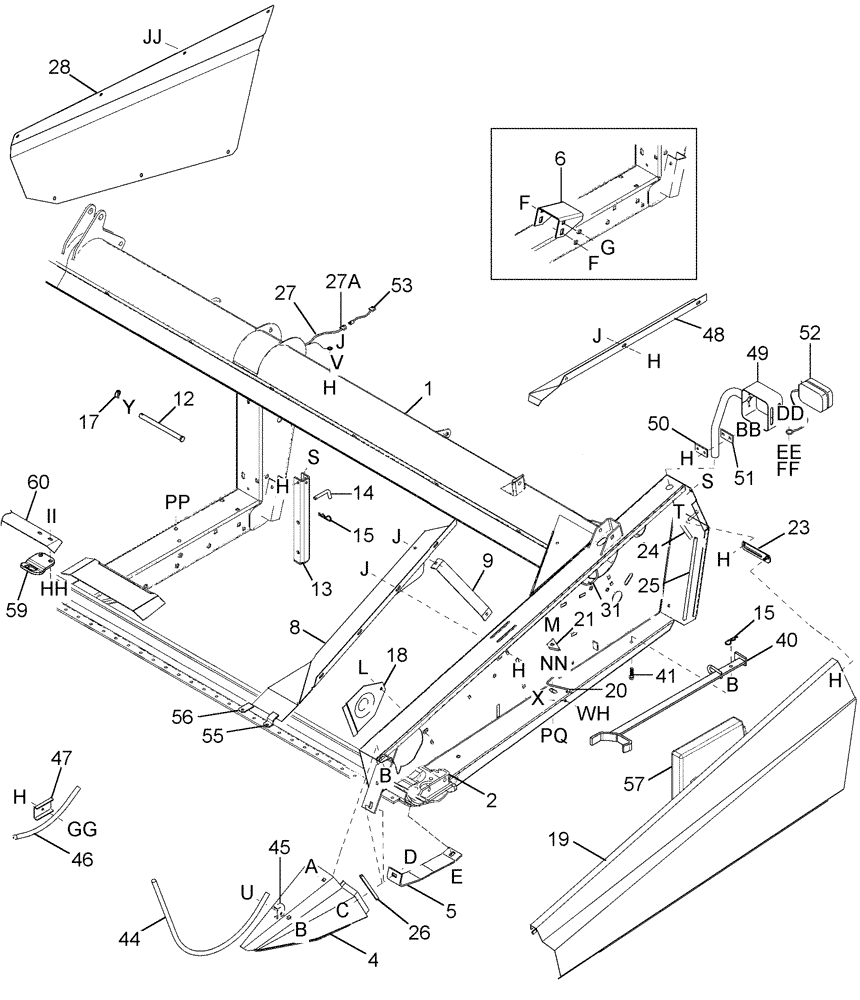

Схема запчастей Case IH 2062 - (09-01) - MAIN FRAME, LIGHTS AND ATTACHMENTS (03) - CHASSIS/MOUNTED EQUIPMENT
18
c
h
n
t
12
57
48
g
g
f
52
j
h
p
h
19
15
f
b
h
j
53
u
e
25
p
2
d
50
j
27
e
q
b
45
46
j
51
20
59
s
9
31
n
28
27a
x
g
l
h
b
1
f
6
15
i
h
41
h
s
40
44
h
5
a
55
e
b
b
17
j
4
j
14
i
f
60
8
v
24
49
26
h
d
56
13
p
m
d
y
21
47
h
w
23
w

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Frame Assy

1шт.

87409005

CUTTERBAR,1300mm L

1300 mm (4-1/3 ft), Service Repair Only

1шт.

2

346069A1

SUPPORT

Gearbox, Single Sickle

1шт.

4

87408983

DIVIDER

Left-Hand, Red

1шт.

4

87408992

DIVIDER

Right-Hand, Red

1шт.

5

346053A1

SHOE

Skid

2шт.

8

395821A1

DEFLECTOR

Left-Hand, Standard

1шт.

8

395822A1

DEFLECTOR

Right-Hand, Standard

1шт.

9

346056A1

SUPPORT

2шт.

12

87457992

PIN

Clevis, 3/4 x 9-1/4

2шт.

13

87446867

CHANNEL

1шт.

14

825980C1

PIN

1шт.

15

591107R1

COTTER PIN

2шт.

17

341198A1

PIN

1шт.

18

338746A1

SHIELD

Gearbox

1шт.

19

87407639

SHIELD

Left-Hand, Red With Case-IH Decals

1шт.

20

346054A1

SPRING

1шт.

21

346055A1

SUPPORT

Spring

1шт.

23

338586A1

BAR

Left-Hand

1шт.

24

346050A1

EDGE

120 mm (4-3/4 in), Upper Rear

1шт.

25

346051A1

EDGE

400 mm (15-3/4 in), Lower Rear

1шт.

26

346052A1

EDGE

200 mm (7-7/8 in)

1шт.

27

345954A1

HARNESS

1шт.

30.0 and 36.0 Foot Header

1шт.

27a

1281491C1

PACKAGE

Electrical Connector, 3-Way, Includes Male and Female Connectors

1шт.

28

87407642

SHIELD

Right-Hand, Red With Case-IH Decals

1шт.

31

1337510C1

CLIP

2шт.

40

443621A1

TOOL ASSY.

1шт.

41

363053A1

BOLT

1шт.

44

345960A1

DIVIDER

1070 mm (42-1/8 in), Rod

2шт.

45

345961A1

CLAMP

2шт.

46

345962A1

DIVIDER

425 mm (16-3/4 in), Rod

2шт.

47

345963A1

CLAMP

Storage

1шт.

48

431152A1

DEFLECTOR

L/H, Approx 3" Wide At Cutterbar

1шт.

48

431153A1

DEFLECTOR

R/H, Approx 3" Wide At Cutterbar

1шт.

49

352626A1

SUPPORT

Light, Amber, Left-Hand

1шт.

352627A1

SUPPORT

Light, Amber, Right-Hand

1шт.

50

352628A1

PLATE

Steel

2шт.

51

352630A1

PLATE

Plastic

2шт.

52

347502A1

LAMP

Amber, Inc. Hardware

2шт.

A41264

BULB,#1156, 12V

2шт.

53

REF

INSTRUCTION

HARNESS, Extension

1шт.

55

395998A1

SEAL RETAINER

Deflector (R/H Side Only) With Stub Guards

1шт.

55

395998A1

SEAL RETAINER

Deflector, L/H Side, With Stub Guards

2шт.

56

87407811

RETAINER

Deflector L/H Side With Stub Guards

1шт.

57

401981A1

BOX

1шт.

59

450921A1

RETAINER

Combine Adapter Feed Pan, Serial Range: Welded-Cutterbar

2шт.

60

87408771

DEFLECTOR

2шт.

a

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1шт.

b

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

c

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1шт.

d

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

e

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

1шт.

f

231-53410

FLANGE NUT,Flg, 5/8"-11

1шт.

g

48083224

BOLT

1шт.

h

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

j

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

1шт.

l

409-768

BOLT,Hex Flg, 3/8" - 16 x 1/2", Spcl

1шт.

m

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

1шт.

n

492-11062

BEARING WASHER,5/8"

1шт.

p

495-11066

WASHER,5/8", SAE

1шт.

q

231-41410

NUT,5/8"-11, GB

1шт.

r

492-11038

LOCK WASHER,3/8"

1шт.

s

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

t

231-4146

NUT,3/8"-16, GB

1шт.

u

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1шт.

v

493-21039

LOCK WASHER,Int Tooth, 3/8"

1шт.

w

425-106

NUT,3/8"-16, Cl 5

1шт.

x

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

y

495-81042

WASHER,25/32" x 1 1/2" x .120"

1шт.

z

434-1024

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 1 1/2", Gr 5

1шт.

bb

433-640

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

1шт.

dd

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1шт.

ee

493-41026

LOCK WASHER,Ext Tooth, 1/4"

1шт.

ff

230-4244

LOCK NUT,1/4"-20, GA

1шт.

gg

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

1шт.

hh

231-5146

FLANGE NUT,3/8"-16

1шт.

ii

358047A1

SCREW,Torx, Truss HD, 3/8" - 16 x 1/2", Gr 5

Truss Head Torx, 3/8 x 1/2

1шт.

jj

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

1шт.

kk

433-848

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

1шт.

mm

87446842

WASHER

Flat, 13.5 mm ID x 47 mm OD

1шт.

nn

231-1448

NUT,1/2"-13, GB

1шт.

pp

86511946

SCREW,Phillips Drive, Pan HD, 3/8" - 16 x 3/4"

1шт.

Выбрано товаров: 83
