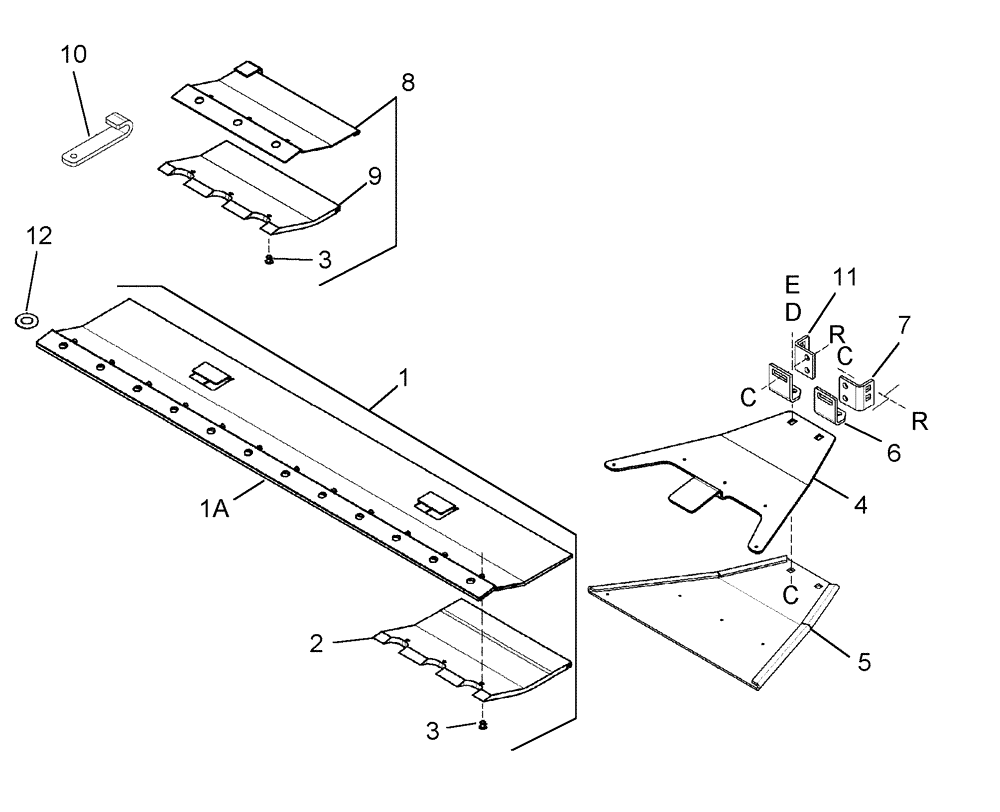

Запчасти Case IH 2062 (09-26) - CUTTERBAR POLY AND INNER SHOES - BSN CCC0015328 (03) - CHASSIS/MOUNTED EQUIPMENT

1

87422102

BAR PLATE

Inc. 4 of Ref 2 (9 in), 912 mm Long, 2 Tab

1шт.

1

87422103

BAR PLATE

Inc. 4 of Ref 2 (9 in), 912 mm Long, 3 Tab

1шт.

30.0 Foot Header

1шт.

1

87422103

BAR PLATE

Inc. 4 of Ref 2 (9 in), 912 mm Long, 3 Tab

1шт.

36.0 Foot Header

1шт.

1

87422107

BAR PLATE

Inc. 3 of Ref 2 (9 in), 684 mm Long

5шт.

30.0 Foot Header

1шт.

1

87422107

BAR PLATE

Inc. 3 of Ref 2 (9 in), 684 mm Long

7шт.

36.0 Foot Header

1шт.

1

87422108

BAR PLATE

Inc. 2 of Ref 2 (6 in), 303 mm Long

4шт.

30.0 Foot Header

1шт.

1

87422116

BAR PLATE

Inc. 1 of Ref 2 (6 in), 150 mm Long

1шт.

30.0 Foot Header

1шт.

1

87422116

BAR PLATE

Inc. 1 of Ref 2 (6 in), 150 mm Long

2шт.

36.0 Foot Header

1шт.

1

87422132

BAR PLATE

Inc. 2 of Ref 2 (9 in), 455 mm Long

3шт.

30.0 Foot Header

1шт.

1

87422132

BAR PLATE

Inc. 2 of Ref 2 (9 in), 455 mm Long

6шт.

36.0 Foot Header

1шт.

1

87422100

BAR PLATE

Inc. 4 of Ref 2 (9 in), 912 mm Long, 2 Tabs and Notched Steel

1шт.

1a

NSS

NOT SOLD SEPARAT

Bar

1шт.

2

87422109

BAR PLATE

Poly, 9 in, (Shown)

33шт.

30.0 Foot Header

1шт.

2

87422109

BAR PLATE

Poly, 9 in, (Shown)

45шт.

36.0 Foot Header

1шт.

2

87422113

BAR PLATE

Poly, 6 in

9шт.

30.0 Foot Header

1шт.

2

87422113

BAR PLATE

Poly, 6 in

2шт.

36.0 Foot Header

1шт.

3

87532227

RIVET,Button, 4.8mm OD x 12.7mm L

Pop, Install From Bottom

150шт.

30.0 Foot Header

1шт.

3

87532227

RIVET,Button, 4.8mm OD x 12.7mm L

Pop, Install From Bottom

172шт.

36.0 Foot Header

1шт.

4

87446879

SHOE

Skid, Standard, Replaces 87408749

6шт.

5

87422082

WEAR STRIP

Poly Skid, Standard

6шт.

30.0 and 36.0 Foot Header

1шт.

6

87422067

MOUNTING PARTS

Skid, Shoe

12шт.

30.0 and 36.0 Foot Header

1шт.

7

87422070

MOUNTING PARTS

Skid, Shoe, Left

6шт.

30.0 and 36.0 Foot Header

1шт.

8

87422105

BAR PLATE

226 mm (8-57/64 in), Inc. Ref. 3 and 9

1шт.

9

87422073

BAR PLATE

Poly, 9 in, Cropped Back

1шт.

10

87423174

RETAINER

1шт.

11

87428520

ANGLE

Skid Shoe, Right

6шт.

30.0 and 36.0 Foot Header

1шт.

12

495-11047

WASHER,7/16", SAE

Used at First Guard Bolt Each End

2шт.

36.0 Foot Header

1шт.

c

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1шт.

d

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

e

425-108

NUT,1/2" - 13, Gr 5

1шт.

r

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.
