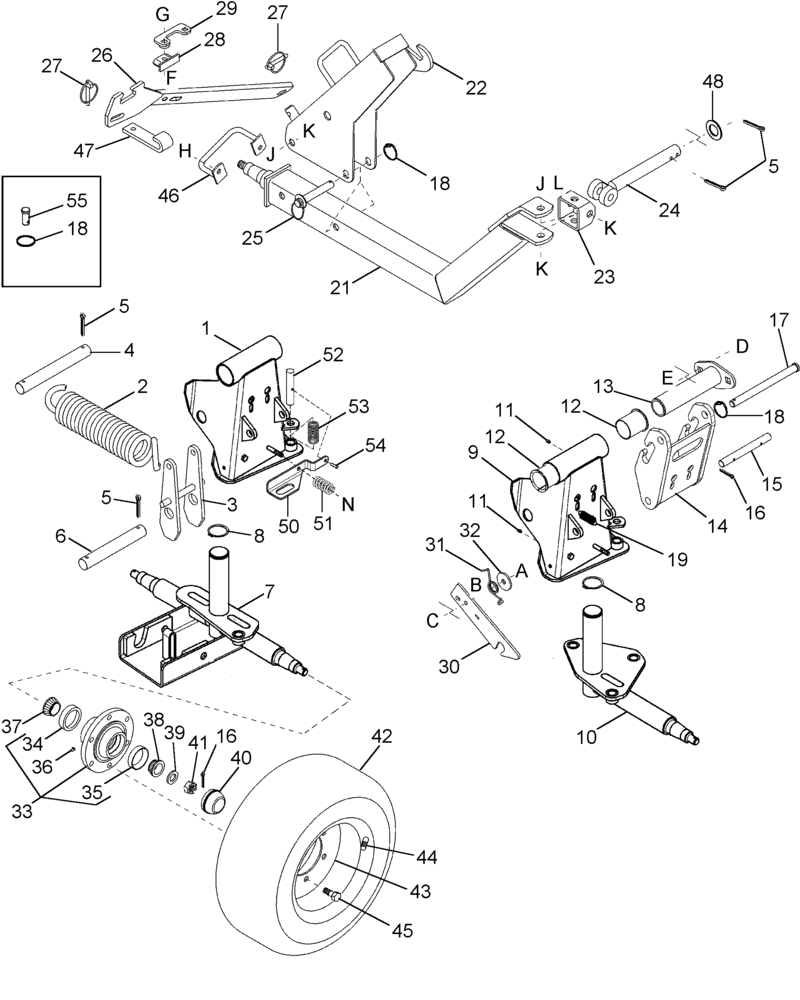

Запчасти Case IH 2062 (09-24) - TRANSPORT OPTION WHEELS AND SUPPORTS (03) - CHASSIS/MOUNTED EQUIPMENT

1

410673A1

SUPPORT

1шт.

2

126629A1

SPRING

2шт.

3

362458A1

LINK

Rear Spring

2шт.

4

344632A1

PIN

Front Spring, Left Hand Wheel

1шт.

5

32-1632

COTTER PIN,1/4" x 2"

8шт.

6

362480A1

PIN

Rear Spring

2шт.

7

410677A1

SPINDLE

Left Hand Dual

1шт.

8

103-11200

SNAP RING,#200, Ext

2шт.

9

410673A1

SUPPORT

1шт.

10

410675A1

SPINDLE

Right Hand Single

1шт.

11

219-8

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

12

1969215C1

BUSHING,51.2mm ID x 55.3mm OD x 62mm L

4шт.

13

345938A1

TUBE,208 mm Length

Pivot

2шт.

14

381464A1

CHANNEL

Link

2шт.

15

381148A1

PIN

3/4 x 6-29/32

2шт.

16

32-1220

COTTER PIN,3/16" x 1 1/4"

5шт.

17

87457992

PIN

Clevis 3/4 x 9-1/4

2шт.

18

410679A1

SPECIAL RING

4шт.

19

347523A1

SPRING

4шт.

21

347550A1

SUPPORT

Right Hand Trans-Axle

1шт.

22

362466A1

SUPPORT

Strut, Inc. Decals

1шт.

23

362476A1

TUBE,60 mm Length

Pivot

1шт.

24

381143A1

PIVOT

Right Hand, Front

1шт.

25

362462A1

PIN

1шт.

26

347481A1

SUPPORT

1шт.

27

362443A1

PIN

2шт.

28

362453A1

LUG

1шт.

29

362468A1

RETAINER

Anchor, Used When Guards Are Above Cutterbar

1шт.

30

347494A1

LATCH

Right Hand Front, Storage

1шт.

31

347507A1

TORSION SPRING

1шт.

32

10752K

WASHER

1шт.

33

346201A1

HUB

Inc. 34,35, Inc. Grease Fitting Ref 36

4шт.

34

478793R1

BEARING CUP

Inner

4шт.

35

651817R1

BEARING CUP

Outer

4шт.

35

651817R1GV

BEARING CUP

Value, Bearing Cup

4шт.

36

219-14

LUBE NIPPLE,1/4" NPTF

(For CTD Hub)

4шт.

36

219-1

LUBE NIPPLE,1/8" - 27 NPTF

(For Armstrong Hub)

4шт.

37

96173C1

BEARING ASSY,38.1mm ID x 25.4mm W

Inner, Inc. Seal

4шт.

38

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

Outer, Inc. Seal

4шт.

39

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

4шт.

40

820166C1

CAP

4шт.

41

425-1312

SLOTTED NUT,3/4"-16, G5

4шт.

42

345935A1

TYRE/TIRE

4шт.

43

345936A1

RIM

WHEEL 6.00 x 10

4шт.

44

387841R91

VALVE

4шт.

45

347024A1

WHEEL BOLT

9/16 NF x 1-1/4

22шт.

46

347489A1

HANDLE

Right Hand Front

1шт.

47

347565A1

RETAINER

1шт.

48

87020814

WASHER,33mm ID x 56mm OD x 4mm Thk

1шт.

50

410681A1

LEVER ASSY.

2шт.

51

825994C1

SPRING

2шт.

52

410674A1

HEADED PIN

2шт.

53

410676A1

SPRING

2шт.

54

38-12032

LOCK PIN,5/16" x 2", Slotted

2шт.

55

1281385C1

PIN

Clevis

1шт.

a

363092A1

BOLT

1/2 X 1-3/4

1шт.

b

425-108

NUT,1/2" - 13, Gr 5

1шт.

c

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

d

433-1020

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 1/4", Gr 5

1шт.

e

231-53410

FLANGE NUT,Flg, 5/8"-11

1шт.

f

326-748

BOLT,Hex, 7/16" - 14 x 3", Gr 8

1шт.

f

362459A1

BOLT

7/16 x 2-1/4;8, Used When Guards Are Below Cutterbar, Head Down

1шт.

f

362459A1

BOLT

7/16 x 2-1/4;8, Transaxle Outboard of Header Leg, Used When Guards Are Above Cutterbar, Head Up

1шт.

f

326-748

BOLT,Hex, 7/16" - 14 x 3", Gr 8

Transaxle Inboard of Header Leg, Used when Guards are above Cutterbar, Head Down

1шт.

g

231-4117

LOCK NUT,7/16"-14, GB

1шт.

h

362461A1

BOLT

9/16 x 1-1/2

1шт.

j

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

1шт.

k

231-41412

NUT,3/4"-10, GB

1шт.

l

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

1шт.

n

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.
