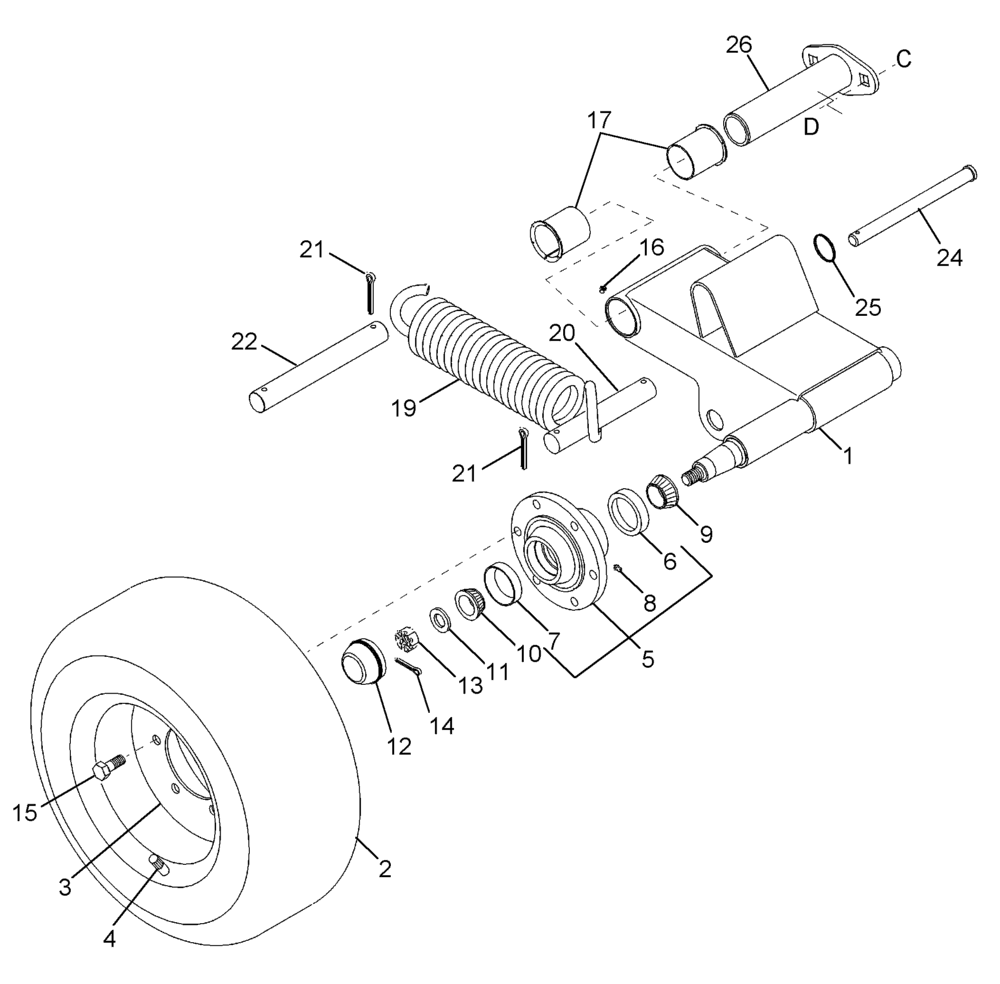

Запчасти Case IH 2062 (09-23) - GAUGE WHEEL (03) - CHASSIS/MOUNTED EQUIPMENT

REF

INSTRUCTION

KIT, GAUGE WHEELS

1шт.

Order 87402815 From Machinery

1шт.

1

345933A1

ARM

Left-Hand, Shown

1шт.

1

345934A1

ARM

Right-Hand

1шт.

2

345935A1

TYRE/TIRE

2шт.

3

345936A1

RIM

WHEEL 6.00 x 10

2шт.

4

387841R91

VALVE

2шт.

5

346201A1

HUB

Inc. 6, 7, Inc. Grease Fitting

2шт.

6

478793R1

BEARING CUP

Inner

2шт.

7

651817R1

BEARING CUP

Outer

2шт.

7

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

8

219-14

LUBE NIPPLE,1/4" NPTF

2шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

9

96173C1

BEARING ASSY,38.1mm ID x 25.4mm W

Inc. Seal, Inner

2шт.

10

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

Inc. Seal, Outer

2шт.

11

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

2шт.

12

820166C1

CAP

2шт.

13

425-1312

SLOTTED NUT,3/4"-16, G5

2шт.

14

32-1220

COTTER PIN,3/16" x 1 1/4"

2шт.

15

347024A1

WHEEL BOLT

9/16 NF x 1-1/4

12шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

17

1969215C1

BUSHING,51.2mm ID x 55.3mm OD x 62mm L

4шт.

19

126629A1

SPRING

2шт.

20

345937A1

PIN

2шт.

21

32-1632

COTTER PIN,1/4" x 2"

8шт.

22

344632A1

PIN

2шт.

24

87457992

PIN

Clevis 3/4 x 9-1/4

2шт.

25

410679A1

SPECIAL RING

2шт.

26

345938A1

TUBE,208 mm Length

Pivot

2шт.

a

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

b

231-4118

LOCK NUT,1/2"-13, GB

1шт.

c

433-1020

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 1/4", Gr 5

1шт.

d

231-53410

FLANGE NUT,Flg, 5/8"-11

1шт.
