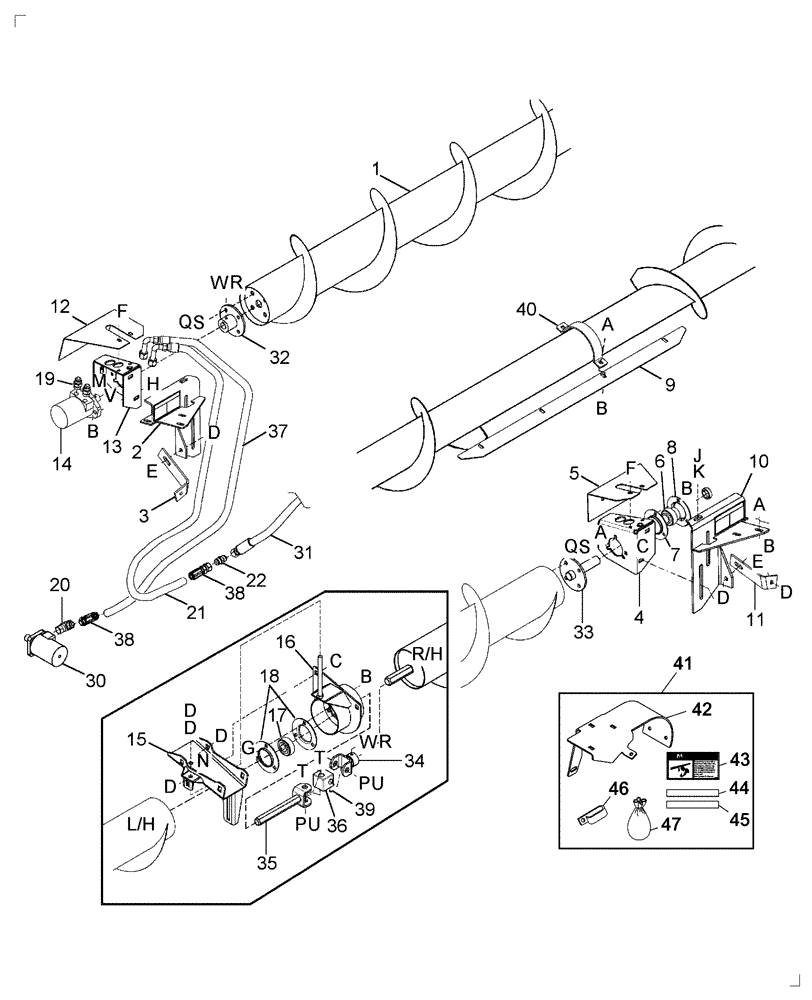

Запчасти Case IH 2062 (09-21) - UPPER CROSS AUGER OPTION (03) - CHASSIS/MOUNTED EQUIPMENT
№
Артикул
Название
Примечание
Количество
REF
INSTRUCTION
KIT, UPPER CROSS AUGER
1шт.
Order 87402774 From Machinery
1шт.
30.0 Foot Header
1шт.
REF
INSTRUCTION
KIT, UPPER CROSS AUGER
1шт.
Order 87402775 From Machinery
1шт.
36.0 Foot Header
1шт.
1
87408820
AUGER
Right, Upper Cross
1шт.
30.0 Foot Header
1шт.
1
87408821
AUGER
Left, Upper Cross
1шт.
30.0 Foot Header
1шт.
1
87422354
AUGER
Left, Upper Cross
1шт.
36.0 Foot Header
1шт.
1
87422355
AUGER
Right, Upper Cross
1шт.
36.0 Foot Header
1шт.
2
87422398
SUPPORT
LH, Inc. Decal
1шт.
3
429300A1
BRACE
Left-Hand Support
1шт.
4
87408837
SUPPORT
Auger Bearing, Outer
1шт.
5
87408839
BEARING COVER
Bearing
1шт.
6
557117R11
COLLAR
1шт.
7
428426A1
FLANGE
1шт.
8
428425A1
FLANGED BEARING
1шт.
9
87408822
BAR
Beater
4шт.
30.0 and 36.0 Foot Header
1шт.
10
87422399
SUPPORT
RH, Inc. Decal
1шт.
11
429291A1
BRACE
RH Support
1шт.
12
87408838
SHIELD
Motor
1шт.
13
87408836
SUPPORT
Auger Motor End
1шт.
14
87408923
HYDRAULIC MOTOR
1шт.
47471
WOODRUFF KEY,#15, 1/4" x 1", HT
1шт.
87407627
SEAL KIT
1шт.
15
87408823
SUPPORT
Center
1шт.
30.0 and 36.0 Foot Header
1шт.
16
87408825
SUPPORT
Center Bearing
1шт.
30.0 and 36.0 Foot Header
1шт.
17
87408830
BALL BEARING,25.4mm Hex x 62mm OD x 24mm W
2шт.
30.0 and 36.0 Foot Header
1шт.
18
87407791
FLANGE
2шт.
30.0 and 36.0 Foot Header
1шт.
19
218-5062
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
1шт.
20
182977
90 ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw
1шт.
21
87422352
HOSE ASSY.
2шт.
22
218-435
HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male JIC
1шт.
30
392739A1
HYDRAULIC MOTOR
Left Draper Drive
1шт.
See Figure 09 -04
1шт.
31
REF
INSTRUCTION
HOSE, Hydraulic
1шт.
See Figure 09 -04
1шт.
32
87422358
HUB
LH Mount End
1шт.
33
87422359
SHAFT
RH Mount End
1шт.
34
87422361
YOKE
Flex Coupling
1шт.
30.0 and 36.0 Foot Header
1шт.
35
87422362
YOKE
Hex Shaft And Yoke
1шт.
30.0 and 36.0 Foot Header
1шт.
36
388527A1
BLOCK
Knuckle
1шт.
30.0 and 36.0 Foot Header
1шт.
Replace Installed Grease Fitting With Ref 39
1шт.
37
87422353
HOSE
Hydraulic
1шт.
38
87422351
FITTING
Hydraulic, Hose End, Female, Re-usable
2шт.
39
219-8
LUBE NIPPLE,1/4" - 28 NPTF
1шт.
30.0 and 36.0 Foot Header
1шт.
40
87459409
CLAMP
Clamp, Beater Bar
10шт.
30.0 and 36.0 Foot Header
1шт.
41
84217625
KIT
Model 2162, 30 Ft Auger Mounting Parts, Ref 42 To 47
1шт.
42
84124646
BRACKET
LH, Upper Auger
1шт.
42
84124647
BRACKET
RH, Upper Auger
1шт.
43
126684A2
DECAL
Reel Hazard
1шт.
44
352668A1
REFLECTOR
Flourescent, Red Orange
1шт.
45
86547781
REFLECTOR,RED
Reflector Red
1шт.
46
338322A1
CLIP
Hose, 15/16" Insulated
5шт.
47
NSS
NOT SOLD SEPARAT
Bag Of Fasteners, Ref X, Y, Z & AA
1шт.
a
33-616
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5
1шт.
c
434-816
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5
1шт.
d
231-5348
FLANGE NUT,Flg, 1/2"-13
1шт.
e
413-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5
1шт.
f
409-768
BOLT,Hex Flg, 3/8" - 16 x 1/2", Spcl
1шт.
g
434-612
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5
1шт.
h
434-620
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5
1шт.
j
429449A1
SPECIAL BOLT
1/2 x 6-1/2
1шт.
k
495-11053
WASHER,1/2", SAE
1шт.
m
485-13816
SET SCREW,Sq Hd, 3/8"-16 x 1"
1шт.
n
434-820
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5
1шт.
p
495-81042
WASHER,25/32" x 1 1/2" x .120"
1шт.
q
80679
LOCK WASHER,1/20.507 CST ZND
1шт.
r
483-13816
SET SCREW,Hex Soc, 3/8"-16 x 1"
1шт.
s
413-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5
1шт.
t
413-1256
BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5
1шт.
u
231-42412
NUT,3/4"-10, GB
1шт.
v
495-11047
WASHER,7/16", SAE
1шт.
w
86509499
JAM NUT,3/8"-16, G2
1шт.
x
281-54812
SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 3/4"
1шт.
y
9706726
BOLT,Hex Flg, 3/8" - 16 x 1"
1шт.
z
247780
SERRATED NUT,Flg, USR, 3/8"-16
1шт.
aa
87034819
SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"
1шт.
Выбрано товаров: 93
