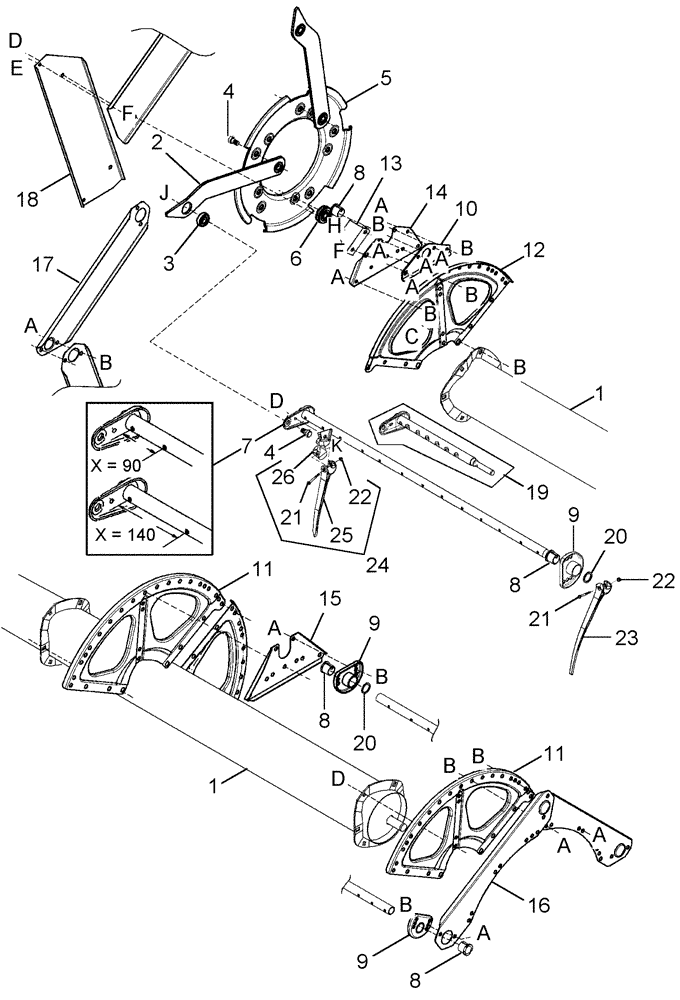

Запчасти Case IH 2062 (09-18) - PICKUP REEL, 30.0 AND 36.0 FOOT HEADERS (03) - CHASSIS/MOUNTED EQUIPMENT

1

345867A1

TUBE

Center, Split Reel Left-hand

1шт.

30.0 Foot Header

1шт.

1

345879A1

TUBE,4198 mm Length

Center, Split Reel Right-hand

1шт.

30.0 Foot Header

1шт.

1

372318A1

TUBE,5018 mm Length

Center, Split Reel Left-hand

1шт.

36.0 Foot Header

1шт.

1

372319A1

TUBE,5412 mm Length

Center, Split Reel Right-hand

1шт.

36.0 Foot Header

1шт.

2

344796A1

ARM

Inc. 3 (2)

10шт.

3

344806A1

BALL BEARING,17 mm ID x 40 mm OD x 12 mm

20шт.

4

347305A1

LOCK BOLT

20шт.

When Replacing Bolt, Item 4, Also Replace Item J, Nut 129-391

1шт.

5

344798A1

RING

Cam, RH End of Both Sides of Reel

2шт.

6

344805A1

BALL BEARING,15.9 mm ID x 50.81 mm OD x 15 mm

10шт.

7

345889A1

TUBE

Pickup Finger, Outboard Stagger (X=90 mm)

6шт.

30.0 Foot Header

1шт.

7

347520A1

TUBE

Pickup Finger, Outboard Stagger (X=90 mm), Left Hand Reel

3шт.

36.0 Foot Header

1шт.

7

347522A1

TUBE

Pickup Finger, Outboard Stagger (X=90 mm), Right Hand Reel

3шт.

36.0 Foot Header

1шт.

7

345916A1

TUBE

Pickup Finger, Inboard Stagger (X=140 mm)

4шт.

30.0 Foot Header

1шт.

7

347521A1

TUBE

Pickup Finger, Inboard Stagger (X=140 mm), Left Hand Reel

2шт.

36.0 Foot Header

1шт.

7

105164A1

TUBE

Pickup Finger, Inboard Stagger (X=140 mm), Right Hand Reel

2шт.

36.0 Foot Header

1шт.

8

345853A1

BUSHING,31.75mm ID x 45mm OD x 34mm L

45шт.

30.0 Foot Header

1шт.

8

345853A1

BUSHING,31.75mm ID x 45mm OD x 34mm L

50шт.

36.0 Foot Header

1шт.

9

345878A1

HOUSING

Bushing

35шт.

30.0 Foot Header

1шт.

9

345878A1

HOUSING

Bushing

40шт.

36.0 Foot Header

1шт.

10

345857A1

HOUSING

Bushing, Cam End

10шт.

11

87407586

SHIELD

1/3 Sector, Tail End and Mid Span

12шт.

30.0 Foot Header

1шт.

11

87407586

SHIELD

1/3 Sector, Tail End and Mid Span

15шт.

36.0 Foot Header

1шт.

12

87407587

SHIELD

1/3 Sector, Cam End

6шт.

13

345876A1

SUPPORT

Endshield

10шт.

14

87407567

SUPPORT

Bushing, Cam Ends

10шт.

15

87407568

SUPPORT

Bushing Housing

20шт.

30.0 Foot Header

1шт.

15

87407568

SUPPORT

Bushing Housing

25шт.

36.0 Foot Header

1шт.

16

87407569

SHIELD

LH Reel

5шт.

17

87407570

SUPPORT

RH Reel, Center

5шт.

18

87407584

SHIELD

LH and RH Cam End

10шт.

19

410833A1

KIT

Repair Kit, With Plastic Fingers

1шт.

20

347528A1

WASHER

With Plastic Fingers

35шт.

30.0 Foot Header

1шт.

20

347528A1

WASHER

With Plastic Fingers

40шт.

36.0 Foot Header

1шт.

21

463-31028

SCREW,Hex Wash Hd, #10-24 x 1 3/4"

With Plastic Finger Reel

448шт.

30.0 Foot Header

1шт.

21

463-31028

SCREW,Hex Wash Hd, #10-24 x 1 3/4"

With Plastic Finger Reel

525шт.

36.0 Foot Header

1шт.

22

231-14409

NUT,#10-24, GB

With Plastic Finger Reel

448шт.

30.0 Foot Header

1шт.

22

231-14409

NUT,#10-24, GB

With Plastic Finger Reel

525шт.

36.0 Foot Header

1шт.

23

381139A1

TINE

Plastic, With Plastic Finger Reel, Replaces 87422037

438шт.

30.0 Foot Header

1шт.

23

381139A1

TINE

Plastic, With Plastic Finger Reel, Replaces 87422037

515шт.

36.0 Foot Header

1шт.

24

444557A1

FINGER

Assembly, Inc. 1 Each Of 21, 22, 25, 26, D And K

10шт.

25

444558A1

FINGER

Plastic, End, With Split Pick-up Reel, With Plastic Fingers

10шт.

26

NSS

NOT SOLD SEPARAT

Support, End Finger, Not Serviced, Order Ref. 24

1шт.

a

358045A1

SCREW,Torx, Truss HD, 1/2" - 13 x 3/4", Gr 5

1/2 NC x 3/4

1шт.

b

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

c

358046A1

SCREW,Torx, Truss HD, 1/2" - 13 x 1", Gr 5

1/2 NC x 1

1шт.

d

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

1шт.

e

358047A1

SCREW,Torx, Truss HD, 3/8" - 16 x 1/2", Gr 5

Truss Head Torx, 3/8 x 1/2

1шт.

f

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

g

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

1шт.

h

129-390

JAM NUT,Jam, 5/8"-11, G5

1шт.

j

129-391

JAM NUT,Jam, 5/8"-18, G5

1шт.

k

231-5146

FLANGE NUT,3/8"-16

1шт.
