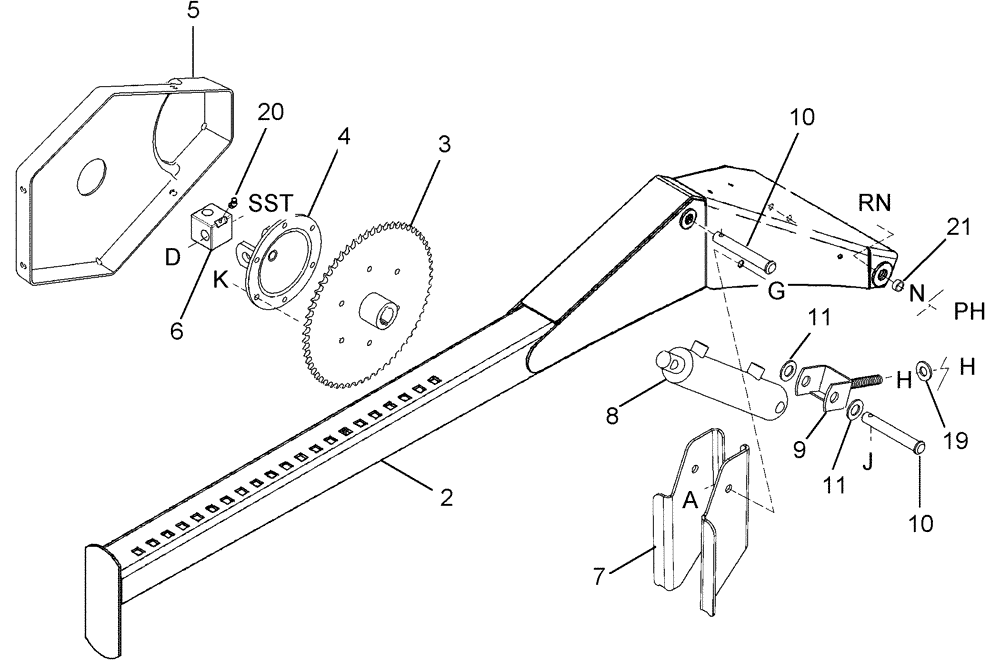

Запчасти Case IH 2062 (09-17) - SPLIT REEL SPECIAL COMPONENTS, CENTER REEL ARM, PICK-UP REEL, 30.0 AND 36.0 FOOT HEADER (03) - CHASSIS/MOUNTED EQUIPMENT

2

87422112

SUPPORTING ARM

Reel Support, Center, Inc. Reflector

1шт.

3

345904A1

SPROCKET ASSY.

60 Tooth, Driven

1шт.

4

345907A1

HUB

Inc. Clevis

1шт.

5

345912A1

SHIELD

Reel Drive, With Split Pick-up Reel

1шт.

6

388527A1

BLOCK

Inc. 219-37

1шт.

7

87408833

SUPPORT

Center Reel Arm

1шт.

8

REF

INSTRUCTION

Cylinder, Reel Lift

1шт.

See Figure 09 -05

1шт.

9

87408337

CLEVIS

1шт.

10

345910A1

PIN

3/4 x 4-1/2

2шт.

11

495-81042

WASHER,25/32" x 1 1/2" x .120"

2шт.

19

96-21066

WASHER,21/32" x 1 5/16" x .150", HDN

1шт.

20

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

1шт.

21

1276751C1

SPACER

2шт.

a

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

d

407403A1

BOLT

3/4 x 4-1/4

1шт.

e

231-42412

NUT,3/4"-10, GB

1шт.

f

87020810

CARRIAGE BOLT,Sq Nk, 3/4" - 10 x 4 1/2", Gr 5

1шт.

g

231-4118

LOCK NUT,1/2"-13, GB

1шт.

h

425-1010

NUT,5/8"-11, G5

1шт.

j

32-1220

COTTER PIN,3/16" x 1 1/4"

1шт.

k

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

1шт.

n

495-11066

WASHER,5/8", SAE

1шт.

p

231-53410

FLANGE NUT,Flg, 5/8"-11

1шт.

r

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

s

495-81042

WASHER,25/32" x 1 1/2" x .120"

1шт.

t

231-41412

NUT,3/4"-10, GB

1шт.
