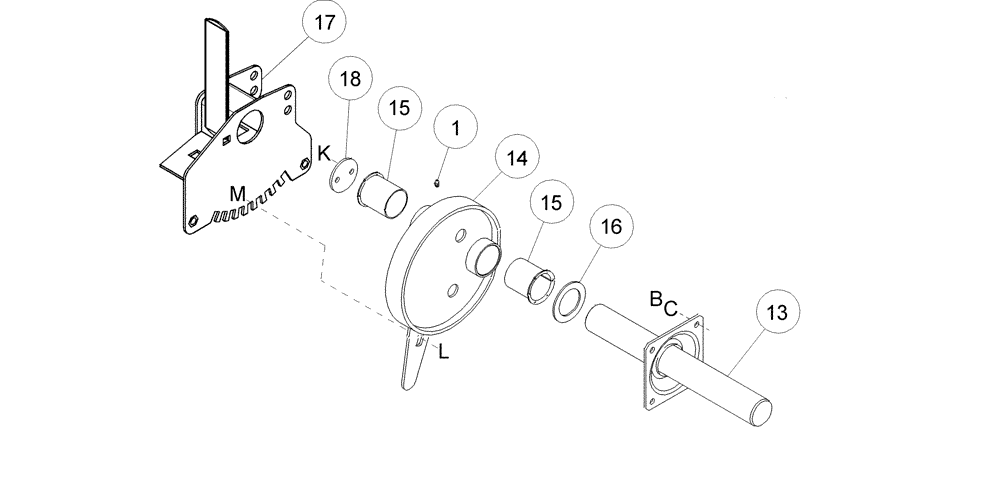

Запчасти Case IH 2062 (09-16) - SPLIT REEL SPECIAL COMPONENTS, PICK-UP REEL, RIGHT HAND REEL SUPPORT, 30.0 AND 36.0 FOOT HEADER (03) - CHASSIS/MOUNTED EQUIPMENT

1

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

13

345908A1

SHAFT

1шт.

14

345914A1

CAM

Reel

1шт.

15

1969215C1

BUSHING,51.2mm ID x 55.3mm OD x 62mm L

2шт.

16

1337235C1

WASHER

1шт.

17

87407608

SUPPORT

Right-Hand, Inc. Reflector

1шт.

18

347306A1

THRUST WASHER

1шт.

b

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

c

492-11038

LOCK WASHER,3/8"

1шт.

k

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

1шт.

l

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1шт.

m

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.
