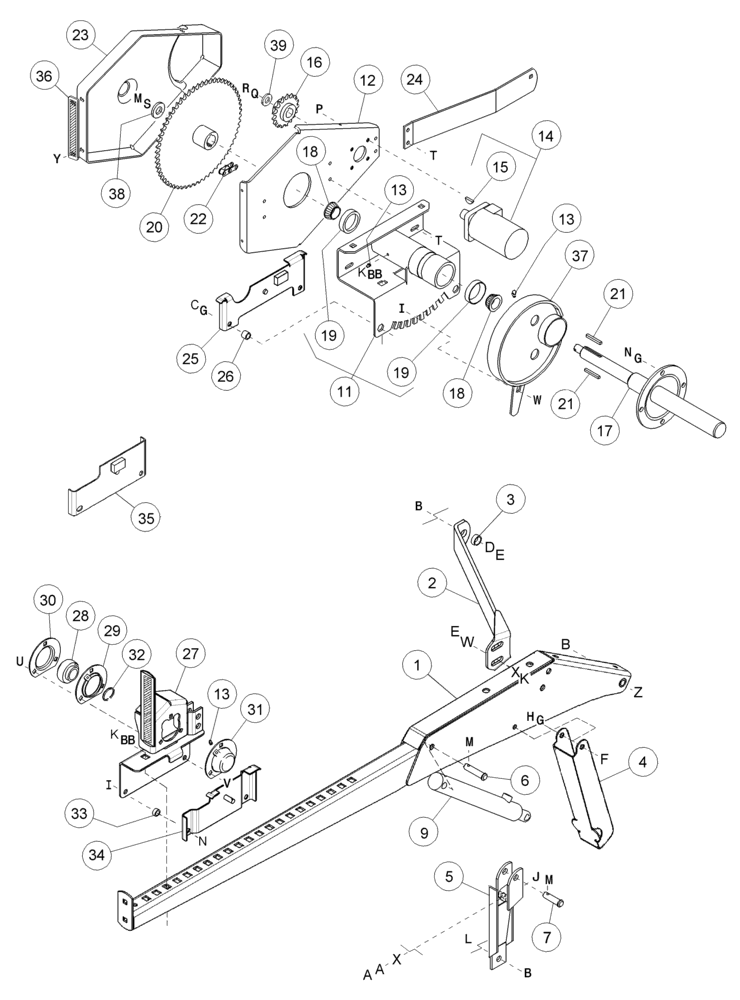

Запчасти Case IH 2062 (09-15) - REEL DRIVE AND SUPPORT ARMS (03) - CHASSIS/MOUNTED EQUIPMENT

1

87408831

ARM

Reel Support, Left-Hand, Inc. Reflector

2шт.

4

87408832

SUPPORT

Reel Arm Prop

2шт.

5

346074A1

SUPPORT

Cylinder Mount, Left-Hand

1шт.

5

346075A1

SUPPORT

Cylinder Mount, Right-Hand

1шт.

6

427-10300

CLEVIS PIN,5/8" x 4"

2шт.

7

427-10225

CLEVIS PIN,5/8" x 1 1/4"

5/8 x 2-1/4

2шт.

9

REF

INSTRUCTION

Cylinder, Reel Lift

1шт.

See Figure 09 -05

1шт.

11

87422092

SUPPORT

Inc. 651817R1 (2)

1шт.

12

346079A1

PLATE

Reel Drive

1шт.

13

219-8

LUBE NIPPLE,1/4" - 28 NPTF

Without Bat Reel

3шт.

14

126686A1

MOTOR, HYDRAULIC

Inc. 126-124

1шт.

14

591447R

REMAN-STEERING VALVE

2062 DRAPER HEADER (4/03-), Reman for New PN 126686A1

1шт.

14

591447C

CORE-STEERING VALVE

Return Number

1шт.

429255A1

SEAL KIT

Replaces 338359A1

1шт.

15

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

16

450912A1

SPROCKET

17 Tooth, Optional, High Speed Reel Drive

1шт.

16

346078A1

SPROCKET ASSY.

11 Tooth, High Torque Reel Drive

1шт.

17

346080A1

SHAFT

1шт.

18

602958R91

BEARING ASSY,31.75 mm ID x 25.4 mm

2шт.

19

651817R1

BEARING CUP

2шт.

19

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

20

345904A1

SPROCKET ASSY.

60 Tooth, Without Split Reel

1шт.

21

T25070

KEY

1/4 x 1-57/64

2шт.

22

450913A1

CHAIN

Inc. 241-1315, Optional, High Speed Reel Drive

1шт.

22

346072A1

CHAIN (AG)

Inc. 241-1315, High Torque Reel Drive

1шт.

241-1315

LINK, CONNECTING

No. 50

1шт.

24

345995A1

BAR

Hose Retainer

1шт.

25

345898A1

SUPPORT

Right-Hand, Fore And Aft, With Split Pick-up Reel

1шт.

26

345899A1

SPACER

Right-Hand, Fore And Aft, With Split Pick-up Reel

2шт.

27

87407609

SUPPORT

Left-Hand, Inc. Reflector

1шт.

27

87456666

SUPPORT

Left-Hand, Inc. Reflector, Bat Reel Only

1шт.

28

362467A1

BALL BEARING

Inc. Set Screw

1шт.

29

338336A1

FLANGE

1шт.

30

338335A1

FLANGE

1шт.

31

338337A1

COVER

1шт.

32

100-11118

SNAP RING,#118, Ext

1шт.

33

345900A1

SPACER

Left-Hand, Fore And Aft

2шт.

34

345901A1

SUPPORT

Left-Hand, Fore And Aft

1шт.

36

410680A1

PLATE

Amber, Without Split Reel

1шт.

37

346084A1

CAM

1шт.

38

1336594C1

WASHER

1шт.

39

126705A1

WASHER

7,1 x 32 x 3 mm

1шт.

a

425-1010

NUT,5/8"-11, G5

Pick-up Reel

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

(Bat Reel)

1шт.

b

231-53410

FLANGE NUT,Flg, 5/8"-11

1шт.

c

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

f

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

g

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

h

231-4118

LOCK NUT,1/2"-13, GB

1шт.

i

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

j

346551A1

BOLT

5/8 x 7-1/2, Minimum 6.5 in Thread

1шт.

k

425-1010

NUT,5/8"-11, G5

1шт.

l

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

1шт.

m

32-1220

COTTER PIN,3/16" x 1 1/4"

1шт.

n

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

p

358048A1

LOCK BOLT

3/8 NC x 3/4

1шт.

q

492-11025

LOCK WASHER,1/4"

1шт.

r

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

s

425-1312

SLOTTED NUT,3/4"-16, G5

1шт.

t

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

1шт.

u

33-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

v

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

w

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1шт.

x

96-21066

WASHER,21/32" x 1 5/16" x .150", HDN

1шт.

y

281-1488

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 1/2"

1шт.

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

1шт.

z

433-1072

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4 1/2", Gr 5

1шт.

bb

492-11062

BEARING WASHER,5/8"

1шт.
