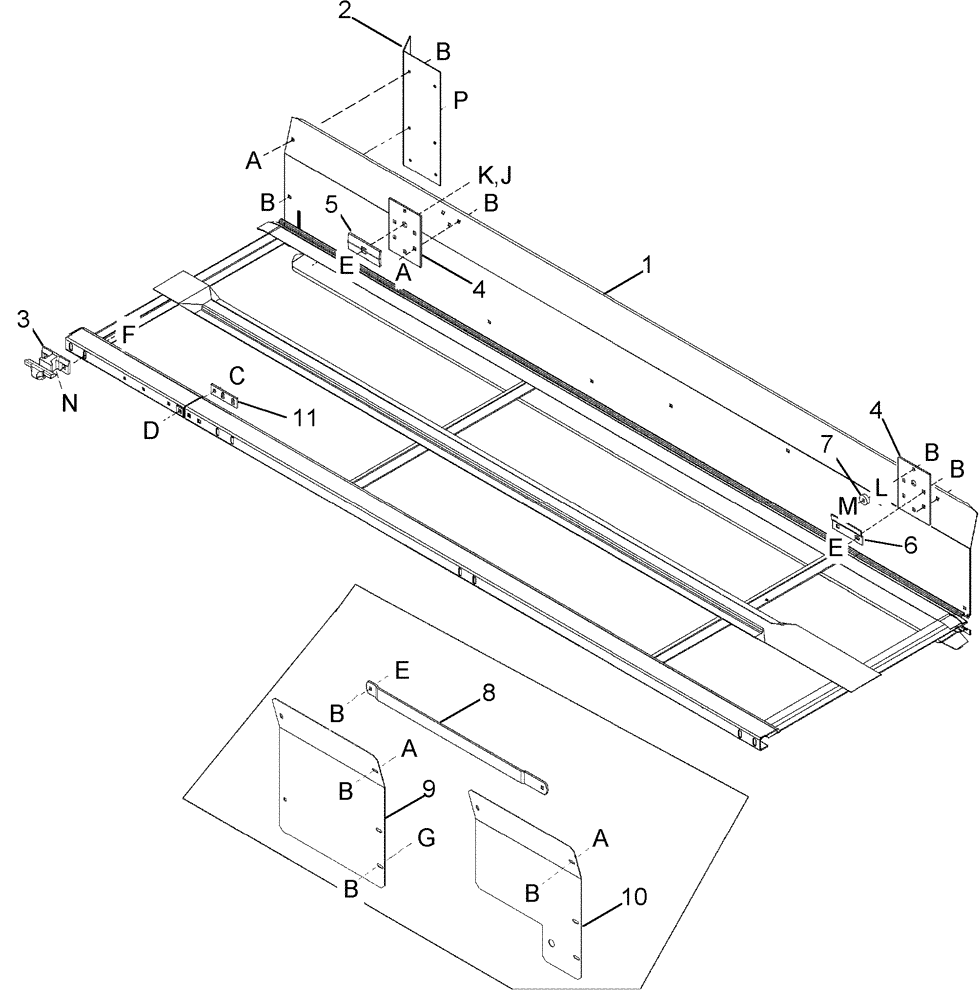

Запчасти Case IH 2062 (09-13) - DRAPER CARRIER DECKS (03) - CHASSIS/MOUNTED EQUIPMENT

1

87408357

CARRIER ASSY.

Left-Hand

1шт.

30.0 Foot Header

1шт.

1

87408333

CARRIER

Left-Hand

1шт.

36.0 Foot Header

1шт.

1

87408356

CARRIER

Right-Hand

1шт.

30.0 Foot Header

1шт.

1

87408336

CARRIER

Right-Hand, Inboard

1шт.

36.0 Foot Header

1шт.

2

87408760

EXTENSION

Left-Hand, Shown

1шт.

2

87408806

EXTENSION

Right-Hand

1шт.

3

87422058

DRAWBAR SUPPORT

Front Deck

8шт.

30.0 Foot Header

1шт.

3

87422058

DRAWBAR SUPPORT

Front Deck

9шт.

36.0 Foot Header

1шт.

4

87408320

PLATE

4шт.

30.0 Foot Header

1шт.

4

87408320

PLATE

7шт.

36.0 Foot Header

1шт.

5

345984A1

CLAMP

2шт.

30.0 Foot Header

1шт.

5

345984A1

CLAMP

4шт.

36.0 Foot Header

1шт.

6

346199A1

GUIDE

2шт.

30.0 Foot Header

1шт.

6

346199A1

GUIDE

3шт.

36.0 Foot Header

1шт.

7

347022A1

BALL BEARING

4шт.

30.0 Foot Header

1шт.

7

347022A1

BALL BEARING

6шт.

36.0 Foot Header

1шт.

8

372322A1

BAR

With Connected Right Hand Deck

1шт.

9

372323A1

EXTENSION

With Connected Right Hand Deck

1шт.

10

370014A1

EXTENSION

With Split Right Hand Decks

1шт.

11

87408334

PLATE

For Flex Header Only

2шт.

30.0 and 36.0 Foot Header

1шт.

a

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

1шт.

b

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

c

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

d

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1шт.

e

33-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

f

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1шт.

g

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

h

434-1024

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 1 1/2", Gr 5

1шт.

j

425-1010

NUT,5/8"-11, G5

1шт.

k

492-11062

BEARING WASHER,5/8"

1шт.

l

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

m

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

n

231-4118

LOCK NUT,1/2"-13, GB

1шт.

p

358047A1

SCREW,Torx, Truss HD, 3/8" - 16 x 1/2", Gr 5

1шт.
