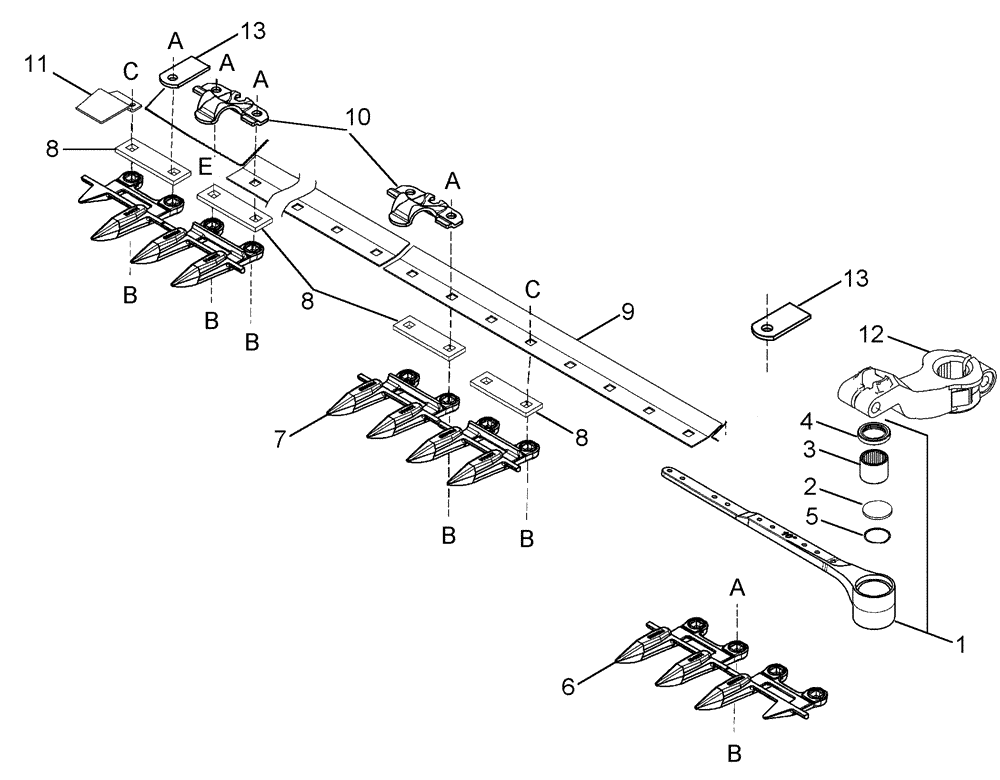

Запчасти Case IH 2062 (09-11) - KNIFE ASSEMBLY - 30.0 AND 36.0 FOOT HEADER, RAISED SICKLES (03) - CHASSIS/MOUNTED EQUIPMENT

W0

ORDER WHOLEGOODS

Raised Sickle Kit

1шт.

Order 87461322 From Machinery

1шт.

1

87457980

HEAD ASSY.

Raised Sickles, Includes Items 2 - 5

1шт.

2

395820A1

PLUG

Top-serrated

1шт.

3

A27827

NEEDLE BEARING,Needle, 31.75mm ID x 38.1mm OD x 31.75mm W

Needle

1шт.

4

345892A1

SEAL KIT

Sickle Head

1шт.

5

430320A1

O-RING,0.07" Thk x 1.364" ID, -28, Cl 5, 75 Duro

Sickle Head

1шт.

6

REF

INSTRUCTION

Sickle End Guards (Not Included)

1шт.

See Figure 09 -08

1шт.

7

REF

INSTRUCTION

Sickle Guards (Not Included)

1шт.

See Figure 09 -08

1шт.

8

369991A1

BAR

Spacer, Hold Downs

58шт.

30.0 Foot Header

1шт.

8

369991A1

BAR

Spacer, Hold Downs

70шт.

36.0 Foot Header

1шт.

9

381061A1

PLATE

Raised Sickle, 29.5" Long, Right End

9шт.

30.0 Foot Header

1шт.

9

381063A1

PLATE

Raised Sickle, 41.5" Long, Right End

10шт.

36.0 Foot Header

1шт.

10

REF

INSTRUCTION

Guide, Sickle Hold Down (Not Included)

1шт.

See Figure 09 -08

1шт.

11

REF

INSTRUCTION

Shield, Sickle Right End, (Not Included)

1шт.

See Figure 09 -08

1шт.

12

REF

INSTRUCTION

Arm, Output, (Not Included)

1шт.

See Figure 09 -08

1шт.

13

87407811

RETAINER

Crop Deflector

2шт.

a

433-732

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2", Gr 5

1шт.

b

429-107

NUT,7/16"-14, G8

1шт.

c

86508778

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 5

1шт.

e

495-11047

WASHER,7/16", SAE

1шт.
