(09-10) - KNIFE ASSEMBLY - 30.0 AND 36.0 FOOT HEADER, SEGMENTED COARSE SICKLES

Запчасти Case IH 2062 (09-10) - KNIFE ASSEMBLY - 30.0 AND 36.0 FOOT HEADER, SEGMENTED COARSE SICKLES (03) - CHASSIS/MOUNTED EQUIPMENT

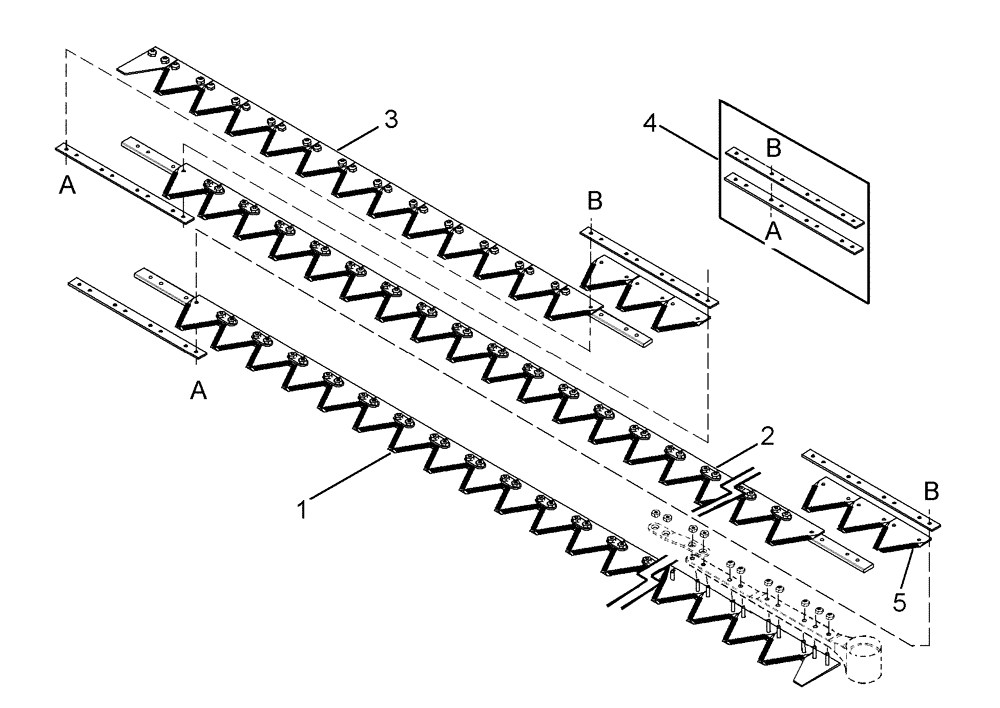

Схема запчастей Case IH 2062 - (09-10) - KNIFE ASSEMBLY - 30.0 AND 36.0 FOOT HEADER, SEGMENTED COARSE SICKLES (03) - CHASSIS/MOUNTED EQUIPMENT
b
a
3
2
4
a
b
b
1
a
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87458220

KNIFE SECTION

SECTION, KNIFE Left Head Segment

1шт.

2

87458222

KNIFE SECTION

SECTION, KNIFE Center Segment

2шт.

30.0 Foot Header

1шт.

2

87458222

KNIFE SECTION

SECTION, KNIFE Center Segment

3шт.

36.0 Foot Header

1шт.

3

87458225

KNIFE SECTION

SECTION, KNIFE Right Tail Segment

1шт.

30.0 Foot Header

1шт.

3

87458226

KNIFE SECTION

SECTION, KNIFE Right Tail Segment

1шт.

36.0 Foot Header

1шт.

4

87458228

KNIFE SECTION

SECTION, KNIFE Splice

3шт.

5

87422066

KNIFE SECTION

8шт.
