Запчасти Case IH 2062 (09-09[01]) - KNIFE ASSEMBLY - 30.0 AND 36.0 FOOT HEADER, SERRATED COARSE SICKLES, NON-SEGMENTED (03) - CHASSIS/MOUNTED EQUIPMENT

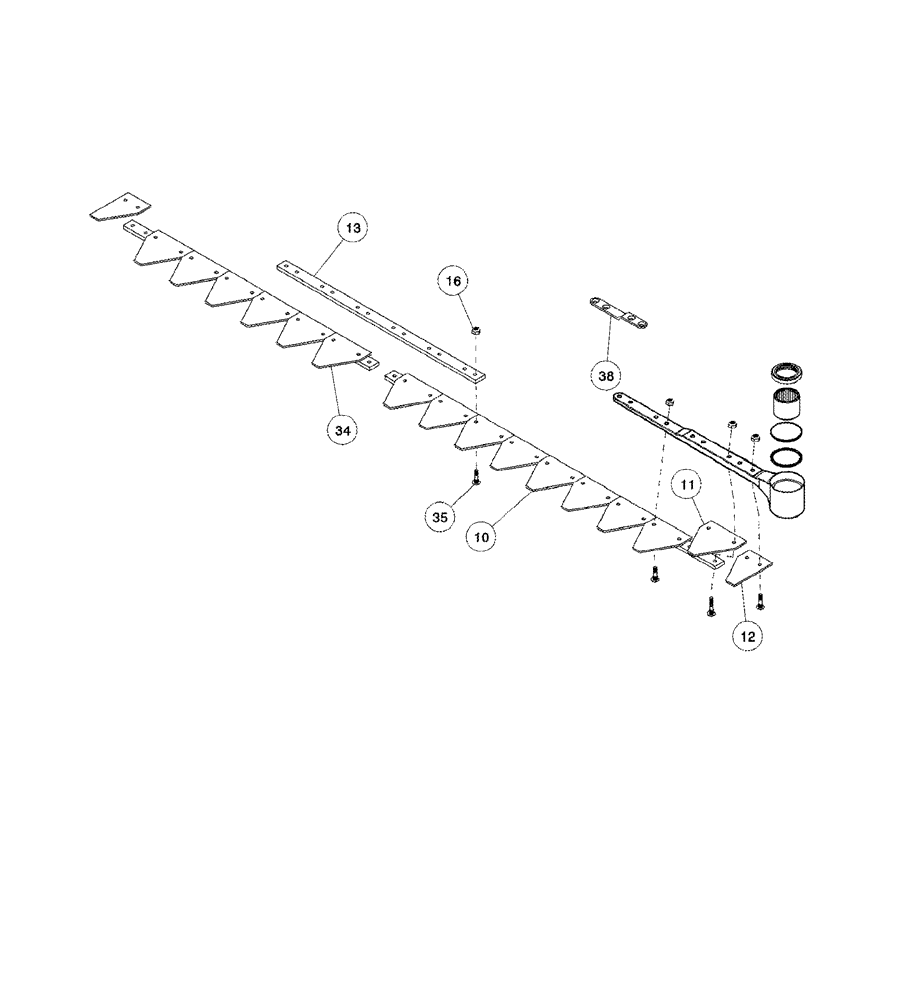

Схема запчастей Case IH 2062 - (09-09[01]) - KNIFE ASSEMBLY - 30.0 AND 36.0 FOOT HEADER, SERRATED COARSE SICKLES, NON-SEGMENTED (03) - CHASSIS/MOUNTED EQUIPMENT

Артикул

Название

Примечание

Количество

10

87456670

KNIFE ASSY

Left-Hand

1шт.

11

87422066

KNIFE SECTION

Top-serrated

3шт.

12

1327411C1

KNIFE SECTION

SECTION, KNIFE Half

1шт.

13

126622A1

BAR

Splice

1шт.

16

1954816C1

LOCK NUT

No. 12

8шт.

34

87422088

KNIFE ASSY

Right-Hand

1шт.

30.0 Foot Header

1шт.

34

87422089

KNIFE ASSY

Right-Hand

1шт.

36.0 Foot Header

1шт.

35

347236A1

SCREW

No. 12 x 59/64

8шт.

38

87456665

BAR

Reinforcing

1шт.

Выбрано товаров: 11
