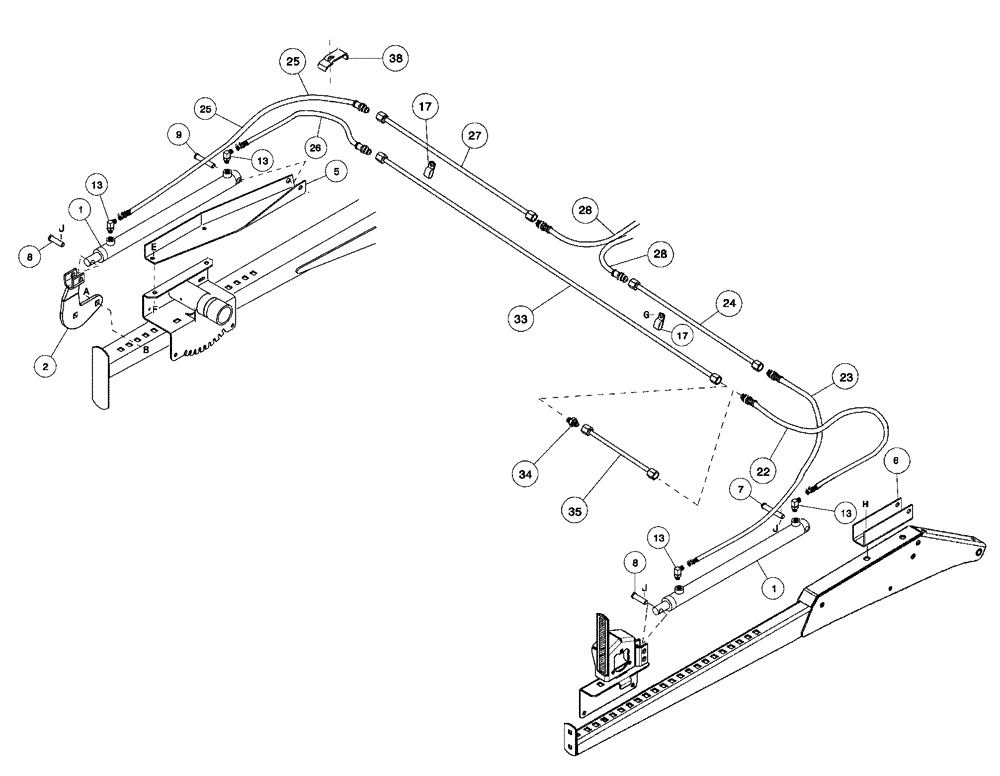

Запчасти Case IH 2052 (09-07) - HYDRAULIC FORE-AFT REEL 2 ARM POSITIONER, 21.0 AND 25.0 FOOT HEADER (03) - CHASSIS/MOUNTED EQUIPMENT

1

345942A1

CYLINDER,Double Acting, 22.23mm Rod, 550mm Stroke

Reel Fore And Aft

2шт.

345950A1

SEAL KIT

Cylinder

2шт.

2

87414756

SUPPORT

Reel Drive Arm

1шт.

5

345951A1

CHANNEL

Reel Drive Arm

1шт.

6

429278A1

SUPPORT

Cylinder Rear Mount

1шт.

7

1344998C1

CLEVIS PIN

5/8 x 2-1/2

1шт.

8

427-10225

CLEVIS PIN,5/8" x 1 1/4"

5/8 x 1-13/16

2шт.

9

427-10300

CLEVIS PIN,5/8" x 4"

1шт.

12

344825A1

SUPPORT

Hose

2шт.

21.0 Foot Header

1шт.

12

344825A1

SUPPORT

Hose

4шт.

25.0 Foot Header

1шт.

13

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

4шт.

17

352693A1

HOLDER

Hydraulic Lines

6шт.

21.0 Foot Header

1шт.

17

352693A1

HOLDER

Hydraulic Lines

7шт.

25.0 Foot Header

1шт.

22

370043A1

HOSE

1100 mm (43-5/16 inch)

1шт.

23

370046A1

HOSE

1530 mm (60-1/4 in)

1шт.

24

370025A1

HYD TUBE,9.52 mm OD

1шт.

21.0 Foot Header

1шт.

24

372309A1

HYD TUBE

1шт.

25.0 Foot Header

1шт.

25

372308A1

HOSE

1шт.

26

370040A1

HOSE

2250 mm (88-37/64 in)

1шт.

27

370026A1

HYD TUBE,9.52 mm OD

1шт.

21.0 Foot Header

1шт.

27

370027A1

HYD TUBE,9.52 mm OD

1шт.

25.0 Foot Header

1шт.

28

126624A1

HOSE

1шт.

33

345997A1

HYD TUBE,9.52 mm OD

1шт.

21.0 Foot Header

1шт.

33

345991A1

HYD TUBE,9.5 mm OD

1шт.

25.0 Foot Header

1шт.

34

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

1шт.

25.0 Foot Header

1шт.

35

345990A1

HYD TUBE,9.5 mm OD

1шт.

25.0 Foot Header

1шт.

38

370017A1

CLAMP

1шт.

a

434-1024

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 1 1/2", Gr 5

1шт.

b

231-53410

FLANGE NUT,Flg, 5/8"-11

1шт.

c

495-11066

WASHER,5/8", SAE

1шт.

e

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

f

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1шт.

g

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

1шт.

h

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

1шт.

j

32-1220

COTTER PIN,3/16" x 1 1/4"

1шт.

k

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

1шт.

l

129-390

JAM NUT,Jam, 5/8"-11, G5

1шт.

n

433-624

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

1шт.

r

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.
