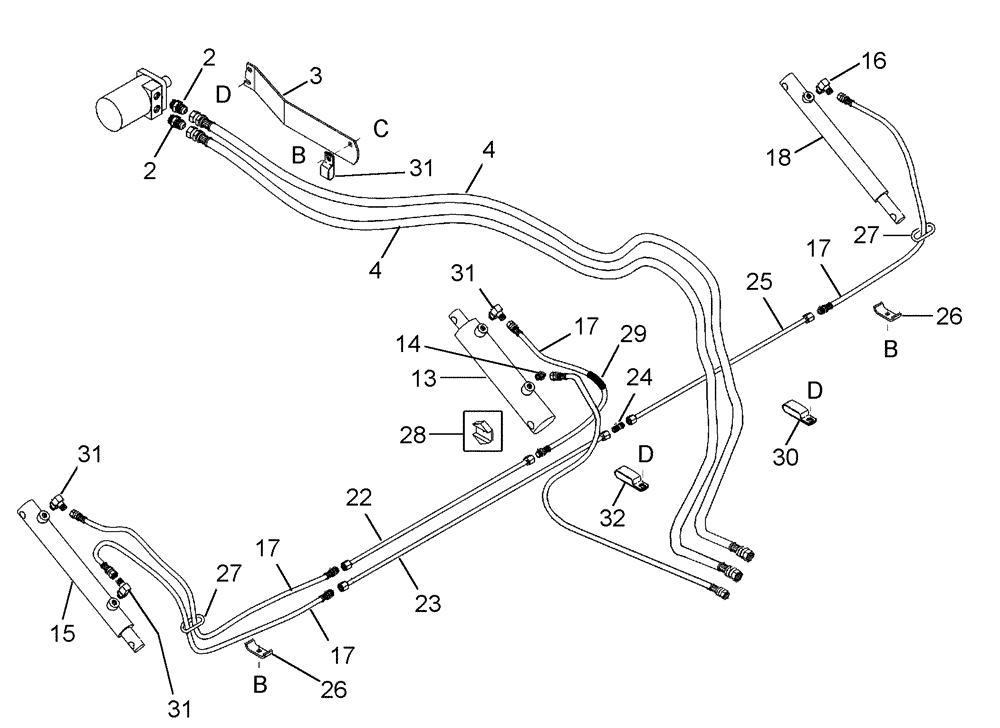

Запчасти Case IH 2052 (09-06) - HYDRAULIC CIRCUIT - THREE ARM REEL LIFT & REEL DRIVE, 30.0, 36.0 & 39.0 FOOT HEADERS (03) - CHASSIS/MOUNTED EQUIPMENT

1

126686A1

MOTOR, HYDRAULIC

Inc. 126-124

1шт.

1

591447R

REMAN-STEERING VALVE

2052 DRAPER HEADER (4/03-), Reman for New PN 126686A1

1шт.

1

591447C

CORE-STEERING VALVE

Return Number

1шт.

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

429255A1

SEAL KIT

Replaces 338359A1

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

2шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

3

345995A1

BAR

Hose Support

1шт.

4

345964A1

HOSE

Reel Drive, 2900 mm (114-3/16 in)

2шт.

12

470375C1

CLAMP,1", Insul, 3/8" Bolt

Insulated, 2 Hose

2шт.

13

87458794

CYLINDER,Double Acting, 30.2mm Rod, 155.6mm Stroke

Reel Lift, Center, MacDon Part Number 129524 Stamped On Cylinder

1шт.

For Units BSN CCC0014710 Also Order 87458799

1шт.

394522A1

SEAL KIT

Center Cylinder

1шт.

87414725

PISTON

Center Cylinder

1шт.

14

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

, Serial Range: -CCC0014710

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

14

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

, Start Serial: CCC0014710

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

87414724

LIFT CYLINDER

1шт.

394524A1

SEAL KIT

1шт.

16

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

4шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

345993A1

HOSE

From Double Acting And To Single Acting, 1600 mm (63 in)

4шт.

18

1337004C1

HYDRAULIC CYLINDER,25.4mm Rod, 250mm Stroke

Reel Lift, Right-Hand

1шт.

823144C91

SEAL KIT

Seal

1шт.

19

1276818C1

HOSE

Reel Lift, Pressure To Center Cylinder, 1820 mm (71-21/32 in)

1шт.

22

345991A1

HYD TUBE,9.5 mm OD

Center

1шт.

30.0 Foot Header

1шт.

22

346006A1

HYD TUBE,9.52 mm OD

Center

1шт.

36.0 Foot Header

1шт.

22

370026A1

HYD TUBE,9.52 mm OD

Center

1шт.

39.0 Foot Header

1шт.

23

126742A1

HYD TUBE,9.53 mm OD, 4535 mm Length

Left Hand Side

1шт.

30.0 Foot Header

1шт.

23

345997A1

HYD TUBE,9.52 mm OD

Left Hand Side

1шт.

36.0 Foot Header

1шт.

23

370051A1

HYD TUBE,9.52 mm OD

Left Hand Side

1шт.

39.0 Foot Header

1шт.

24

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

1шт.

25

345991A1

HYD TUBE,9.5 mm OD

Right Hand Side

1шт.

30.0 Foot Header

1шт.

25

126742A1

HYD TUBE,9.53 mm OD, 4535 mm Length

Right Hand Side

1шт.

36.0 Foot Header

1шт.

25

370051A1

HYD TUBE,9.52 mm OD

Right Hand Side

1шт.

39.0 Foot Header

1шт.

26

1954807C1

CLAMP

Hose

2шт.

27

345981A1

LOOM

2шт.

28

826031C1

RESTRICTOR

Flow

1шт.

Install In Bottom Port Of Ref 13 To Slow Reel Lift And Drop Rate

1шт.

29

126632A1

CONDUIT

Hose Protector

2шт.

30

338322A1

CLIP

Insulated, 3 Hose

2шт.

31

935036R91

ELBOW

, Start Serial: CCC0014710

3шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

32

344825A1

SUPPORT

1шт.

b

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

c

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

d

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

1шт.
