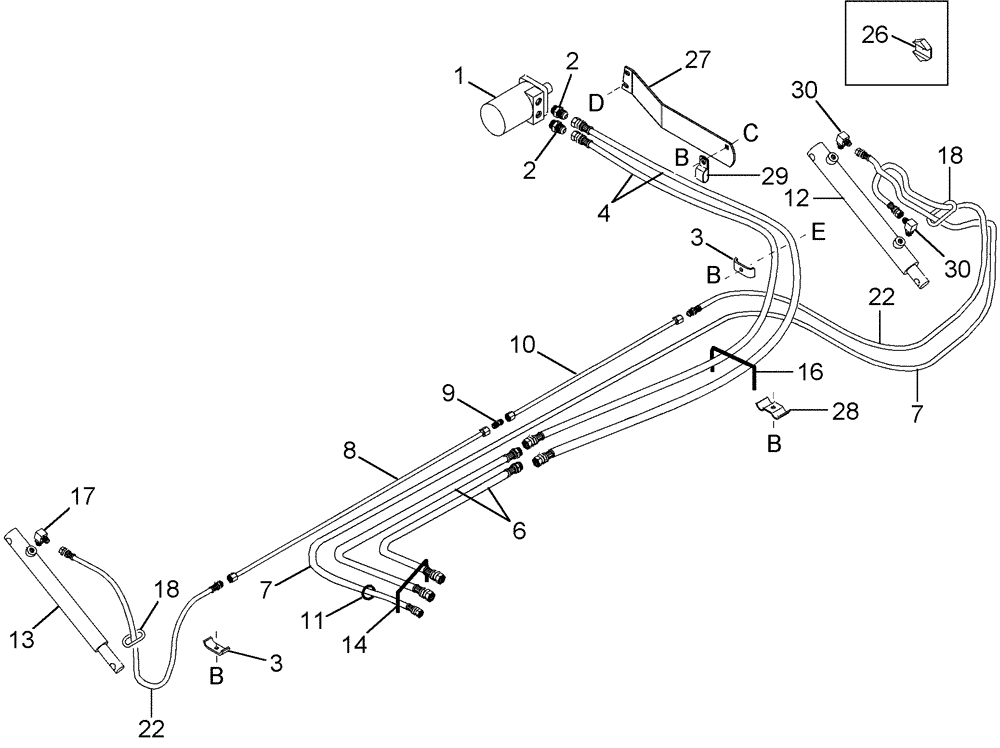

Запчасти Case IH 2052 (09-05) - HYDRAULIC CIRCUIT - TWO ARM REEL LIFT AND REEL DRIVE, 25.0 FOOT HEADER (03) - CHASSIS/MOUNTED EQUIPMENT

1

126686A1

MOTOR, HYDRAULIC

Inc. 126-124

1шт.

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

429255A1

SEAL KIT

Hydraulic Motor, Replaces 338359A1

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

2шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

3

1954807C1

CLAMP

Hose

3шт.

4

345964A1

HOSE

Reel Drive, To Motor, 2900 mm (114-3/16 in)

2шт.

6

87458788

HOSE

Reel Drive, To Left Side Of Opening, 5000 mm (196-55/64 in)

2шт.

7

87408938

HOSE

Reel Lift, Pressure To Right Cylinder, 6250 mm (246-1/16 in)

2шт.

8

345991A1

HYD TUBE,9.5 mm OD

Reel Lift, Left Side

1шт.

9

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

1шт.

10

345990A1

HYD TUBE,9.5 mm OD

Reel Lift, Right Side

1шт.

12

87458795

LIFT CYLINDER,Double Acting, 28.56mm Rod, 254mm Stroke

1шт.

For Units BSN CCC0014710 Also Order 87458799

1шт.

394524A1

SEAL KIT

Cylinder

1шт.

13

1337004C1

HYDRAULIC CYLINDER,25.4mm Rod, 250mm Stroke

Reel Lift

1шт.

823144C91

SEAL KIT

Seal

1шт.

17

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

, Serial Range: -CCC0014710

3шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

17

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

, Start Serial: CCC0014710

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

18

345981A1

LOOM

2шт.

22

345993A1

HOSE

From Double Acting and To Single Acting, 1600 mm (63 in)

2шт.

26

826031C1

RESTRICTOR

Flow

1шт.

Install In Top Port Of Ref 12 To Slow Reel Lift And Drop Rate

1шт.

27

345995A1

BAR

Support

1шт.

28

345999A1

SUPPORT

Hose

3шт.

29

470375C1

CLAMP,1", Insul, 3/8" Bolt

Insulated

1шт.

30

935036R91

ELBOW

, Start Serial: CCC0014710

2шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

b

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

c

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

d

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

1шт.

e

433-624

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

1шт.
