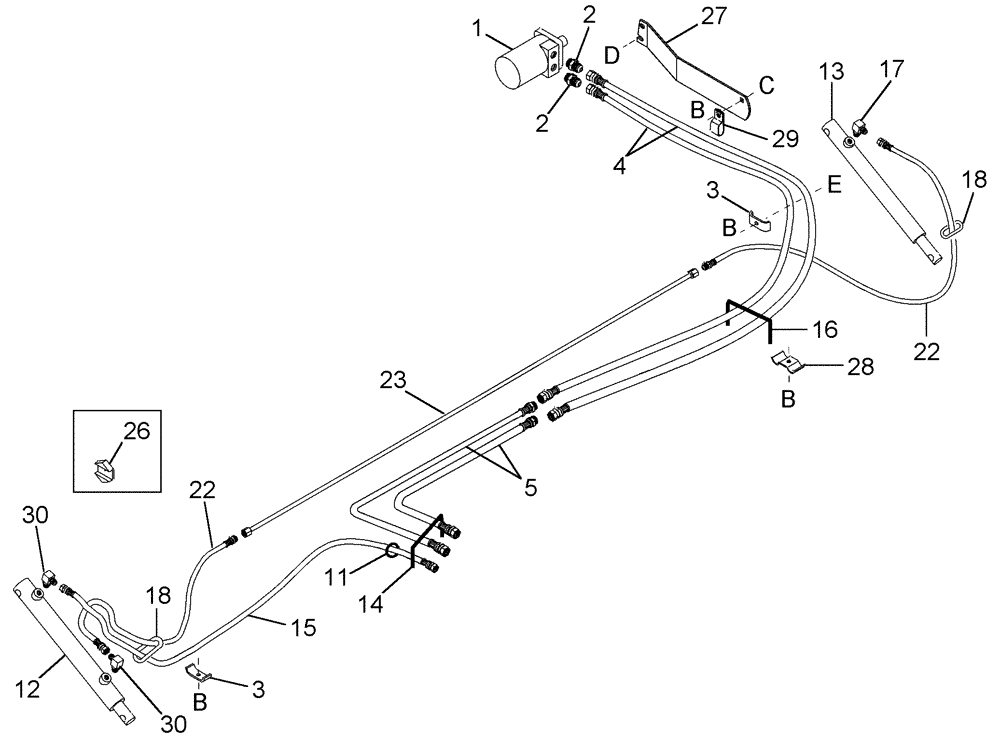

Запчасти Case IH 2052 (09-04) - HYDRAULIC CIRCUIT - TWO ARM REEL LIFT AND REEL DRIVE, 21.0 FOOT HEADER (03) - CHASSIS/MOUNTED EQUIPMENT
№
Артикул
Название
Примечание
Количество
1
126686A1
MOTOR, HYDRAULIC
Inc. 126-124
1шт.
126-124
WOODRUFF KEY,#15, 1/4" x 1", HT
1шт.
429255A1
SEAL KIT
Hydraulic Motor, Replaces 338359A1
1шт.
2
218-5062
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
2шт.
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
2шт.
3
1954807C1
CLAMP
Hose
3шт.
4
345964A1
HOSE
Reel Drive, To Motor, 2900 mm (114-3/16 in)
2шт.
5
87458789
HOSE
Reel Drive, To Left Side Of Opening, 4450 mm (175-3/16 in)
2шт.
12
87458795
LIFT CYLINDER,Double Acting, 28.56mm Rod, 254mm Stroke
1шт.
For Units BSN CCC0014710 Also Order 87458799
1шт.
394524A1
SEAL KIT
Cylinder
1шт.
13
1337004C1
HYDRAULIC CYLINDER,25.4mm Rod, 250mm Stroke
Reel Lift
1шт.
823144C91
SEAL KIT
Seal
1шт.
15
87408945
HOSE
Reel Lift, Pressure To Left Cylinder 3820 mm (150-3/8 in)
1шт.
17
218-5105
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
, Serial Range: -CCC0014710
3шт.
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
3шт.
17
218-5105
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
, Start Serial: CCC0014710
1шт.
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
18
345981A1
LOOM
2шт.
22
345993A1
HOSE
From Double Acting and To Single Acting,1600 mm (63 in)
2шт.
23
345997A1
HYD TUBE,9.52 mm OD
Hydraulic, Reel Lift
1шт.
26
826031C1
RESTRICTOR
Flow
1шт.
Install In Top Port Of Ref 12 To Slow Reel Lift And Drop Rate
1шт.
27
345995A1
BAR
Support
1шт.
28
345999A1
SUPPORT
Hose
2шт.
29
470375C1
CLAMP,1", Insul, 3/8" Bolt
Insulated
1шт.
30
935036R91
ELBOW
, Start Serial: CCC0014710
2шт.
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
c
80280503
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd
1шт.
d
281-54910
SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"
1шт.
e
433-624
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/2", Gr 5
1шт.
Выбрано товаров: 32
