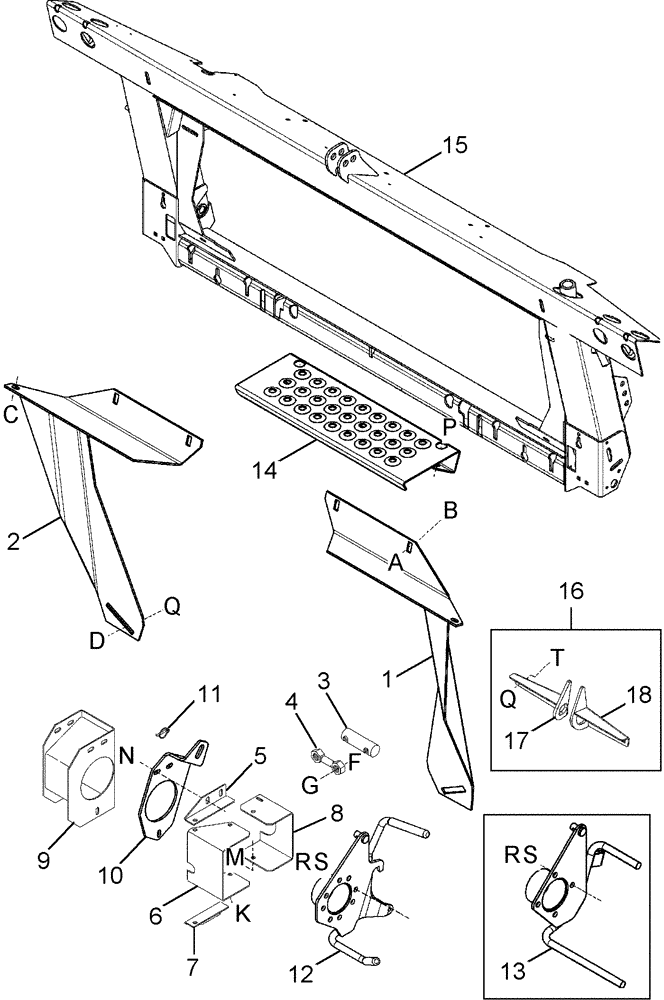

Запчасти Case IH 2052 (09-51) - COMBINE ADAPTER COMPLETION PARTS - CASE 2100/2300 SERIES COMBINES (03) - CHASSIS/MOUNTED EQUIPMENT

1

87408995

SUPPORT

Adapter, Right Hand

1шт.

2

87408804

SUPPORT

Adapter, Left Hand

1шт.

3

126646A1

PIN

Straight

2шт.

4

1327397C1

PIN

Clamp

2шт.

5

338458A1

SUPPORT

Right Hand, Top

1шт.

6

338451A1

SHIELD

Right Hand, Rear Section

1шт.

7

338449A1

SUPPORT

Right Hand, Bottom

1шт.

8

338452A1

SHIELD

Right Hand, Front Section

1шт.

9

347469A1

SHIELD

Right Hand Extension, For Narrow Feeder House

1шт.

10

87408997

ARM

Drive Support

1шт.

11

341198A1

PIN

Lynch

1шт.

12

87461314

ARM

Drive, Start Serial: CCC0016010

1шт.

13

87407649

ARM

Drive, Serial Range: -CCC0016010

1шт.

14

87408996

PLATE

Walkway

2шт.

15

NSS

NOT SOLD SEPARAT

Adapter, Frame

1шт.

16

87368704

PACKAGE, REPAIR

LATCH Inc. 17, 18

1шт.

17

87383353

BRACKET

Left-Hand

1шт.

18

87383354

BRACKET

Right-Hand

1шт.

a

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1шт.

b

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

c

360-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1шт.

d

434-1016

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 1", Gr 5

1шт.

f

425-1410

JAM NUT,Jam, 5/8"-11, G5

1шт.

g

113-2668

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5, Full Thd

1шт.

k

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

l

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

m

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

n

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

1шт.

p

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

1шт.

q

231-53410

FLANGE NUT,Flg, 5/8"-11

1шт.

r

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

s

892-11012

LOCK WASHER,M12

1шт.

t

434-1024

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 1 1/2", Gr 5

1шт.
