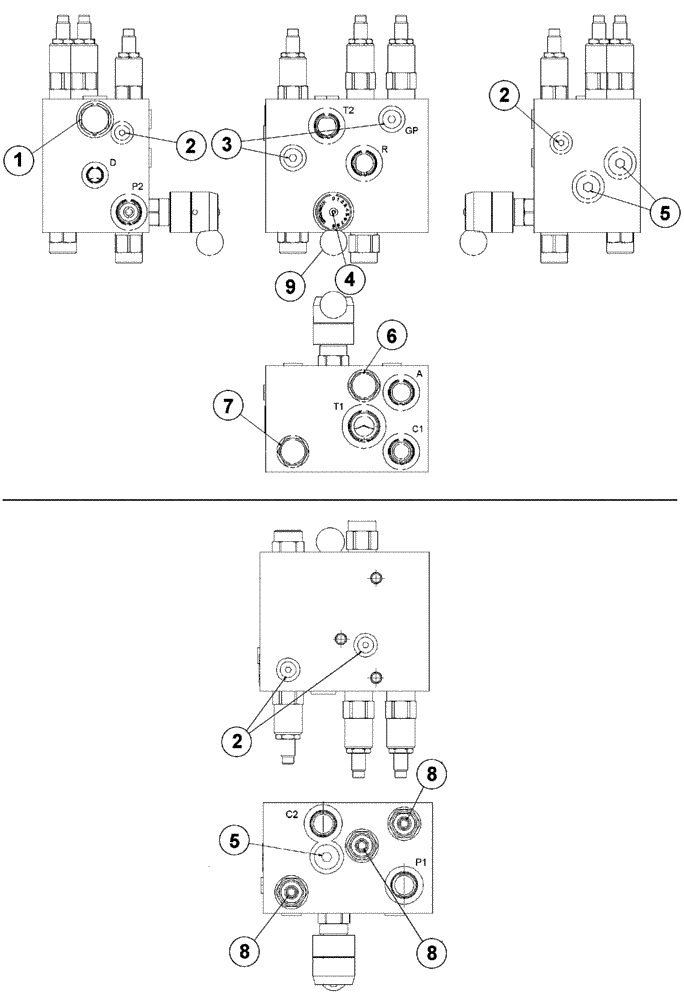

Запчасти Case IH 2052 (09-45) - COMBINE ADAPTER CONTROL VALVE ASSEMBLY (03) - CHASSIS/MOUNTED EQUIPMENT

87408745

VALVE

Block

1шт.

87407648

SEAL KIT

Valve

1шт.

1

429247A1

VALVE

Cartridge CV10-20-0-N-02

1шт.

2

278548

PLUG,Hex, 7/16"-20 ORB

4шт.

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

3

430271A1

PLUG

9/16 Or

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

338411A1

VALVE

Cartridge MR10-20B-0-N

1шт.

5

87407647

PLUG

3шт.

6

87407644

VALVE

2 Way, Cartridge

1шт.

7

338332A1

VALVE

Pressure Compensator, Cartridge

1шт.

8

429258A1

VALVE

Cartridge RV50-26A-0-P-50/31

1шт.

9

338412A1

HANDLE

Ball/Handle

1шт.
