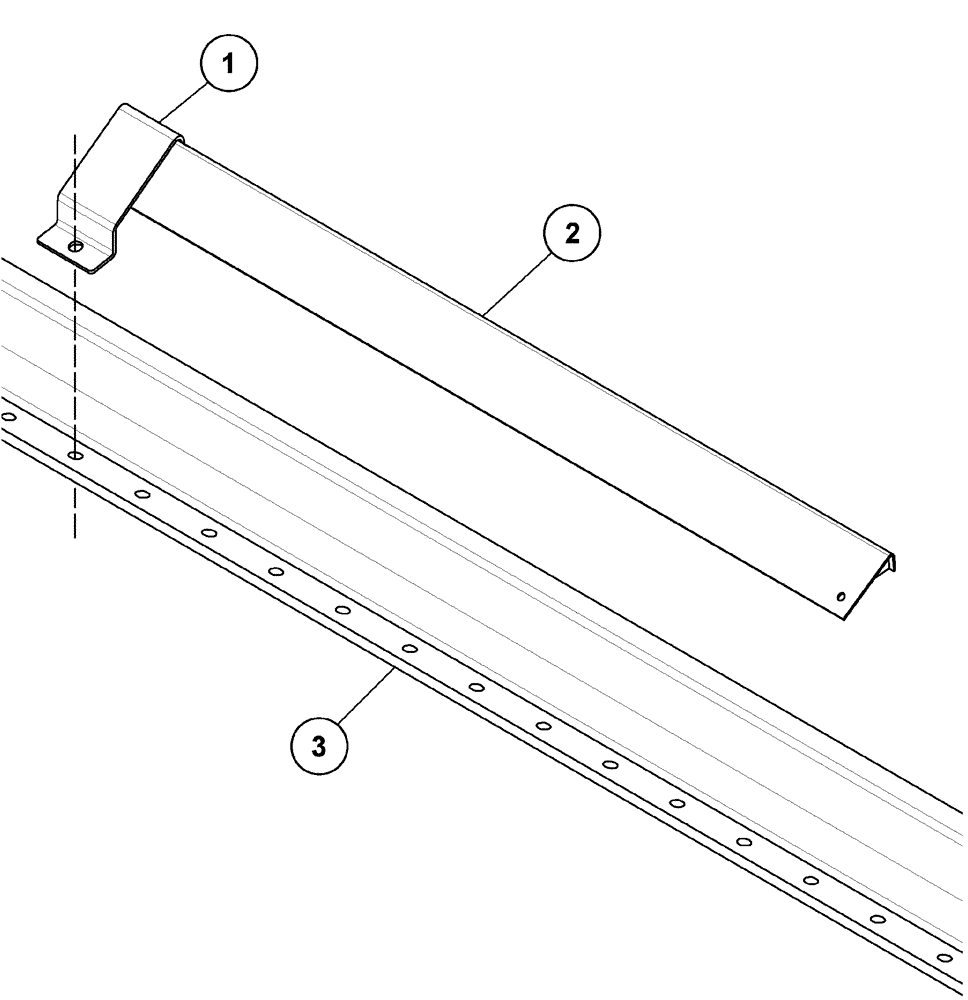

Запчасти Case IH 2052 (09-40) - BEAN SAVER (03) - CHASSIS/MOUNTED EQUIPMENT

REF

INSTRUCTION

Kit, Bean Saver

1шт.

21.0 Foot Header

1шт.

Order 87428003 From Machinery

1шт.

REF

INSTRUCTION

Kit, Bean Saver

1шт.

Order 87428004 From Machinery

1шт.

25.0 Foot Header

1шт.

REF

INSTRUCTION

Kit, Bean Saver

1шт.

Order 87428005 From Machinery

1шт.

30.0 Foot Header

1шт.

REF

INSTRUCTION

Kit, Bean Saver

1шт.

Order 87428007 From Machinery

1шт.

36.0 Foot Header

1шт.

REF

INSTRUCTION

Kit, Bean Saver

1шт.

39.0 Foot Header

1шт.

Order 87444615 From Machinery

1шт.

1

87424193

SUPPORT

Bean Saver, Connector

14шт.

21.0 Foot Header

1шт.

1

87424193

SUPPORT

Bean Saver, Connector

16шт.

25.0 Foot Header

1шт.

1

87424193

SUPPORT

Bean Saver, Connector

19шт.

30.0 Foot Header

1шт.

1

87424193

SUPPORT

Bean Saver, Connector

25шт.

36.0 Foot Header

1шт.

1

87424193

SUPPORT

Bean Saver, Connector

27шт.

39.0 Foot Header

1шт.

2

87424186

SUPPORT

Bean Saver, Deflector, 533 mm (21 in) Long

1шт.

36.0 Foot Header

1шт.

2

87424187

SUPPORT

Bean Saver, Deflector, 609 mm (24 in) Long

1шт.

21.0 Foot Header

1шт.

2

87424187

SUPPORT

Bean Saver, Deflector, 609 mm (24 in) Long

2шт.

39.0 Foot Header

1шт.

2

87424188

SUPPORT

Bean Saver, Deflector, 838 mm (33 in) Long

1шт.

36.0 and 39.0 Foot Header

1шт.

2

87424189

SUPPORT

Bean Saver, Deflector, 913 mm (36-3/4 in) Long

5шт.

21.0, 36.0 and 39.0 Foot Header

1шт.

2

87424189

SUPPORT

Bean Saver, Deflector, 913 mm (36-3/4) Long

7шт.

25.0 Foot Header

1шт.

2

87424190

SUPPORT

Bean Saver, Deflector, 947 mm (37-1/4 in) Long

4шт.

30.0, 36.0 and 39.0 Foot Header

1шт.

2

87424191

SUPPORT

Bean Saver, Deflector, 990 mm (39 in) Long

1шт.

21.0, 25.0, 36.0 and 39.0 Foot Header

1шт.

2

87424191

SUPPORT

Bean Saver, Deflector, 990 mm (39 in) Long

3шт.

30.0 Foot Header

1шт.

2

87424192

SUPPORT

Bean Saver, Deflector, 1066 mm (42 in) Long

1шт.

30.0 Foot Header

1шт.

3

REF

INSTRUCTION

CUTTERBAR

1шт.
