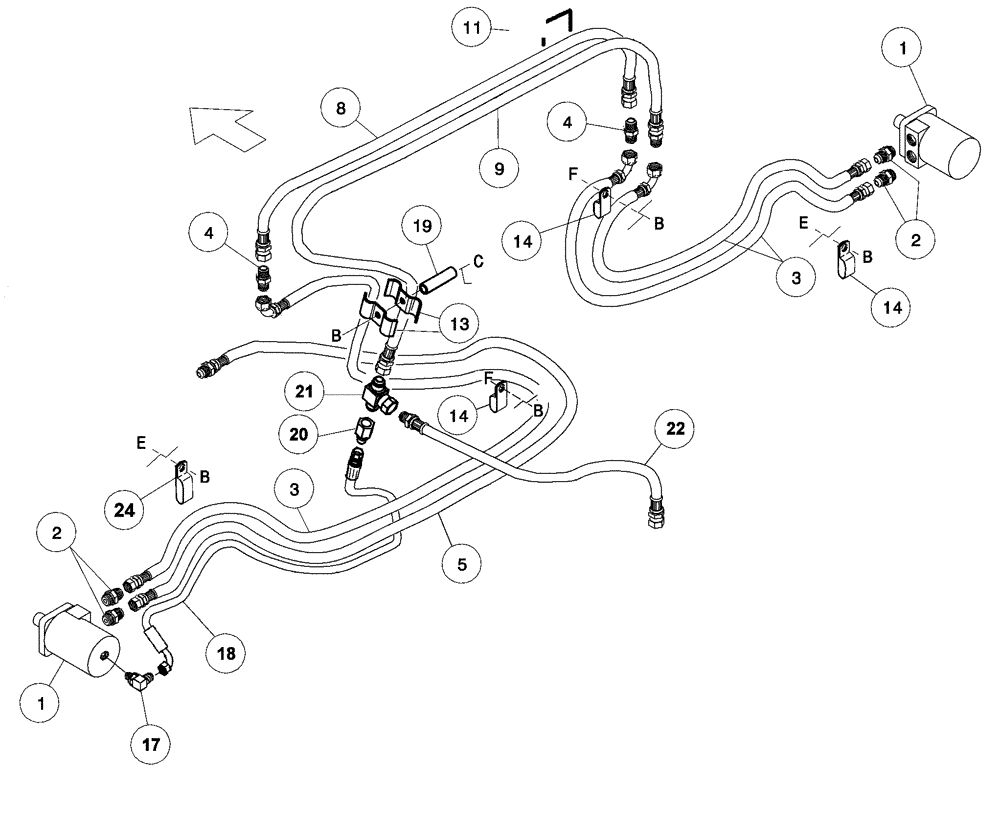

Запчасти Case IH 2052 (09-02) - HYDRAULIC CIRCUIT - DRAPER DRIVE, TWO-DECK (03) - CHASSIS/MOUNTED EQUIPMENT

1

392739A1

HYDRAULIC MOTOR

Draper Drive, Inc. 126-124

2шт.

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

429255A1

SEAL KIT

Hydraulic Motor, Replaces 338359A1

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

4шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

3

345968A1

HOSE

Draper Motor, Except Pressure to Left Motor, 2680 mm (105-1/2 in)

3шт.

21.0 Foot Header

1шт.

3

345971A1

HOSE

Draper Motor, Except Pressure to Left Motor, 3325 mm (130-29/32 in)

3шт.

25.0 Foot Header

1шт.

3

87408926

HOSE

Draper Motor, Except Pressure to Left Motor, 2520 mm (99-7/32 in)

3шт.

30.0 Foot Header

1шт.

3

87458790

HOSE

Draper Motor, Except Pressure to Left Motor, 5320 mm (209-7/16 in)

3шт.

36.0 Foot Header

1шт.

3

87446882

HOSE

Draper Motor, Except Pressure to Left Motor

3шт.

39.0 Foot Header

1шт.

4

218-435

HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male JIC

3шт.

5

87408986

HOSE

Draper Motor Pressure, 2520 mm (99-7/32 in)

1шт.

21.0 Foot Header

1шт.

5

87458791

HOSE

Draper Motor Pressure, 3300 mm (129-59/64 in)

1шт.

25.0 Foot Header

1шт.

5

87458787

HOSE

Draper Motor Pressure, 3740 mm (147-1/4 in)

1шт.

30.0 Foot Header

1шт.

5

87458792

HOSE

Draper Motor Pressure, 4450 mm (175-3/16 in)

1шт.

36.0 Foot Header

1шт.

5

87408944

HOSE

Draper Motor Pressure, 5000 mm (196-27/32 in)

1шт.

39.0 Foot Header

1шт.

8

345964A1

HOSE

Across Opening From Left Motor, 2900 mm (114-11/64 in)

1шт.

9

87408932

HOSE

Across Opening, Return From Right Motor, 3300 mm (129-59/64 in)

1шт.

11

369995A1

SEAL

Edge Trim

2шт.

11

346052A1

EDGE

Trim

2шт.

30.0 and 36.0 Foot Header

1шт.

13

345999A1

SUPPORT

2шт.

14

470375C1

CLAMP,1", Insul, 3/8" Bolt

Right-Hand

4шт.

21.0 Foot Header

1шт.

14

470375C1

CLAMP,1", Insul, 3/8" Bolt

Right-Hand

5шт.

25.0 Foot Header

1шт.

14

470375C1

CLAMP,1", Insul, 3/8" Bolt

Right-Hand

7шт.

30.0 and 36.0 Foot Header

1шт.

14

470375C1

CLAMP,1", Insul, 3/8" Bolt

Right-Hand

8шт.

39.0 Foot Header

1шт.

17

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

1шт.

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

18

87408988

HOSE

Case Drain, 2620 mm (103-9/64 in)

1шт.

21.0 Foot Header

1шт.

18

87408930

HOSE

Case Drain, 3200 mm (126 in)

1шт.

25.0 Foot Header

1шт.

18

87408929

HOSE

Case Drain, 3840 mm (151-3/16 in)

1шт.

30.0 Foot Header

1шт.

18

87458786

HOSE

Case Drain, 4450 mm (175-3/16 in)

1шт.

36.0 Foot Header

1шт.

18

87446883

HOSE

Case Drain

1шт.

39.0 Foot Header

1шт.

19

87408990

SPACER

1шт.

20

392908A1

FITTING

5/8 x 3/8

1шт.

21

87407793

FITTING

Tee, 5/8

1шт.

22

87408925

HOSE

Return, To Adapter Valve Block, 1200 mm (49-1/4 in)

1шт.

24

338322A1

CLIP

Left-Hand

2шт.

21.0 Foot Header

1шт.

24

338322A1

CLIP

Left-Hand

3шт.

25.0 Foot Header

1шт.

24

338322A1

CLIP

Left-Hand

4шт.

30.0 Foot Header

1шт.

24

338322A1

CLIP

Left-Hand

5шт.

36.0 and 39.0 Foot Header

1шт.

25

396009A1

HOSE

4150 mm (163-3/8 in)

1шт.

30.0 Foot Header

1шт.

a

433-624

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

1шт.

b

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

c

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

1шт.

e

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

1шт.

f

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.
