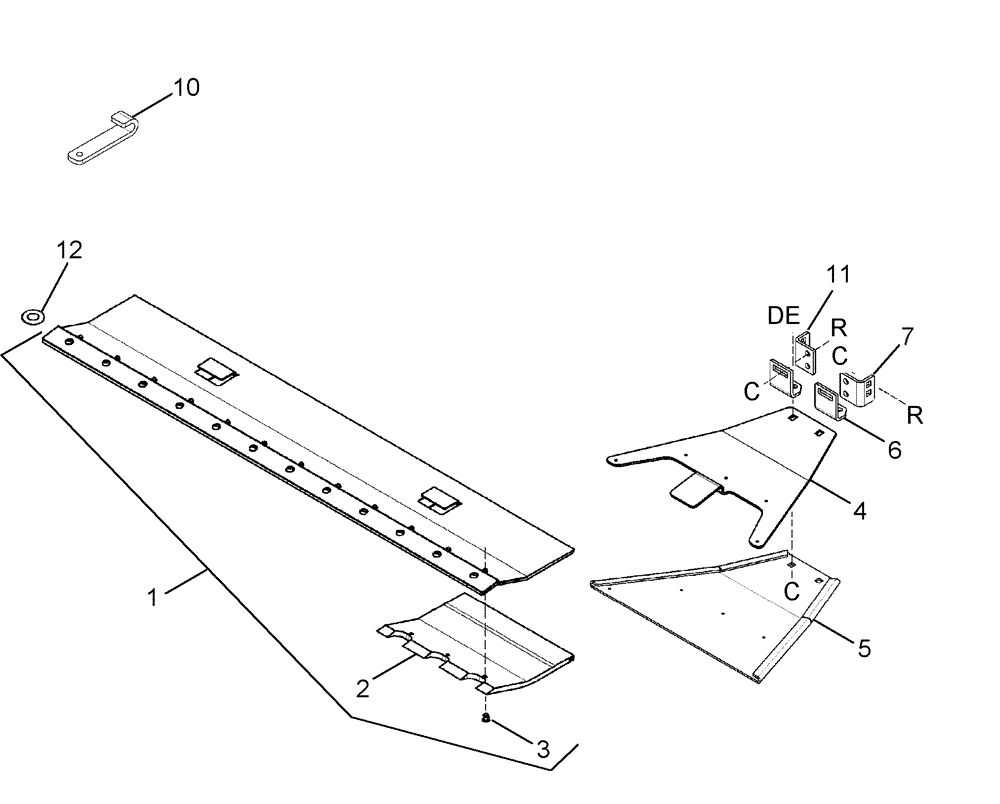

Запчасти Case IH 2052 (09-33) - CUTTERBAR POLY AND INNER SHOES - BSN CCC0014710 (03) - CHASSIS/MOUNTED EQUIPMENT

REF

INSTRUCTION

KIT, CUTTERBAR WEAR STRIPS AND INBOARD SHOES

1шт.

Order 87403517 From Machinery

1шт.

21.0 Foot Header

1шт.

REF

INSTRUCTION

KIT, CUTTERBAR WEAR STRIPS AND INBOARD SHOES

1шт.

Order 87403518 From Machinery

1шт.

25.0 Foot Header

1шт.

REF

INSTRUCTION

KIT, CUTTERBAR WEAR STRIPS AND INBOARD SHOES

1шт.

Order 87403519 From Machinery

1шт.

30.0 Foot Header

1шт.

REF

INSTRUCTION

KIT, CUTTERBAR WEAR STRIPS AND INBOARD SHOES

1шт.

Order 87403520 From Machinery

1шт.

36.0 Foot Header

1шт.

REF

INSTRUCTION

KIT, CUTTERBAR WEAR STRIPS AND INBOARD SHOES

1шт.

39.0 Foot Header

1шт.

Order 87444612 From Machinery

1шт.

1

87422102

BAR PLATE

Inc. 4 of Ref. 2 (9 in), 912 mm Long, 2 Tab

1шт.

21.0 Foot Header

1шт.

30.0 Foot Header

1шт.

1

87422102

BAR PLATE

Inc. 4 of Ref. 2 (9 in), 912 mm Long, 2 Tab

4шт.

25.0 Foot Header

1шт.

1

87422100

BAR PLATE

Inc. 4 of Ref. 2 (9 in), 912 mm Long, 2 Tabs and Notched Steel

1шт.

39.0 Foot Header, Right-Hand Outboard Leg

1шт.

1

87422103

BAR PLATE

Inc. 4 of Ref. 2 (9 in), 912 mm Long, 3 Tab

3шт.

21.0 Foot Header

1шт.

1

87422103

BAR PLATE

Inc. 4 of Ref. 2 (9 in), 912 mm Long, 3 Tab

2шт.

30.0 Foot Header

1шт.

1

87422103

BAR PLATE

Inc. 4 of Ref. 2 (9 in), 912 mm Long, 3 Tab

4шт.

36.0 Foot Header

1шт.

1

87422103

BAR PLATE

Inc. 4 of Ref. 2 (9 in), 912 mm Long, 3 Tab

3шт.

39.0 Foot Header

1шт.

1

87422107

BAR PLATE

Inc. 3 of Ref. 2 (9 in), 684 mm Long

4шт.

1

87422107

BAR PLATE

Inc. 3 of Ref. 2 (9 in), 684 mm Long

7шт.

30.0 Foot Header

1шт.

1

87422107

BAR PLATE

Inc. 3 of Ref. 2 (9 in), 684 mm Long

6шт.

36.0 Foot Header

1шт.

1

87422107

BAR PLATE

Inc. 3 of Ref. 2 (9 in), 684 mm Long

9шт.

39.0 Foot Header

1шт.

1

87422108

BAR PLATE

Inc. 2 of Ref. 2 (6 in), 303 mm Long

1шт.

30.0 and 36.0 Foot Header

1шт.

1

87422108

BAR PLATE

Inc. 2 of Ref. 2 (6 in), 303 mm Long

2шт.

39.0 Foot Header

1шт.

1

87422116

BAR PLATE

Inc. 1 of Ref. 2 (6 in), 150 mm Long

1шт.

25.0 and 30.0 Foot Header

1шт.

1

87422132

BAR PLATE

Inc. 2 of Ref. 2 (9 in), 455 mm Long

2шт.

25.0 Foot Header

1шт.

1

87422132

BAR PLATE

Inc. 2 of Ref. 2 (9 in), 455 mm Long

1шт.

36.0 Foot Header

1шт.

1

87422135

BAR PLATE

Inc. 5 of Ref. 2 (9 in), 1140 mm Long

1шт.

30.0 and 39.0 Foot Header

1шт.

1

87422135

BAR PLATE

Inc. 5 of Ref. 2 (9 in), 1140 mm Long

2шт.

36.0 Foot Header

1шт.

2

87422109

BAR PLATE

Poly, 9 in, (Shown)

28шт.

21.0 Foot Header

1шт.

2

87422109

BAR PLATE

Poly, 9 in, (Shown)

32шт.

25.0 Foot Header

1шт.

2

87422109

BAR PLATE

Poly, 9 in, (Shown)

38шт.

30.0 Foot Header

1шт.

2

87422109

BAR PLATE

Poly, 9 in, (Shown)

46шт.

36.0 Foot Header

1шт.

2

87422109

BAR PLATE

Poly, 9 in, (Shown)

48шт.

39.0 Foot Header

1шт.

2

87422113

BAR PLATE

Poly, 6 in

2шт.

25.0 and 36.0 Foot Header

1шт.

2

87422113

BAR PLATE

Poly, 6 in

3шт.

30.0 Foot Header

1шт.

2

87422113

BAR PLATE

Poly, 6 in

4шт.

39.0 Foot Header

1шт.

3

87532227

RIVET,Button, 4.8mm OD x 12.7mm L

Pop, Install From Bottom

94шт.

21.0 Foot Header

1шт.

3

87532227

RIVET,Button, 4.8mm OD x 12.7mm L

Pop, Install From Bottom

110шт.

25.0 Foot Header

1шт.

3

87532227

RIVET,Button, 4.8mm OD x 12.7mm L

Pop, Install From Bottom

140шт.

30.0 Foot Header

1шт.

3

87532227

RIVET,Button, 4.8mm OD x 12.7mm L

Pop, Install From Bottom

162шт.

36.0 Foot Header

1шт.

3

87532227

RIVET,Button, 4.8mm OD x 12.7mm L

Pop, Install From Bottom

199шт.

39.0 Foot Header

1шт.

4

87446879

SHOE

Skid (Shown), Replaces 87408749

2шт.

4

87446879

SHOE

Skid (Shown), Replaces 87408749

4шт.

30.0, 36.0 and 39.0 Foot Header

1шт.

5

87422082

WEAR STRIP

Poly Skid (Shown)

2шт.

5

87422082

WEAR STRIP

Poly Skid (Shown)

4шт.

30.0, 36.0 and 39.0 Foot Header

1шт.

6

87422067

MOUNTING PARTS

Skid, Shoe

4шт.

6

87422067

MOUNTING PARTS

Skid, Shoe

8шт.

30.0, 36.0 and 39.0 Foot Header

1шт.

7

87422070

MOUNTING PARTS

Skid, Shoe, Left

2шт.

7

87422070

MOUNTING PARTS

Skid, Shoe, Left

4шт.

30.0, 36.0 and 39.0 Foot Header

1шт.

10

87423174

RETAINER

J-Bar

1шт.

30.0, 36.0 and 39.0 Foot Header with Transport

1шт.

11

87428520

ANGLE

Skid Shoe, Right

2шт.

11

87428520

ANGLE

Skid Shoe, Right

4шт.

30.0, 36.0 and 39.0 Foot Header

1шт.

12

495-11047

WASHER,7/16", SAE

Used at First Guard Bolt on Each End

2шт.

36.0 and 39.0 Foot Header

1шт.

c

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1шт.

d

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

e

425-108

NUT,1/2" - 13, Gr 5

1шт.

r

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.
