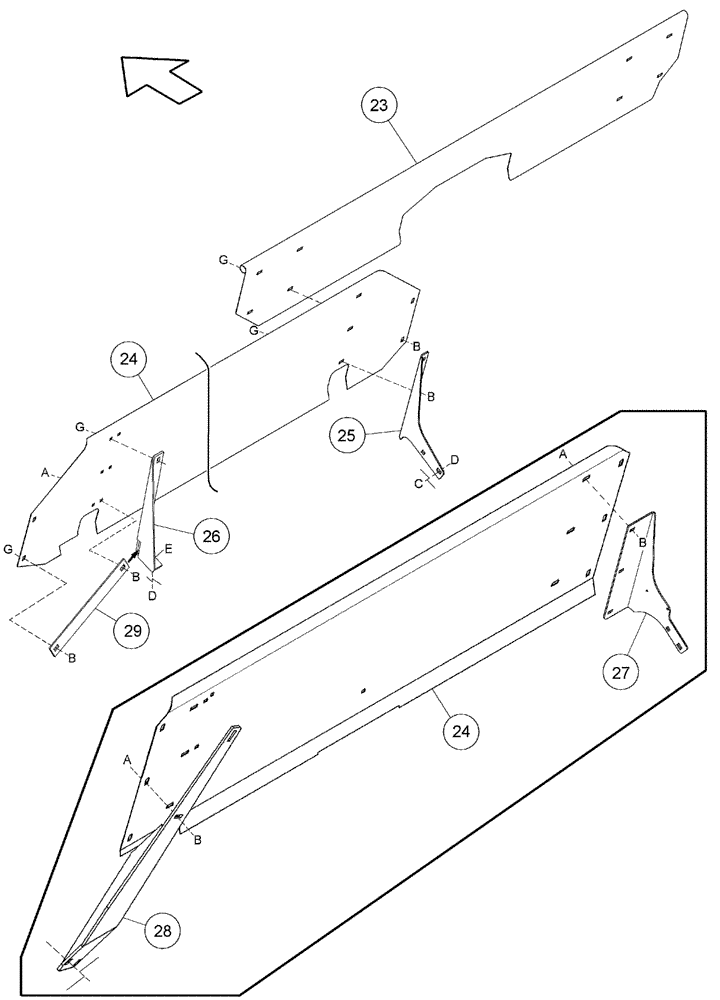

Запчасти Case IH 2052 (09-29) - UPPER CROSS AUGER SHIELDING, EUROPEAN HEADERS (03) - CHASSIS/MOUNTED EQUIPMENT

REF

INSTRUCTION

KIT, UPPER CROSS AUGER

1шт.

Order 87402772 From Machinery

1шт.

21.0 Foot Header

1шт.

REF

INSTRUCTION

KIT, UPPER CROSS AUGER

1шт.

Order 87402773 From Machinery

1шт.

25.0 Foot Header

1шт.

REF

INSTRUCTION

KIT, UPPER CROSS AUGER

1шт.

Order 87402774 From Machinery

1шт.

30.0 Foot Header

1шт.

REF

INSTRUCTION

KIT, UPPER CROSS AUGER

1шт.

Order 87402775 From Machinery

1шт.

36.0 Foot Header

1шт.

23

87408810

SHIELD

Center

1шт.

24

87408817

SHIELD

Outer

2шт.

21.0 Foot Header

1шт.

24

87408809

SHIELD

2шт.

25.0 Foot Header

1шт.

24

87408829

SHIELD

4шт.

30.0 Foot Header

1шт.

25

87408819

ARM

Center (Shown)

2шт.

25

87408826

SUPPORT

Shield, Inner

2шт.

30.0 Foot Header

1шт.

26

87408815

SUPPORT

Outer

2шт.

27

87408827

SUPPORT

LH Outer Shield

1шт.

30.0 Foot Header

1шт.

27

87408828

SUPPORT

RH Outer Shield

1шт.

30.0 Foot Header

1шт.

28

87409009

SUPPORT

LH End Shield

1шт.

30.0 Foot Header

1шт.

28

87409010

SUPPORT

RH End Shield

1шт.

30.0 Foot Header

1шт.

29

87408816

BAR

2шт.

a

33-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

b

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

c

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1шт.

d

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

e

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

g

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

1шт.
