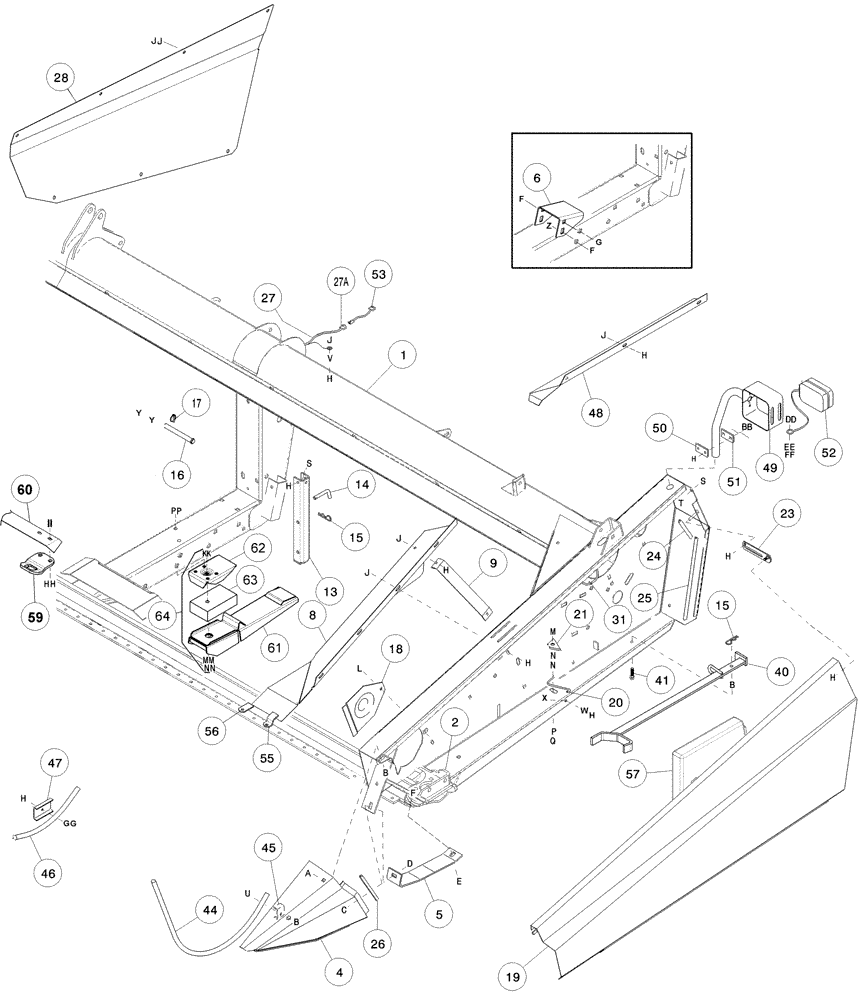

Запчасти Case IH 2052 (09-01) - MAIN FRAME, LIGHTS AND ATTACHMENTS (03) - CHASSIS/MOUNTED EQUIPMENT

1

NSS

NOT SOLD SEPARAT

Frame Assy

1шт.

87409005

CUTTERBAR,1300mm L

1300 mm (4-1/3 ft), Service Repair Only

1шт.

Welding Jig 451175A1 Also Required

1шт.

2

346069A1

SUPPORT

Gearbox, Single Sickle

1шт.

4

87408983

DIVIDER

Left-Hand, Red

1шт.

4

87408992

DIVIDER

Right-Hand, Single Sickle, Inc. Reflector, Red

1шт.

5

346053A1

SHOE

Skid

2шт.

6

87408727

GUIDE

Adapter Linkage, Serial Range: -CCC013002

2шт.

8

395821A1

DEFLECTOR

Left-Hand, Approx. 7 in Wide at Cutterbar

1шт.

8

395822A1

DEFLECTOR

Right-Hand, Approx. 7 in Wide at Cutterbar

1шт.

9

346056A1

SUPPORT

2шт.

13

87446867

CHANNEL

Header Support

1шт.

14

825980C1

PIN

L

1шт.

15

591107R1

COTTER PIN

Hair

2шт.

16

87457991

PIN

3/4 x 6-3/4, Replaces 87446889

2шт.

17

341198A1

PIN

Lynch

1шт.

18

338746A1

SHIELD

Gearbox

1шт.

19

87407639

SHIELD

Left-Hand, Red With Case-IH Decals

1шт.

20

346054A1

SPRING

Shield Latch

1шт.

21

346055A1

SUPPORT

Spring

1шт.

23

338586A1

BAR

Left-Hand

1шт.

24

346050A1

EDGE

120 mm (4-3/4 in), Upper Rear

1шт.

25

346051A1

EDGE

400 mm (15-3/4 in), Lower Rear

1шт.

26

346052A1

EDGE

200 mm (7-7/8 in)

1шт.

27

345953A1

HARNESS

Wiring, Header With Manual Deck Shift

1шт.

21.0 and 25.0 Foot Header

1шт.

27

345954A1

HARNESS

Wiring, Header With Manual Deck Shift

1шт.

30.0, 36.0 and 39.0 Foot Header

1шт.

27a

1281491C1

PACKAGE

Electrical Connector, 3-Way, Includes Male and Female Connectors

1шт.

28

87407642

SHIELD

Right-Hand, Red With Case-IH Decals

1шт.

31

1337510C1

CLIP

Harness

2шт.

40

443621A1

TOOL ASSY.

Guard Straightener

1шт.

41

363053A1

BOLT

Special

1шт.

44

345960A1

DIVIDER

1070 mm (42-1/8 in), Rod

2шт.

45

345961A1

CLAMP

Divider Rod

2шт.

46

345962A1

DIVIDER

425 mm (16-3/4 in), Rod

2шт.

47

345963A1

CLAMP

Storage

1шт.

48

431152A1

DEFLECTOR

L/H, Approx. 3" wide at Cutter Bar

1шт.

48

431153A1

DEFLECTOR

R/H, Approx. 3" wide at Cutter Bar

1шт.

49

352626A1

SUPPORT

Light, Amber, Left-Hand

1шт.

49

352627A1

SUPPORT

Light, Amber, Right-Hand

1шт.

50

352628A1

PLATE

Steel

2шт.

51

352630A1

PLATE

Plastic

2шт.

52

347502A1

LAMP

Amber, Includes Hardware

2шт.

A41264

BULB,#1156, 12V

2шт.

53

REF

INSTRUCTION

HARNESS, extension

1шт.

55

395998A1

SEAL RETAINER

Deflector, (R/H Side Only)

2шт.

55

395998A1

SEAL RETAINER

Deflector, (R/H Side Only) With Stub Guards

1шт.

56

87407811

RETAINER

Deflector, LH Side With Stub Guards

1шт.

57

401981A1

BOX

Manual Storage

1шт.

59

450921A1

RETAINER

Combine Adapter Feed Pan, Serial Range: Welded-Cutterbar

2шт.

60

87408771

DEFLECTOR

Feed Pan Retainer

2шт.

61

87446860

SUPPORT ASSY.

Rubber Isoator, Start Serial: CCC013002

2шт.

62

87446862

COVER

Rubber Isolator, Start Serial: CCC013002

2шт.

63

87446871

RUBBER PAD

Isolator, Start Serial: CCC013002

2шт.

64

87446861

SUPPORT ASSY.

Includes 1 each of Items 61 - 63 and Hardware KK, MM and NN, Start Serial: CCC013002

2шт.

a

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1шт.

b

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

c

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1шт.

d

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

e

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

1шт.

f

231-53410

FLANGE NUT,Flg, 5/8"-11

1шт.

g

48083224

BOLT

1шт.

h

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

j

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

1шт.

l

409-768

BOLT,Hex Flg, 3/8" - 16 x 1/2", Spcl

1шт.

m

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

1шт.

n

492-11062

BEARING WASHER,5/8"

1шт.

p

495-11066

WASHER,5/8", SAE

1шт.

q

231-41410

NUT,5/8"-11, GB

1шт.

r

492-11038

LOCK WASHER,3/8"

1шт.

s

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

t

231-4146

NUT,3/8"-16, GB

1шт.

u

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1шт.

v

493-21039

LOCK WASHER,Int Tooth, 3/8"

1шт.

w

425-106

NUT,3/8"-16, Cl 5

1шт.

x

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

y

495-81042

WASHER,25/32" x 1 1/2" x .120"

1шт.

z

434-1024

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 1 1/2", Gr 5

1шт.

bb

433-640

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

1шт.

dd

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1шт.

ee

493-41026

LOCK WASHER,Ext Tooth, 1/4"

1шт.

ff

230-4244

LOCK NUT,1/4"-20, GA

1шт.

gg

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

1шт.

hh

231-5146

FLANGE NUT,3/8"-16

1шт.

ii

358047A1

SCREW,Torx, Truss HD, 3/8" - 16 x 1/2", Gr 5

Truss Head Torx, 3/8 x 1/2

1шт.

jj

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

1шт.

kk

433-848

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

1шт.

mm

87446842

WASHER

Flat, 13.5 mm ID x 47 mm OD

1шт.

nn

231-1448

NUT,1/2"-13, GB

1шт.

pp

86511946

SCREW,Phillips Drive, Pan HD, 3/8" - 16 x 3/4"

1шт.
