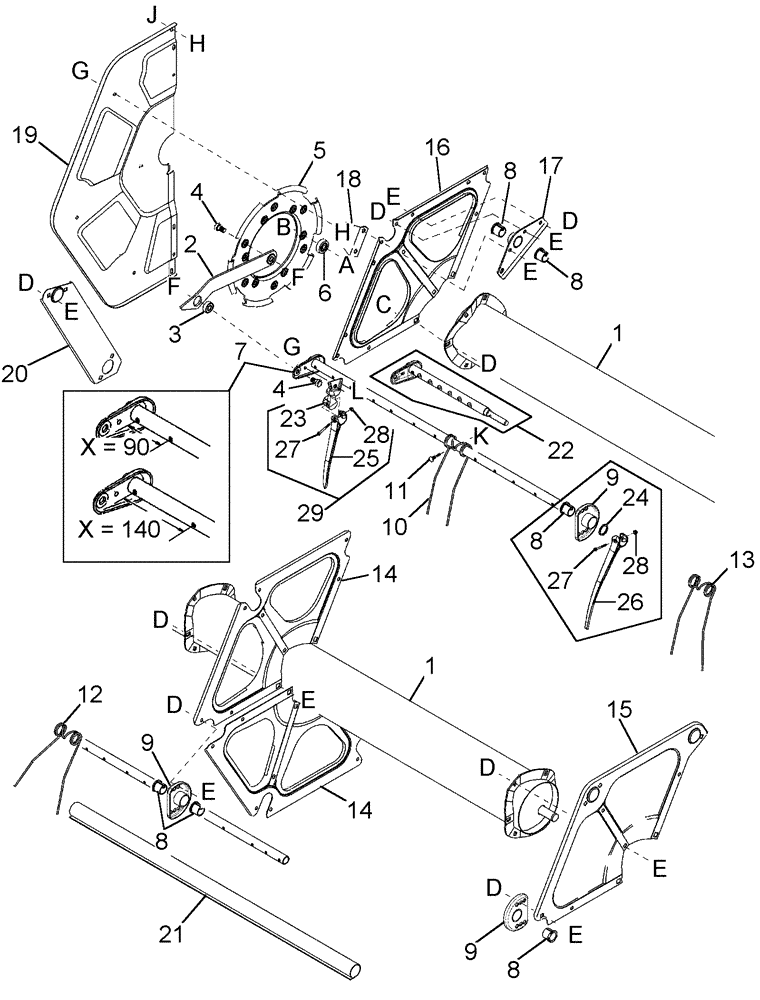

Запчасти Case IH 2052 (09-24) - PICKUP REEL, 6 BAT 30.0 FOOT HEADERS (03) - CHASSIS/MOUNTED EQUIPMENT

1

345867A1

TUBE

Center, Left-Hand

1шт.

1

345879A1

TUBE,4198 mm Length

Center, Right-Hand

1шт.

2

344796A1

ARM

Inc. 3 (2)

12шт.

3

344806A1

BALL BEARING,17 mm ID x 40 mm OD x 12 mm

Ball

24шт.

4

347305A1

LOCK BOLT

Shoulder

24шт.

When Replacing Bolt Item 4, Also Replace Item F, Nut 129-391

1шт.

5

346552A1

RING

Cam, RH

2шт.

6

344805A1

BALL BEARING,15.9 mm ID x 50.81 mm OD x 15 mm

Ball

12шт.

7

345917A1

TUBE

Pickup Finger, Outboard Stagger (X=90 mm)

6шт.

7

345916A1

TUBE

Pickup Finger, Inboard Stagger (X=140 mm)

6шт.

8

345853A1

BUSHING,31.75mm ID x 45mm OD x 34mm L

With Steel Fingers

93шт.

9

382125A1

HOUSING

Bushing

42шт.

10

345854A1

TINE

With Steel Fingers

252шт.

11

346553A1

BOLT

264шт.

12

347510A1

FINGER

Right-Hand End of Left-Hand Reel

6шт.

13

347511A1

FINGER

Left-Hand End of Right-Hand Reel

6шт.

14

345872A1

DISC

1/3

15шт.

15

345873A1

DISC

1/3, Tail End

3шт.

16

345855A1

DISC

1/3, Cam End

6шт.

17

345857A1

HOUSING

Cam End

12шт.

18

345876A1

SUPPORT

End Shield

12шт.

19

345877A1

SHIELD

Cam End

4шт.

20

345875A1

SHIELD

Inboard End of Right-Hand Split Reel

6шт.

21

430323A1

COVER

1805 mm (71-1/8)

1шт.

345931A1

COVER

100 mm (4 in)

6шт.

22

345932A1

FINGER

Repair Kit, With Steel Fingers

1шт.

22

410833A1

KIT

Repair Kit, With Plastic Fingers

1шт.

23

NSS

NOT SOLD SEPARAT

Support End Finger, Order Ref. 29

12шт.

24

347528A1

WASHER

With Steel Fingers

3шт.

25

444558A1

FINGER

Plastic, End, Steel Finger Reel

12шт.

26

381139A1

TINE

Plastic, With Steel Finger Reel

9шт.

27

463-31028

SCREW,Hex Wash Hd, #10-24 x 1 3/4"

With Steel Finger Reel

15шт.

28

86632551

NUT,#10-24, GB

With Steel Finger Reel

15шт.

29

444557A1

FINGER

Assembly, Inc. 1 Each Of 23, 25, 27, 28, G And L

1шт.

a

129-390

JAM NUT,Jam, 5/8"-11, G5

1шт.

b

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

1шт.

c

358046A1

SCREW,Torx, Truss HD, 1/2" - 13 x 1", Gr 5

1шт.

d

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

e

358045A1

SCREW,Torx, Truss HD, 1/2" - 13 x 3/4", Gr 5

1шт.

f

129-391

JAM NUT,Jam, 5/8"-18, G5

1шт.

g

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

1шт.

h

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

j

358047A1

SCREW,Torx, Truss HD, 3/8" - 16 x 1/2", Gr 5

1шт.

k

231-4145

NUT,5/16"-18, GB

1шт.

l

231-5146

FLANGE NUT,3/8"-16

1шт.
