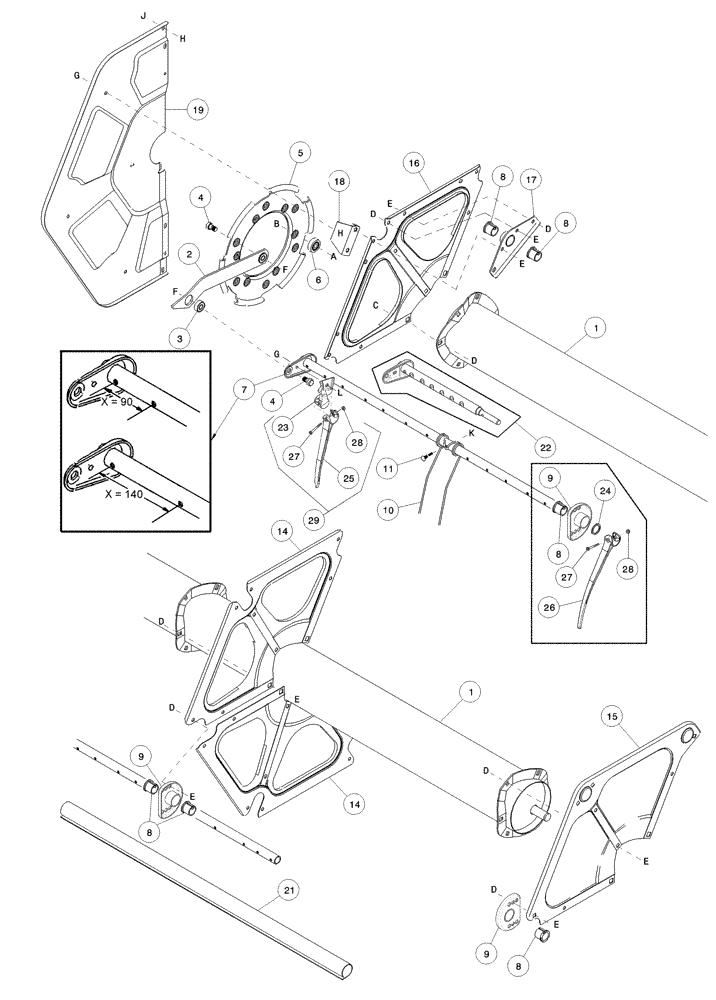

Запчасти Case IH 2052 (09-22) - PICKUP REEL, 21.0 AND 25.0 FOOT HEADERS (03) - CHASSIS/MOUNTED EQUIPMENT
№
Артикул
Название
Примечание
Количество
1
345870A1
TUBE,6233 mm Length
Center
1шт.
21.0 Foot Header
1шт.
1
345871A1
TUBE,7452 mm Length
Center
1шт.
25.0 Foot Header
1шт.
2
344796A1
ARM
Inc. 3 (2)
6шт.
3
344806A1
BALL BEARING,17 mm ID x 40 mm OD x 12 mm
Ball
12шт.
4
347305A1
LOCK BOLT
Shoulder
12шт.
When Replacing Bolt Item 4, Also Replace Item F, Nut 129-391
1шт.
5
346552A1
RING
Cam, RH
1шт.
6
344805A1
BALL BEARING,15.9 mm ID x 50.81 mm OD x 15 mm
Ball
6шт.
7
345917A1
TUBE
Pickup Finger, Outboard Stagger (X=90 mm)
3шт.
21.0 Foot Header
1шт.
7
345920A1
TUBE
Pickup Finger, Outboard Stagger (X=90 mm)
3шт.
25.0 Foot Header
1шт.
7
345918A1
TUBE
Pickup Finger, Inboard Stagger (X=140 mm)
3шт.
21.0 Foot Header
1шт.
7
345921A1
TUBE
Pickup Finger, Inboard Stagger (X=140 mm), Left Hand Reel
3шт.
25.0 Foot Header
1шт.
8
345853A1
BUSHING,31.75mm ID x 45mm OD x 34mm L
With Steel Fingers
51шт.
21.0 Foot Header
1шт.
8
345853A1
BUSHING,31.75mm ID x 45mm OD x 34mm L
With Steel Fingers
63шт.
25.0 Foot Header
1шт.
9
345878A1
HOUSING
Bushing
24шт.
21.0 Foot Header
1шт.
9
345878A1
HOUSING
Bushing
30шт.
25.0 Foot Header
1шт.
10
345854A1
TINE
With Steel Fingers
174шт.
21.0 Foot Header
1шт.
10
345854A1
TINE
With Steel Fingers
216шт.
25.0 Foot Header
1шт.
11
346553A1
BOLT
Special
174шт.
25.0 Foot Header
1шт.
11
346553A1
BOLT
Special
216шт.
25.0 Foot Header
1шт.
14
345872A1
DISC
1/3
9шт.
21.0 Foot Header
1шт.
14
345872A1
DISC
1/3
12шт.
25.0 Foot Header
1шт.
15
345873A1
DISC
1/3, Tail End
3шт.
16
345855A1
DISC
1/3, Cam End
3шт.
17
345857A1
HOUSING
Cam End
6шт.
18
345876A1
SUPPORT
End Shield
6шт.
19
345877A1
SHIELD
Cam End
2шт.
21
430323A1
COVER
1805 mm (71-1/8)
1шт.
22
345932A1
FINGER
Repair Kit, With Steel Fingers
1шт.
22
410833A1
KIT
Repair Kit, With Plastic Fingers
1шт.
23
NSS
NOT SOLD SEPARAT
Support End Finger, Order Ref. 29
6шт.
24
347528A1
WASHER
With Steel Fingers
3шт.
24
347528A1
WASHER
With Plastic Fingers
24шт.
21.0 Foot Header
1шт.
24
347528A1
WASHER
With Plastic Fingers
30шт.
25.0 Foot Header
1шт.
25
444558A1
FINGER
Plastic, End, Steel Finger Reel
6шт.
25
444558A1
FINGER
Plastic, End, Without Split Reel, With Plastic Fingers
6шт.
26
381139A1
TINE
Plastic, With Plastic Finger Reel
372шт.
21.0 Foot Header
1шт.
26
381139A1
TINE
Plastic, With Plastic Finger Reel
450шт.
25.0 Foot Header
1шт.
26
381139A1
TINE
Plastic, With Steel Finger Reel
9шт.
27
463-31028
SCREW,Hex Wash Hd, #10-24 x 1 3/4"
With Plastic Finger Reel
378шт.
21.0 Foot Header
1шт.
27
463-31028
SCREW,Hex Wash Hd, #10-24 x 1 3/4"
With Plastic Finger Reel
456шт.
25.0 Foot Header
1шт.
27
463-31028
SCREW,Hex Wash Hd, #10-24 x 1 3/4"
With Steel Finger Reel
15шт.
28
231-14409
NUT,#10-24, GB
With Plastic Finger Reel
378шт.
21.0 Foot Header
1шт.
28
231-14409
NUT,#10-24, GB
With Plastic Finger Reel
456шт.
25.0 Foot Header
1шт.
28
231-14409
NUT,#10-24, GB
With Steel Finger Reel
15шт.
29
444557A1
FINGER
Assembly, Inc. 1 Each Of 23, 25, 27, 28, G And L
1шт.
a
129-390
JAM NUT,Jam, 5/8"-11, G5
1шт.
b
413-1020
BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5
1шт.
c
358046A1
SCREW,Torx, Truss HD, 1/2" - 13 x 1", Gr 5
1шт.
d
231-5348
FLANGE NUT,Flg, 1/2"-13
1шт.
e
358045A1
SCREW,Torx, Truss HD, 1/2" - 13 x 3/4", Gr 5
1шт.
f
129-391
JAM NUT,Jam, 5/8"-18, G5
1шт.
g
434-612
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5
1шт.
j
358047A1
SCREW,Torx, Truss HD, 3/8" - 16 x 1/2", Gr 5
1шт.
k
231-4145
NUT,5/16"-18, GB
1шт.
l
231-5146
FLANGE NUT,3/8"-16
1шт.
