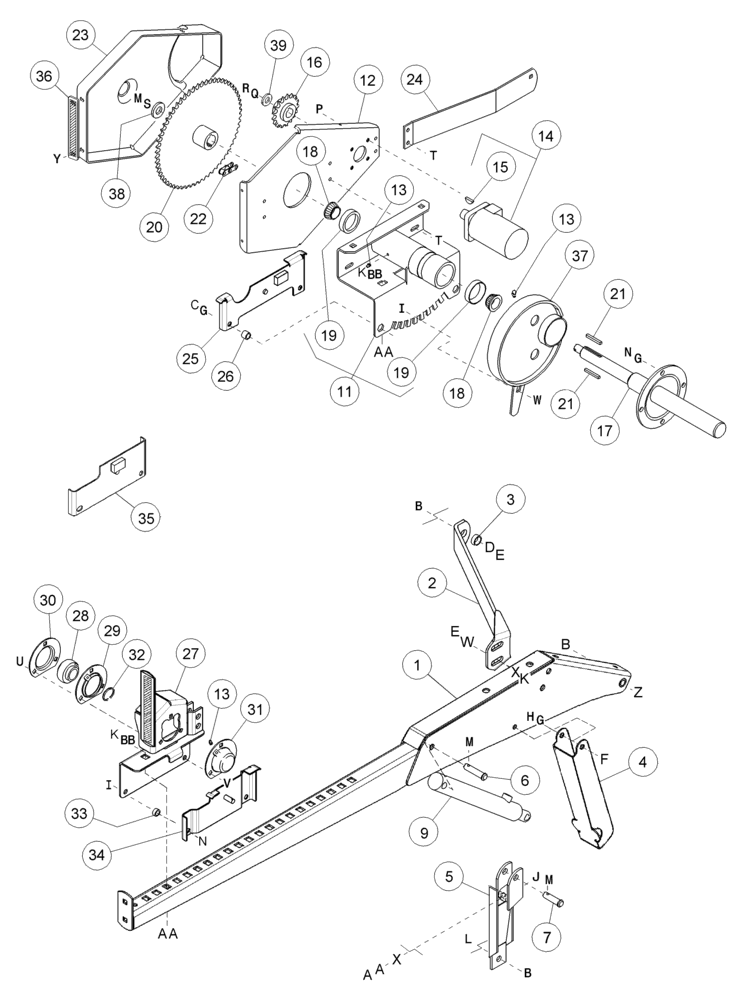

Запчасти Case IH 2052 (09-19) - REEL DRIVE AND SUPPORT ARMS (03) - CHASSIS/MOUNTED EQUIPMENT
№
Артикул
Название
Примечание
Количество
1
87408831
ARM
Reel Support, Left-Hand, Inc. Reflector
2шт.
2
429287A1
BRACE
2шт.
3
1276751C1
SPACER
2шт.
4
87408832
SUPPORT
Reel Arm Prop
2шт.
5
346074A1
SUPPORT
Cylinder Mount, Left-Hand
1шт.
5
346075A1
SUPPORT
Cylinder Mount, Right-Hand
1шт.
6
427-10300
CLEVIS PIN,5/8" x 4"
2шт.
7
427-10225
CLEVIS PIN,5/8" x 1 1/4"
5/8 x 2-1/4
2шт.
9
REF
INSTRUCTION
Cylinder, Reel Lift
1шт.
See Figures 09 -04, 09 -05, 09 -06
1шт.
11
87422092
SUPPORT
Inc. 651817R1 (2)
1шт.
12
346079A1
PLATE
1шт.
13
219-8
LUBE NIPPLE,1/4" - 28 NPTF
Without Bat Reel
3шт.
14
126686A1
MOTOR, HYDRAULIC
Inc. 126-124
1шт.
14
591447R
REMAN-STEERING VALVE
2052 DRAPER HEADER (4/03-), Reman for New PN 126686A1
1шт.
14
591447C
CORE-STEERING VALVE
Return Number
1шт.
429255A1
SEAL KIT
Replaces 338359A1
1шт.
15
126-124
WOODRUFF KEY,#15, 1/4" x 1", HT
1шт.
16
450912A1
SPROCKET
17 Tooth, Optional, High Speed Reel Drive
1шт.
16
346078A1
SPROCKET ASSY.
11 Tooth, High Torque Reel Drive
1шт.
17
346080A1
SHAFT
Reel Drive
1шт.
18
602958R91
BEARING ASSY,31.75 mm ID x 25.4 mm
2шт.
19
651817R1GV
BEARING CUP
Value, Bearing Cup
2шт.
20
345904A1
SPROCKET ASSY.
60 tooth, Without Split Reel
1шт.
21
T25070
KEY
1/4 x 1-57/64
2шт.
22
450913A1
CHAIN
#50 x 70 Pitches, Inc. 241-1315, Optional, High Speed Reel Drive
1шт.
22
346072A1
CHAIN (AG)
#50 x 68 Pitches, Inc. 241-1315, High Torque Reel Drive
1шт.
241-1315
LINK, CONNECTING
No. 50
1шт.
23
345912A1
SHIELD
Reel Drive Split
1шт.
24
345995A1
BAR
Hose Retainer
1шт.
25
345898A1
SUPPORT
Right-Hand, Fore And Aft, With Split Pick-up Reel
1шт.
26
345899A1
SPACER
Right-Hand, Fore And Aft, With Split Pick-up Reel
2шт.
27
87407609
SUPPORT
Left-Hand, Includes Reflector
1шт.
27
87456666
SUPPORT
Right-Hand, Includes Reflector, With Bat Reel
1шт.
28
362467A1
BALL BEARING
Includes Set Screw, Without Bat Reel
1шт.
28
362467A1
BALL BEARING
Includes Set Screw, With Bat Reel
2шт.
29
338336A1
FLANGE
Without Bat Reel
1шт.
29
338336A1
FLANGE
With Bat Reel
2шт.
30
338335A1
FLANGE
Without Bat Reel
1шт.
30
338335A1
FLANGE
With Bat Reel
2шт.
31
338337A1
COVER
Without Bat Reel
1шт.
31
338337A1
COVER
With Bat Reel
2шт.
32
100-11118
SNAP RING,#118, Ext
1шт.
33
345900A1
SPACER
Left-Hand, Fore And Aft
2шт.
33
345899A1
SPACER
Right-Hand, Fore And Aft, With Bat Reel
2шт.
34
345901A1
SUPPORT
Left-Hand, Fore And Aft
1шт.
35
398698A1
SUPPORT
Right-Hand, Fore And Aft, Outboard, With Bat Reel
1шт.
36
410680A1
PLATE
Amber, Without Split Reel
1шт.
37
346084A1
CAM
With Pick-up Reel Only
1шт.
38
1336594C1
WASHER
1шт.
39
126705A1
WASHER
7.1 x 32 x 3 mm
1шт.
a
425-1010
NUT,5/8"-11, G5
Pick-up Reel
1шт.
425-1410
JAM NUT,Jam, 5/8"-11, G5
Bat Reel
1шт.
b
231-53410
FLANGE NUT,Flg, 5/8"-11
1шт.
c
413-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5
1шт.
d
495-11066
WASHER,5/8", SAE
1шт.
e
413-1024
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5
1шт.
f
413-864
BOLT,Hex, 1/2" - 13 x 4", Gr 5
1шт.
g
80679
LOCK WASHER,1/20.507 CST ZND
1шт.
h
231-4118
LOCK NUT,1/2"-13, GB
1шт.
i
231-5348
FLANGE NUT,Flg, 1/2"-13
1шт.
j
346551A1
BOLT
5/8 x 7-1/2, Minimum 6-1/2 in Thread
1шт.
k
425-1010
NUT,5/8"-11, G5
1шт.
l
413-1020
BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5
1шт.
m
32-1220
COTTER PIN,3/16" x 1 1/4"
1шт.
n
413-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5
1шт.
p
358048A1
LOCK BOLT
3/8 NC x 3/4
1шт.
q
492-11025
LOCK WASHER,1/4"
1шт.
r
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
1шт.
s
425-1312
SLOTTED NUT,3/4"-16, G5
1шт.
t
281-54910
SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"
1шт.
u
33-616
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5
1шт.
w
434-816
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5
1шт.
x
96-21066
WASHER,21/32" x 1 5/16" x .150", HDN
1шт.
y
281-1488
SELF-TAP SCREW,Hex Wash Hd, 5/16" x 1/2"
1шт.
281-14812
SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"
1шт.
z
433-1072
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4 1/2", Gr 5
1шт.
aa
433-1020
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 1/4", Gr 5
1шт.
bb
492-11062
BEARING WASHER,5/8"
1шт.
Выбрано товаров: 81
