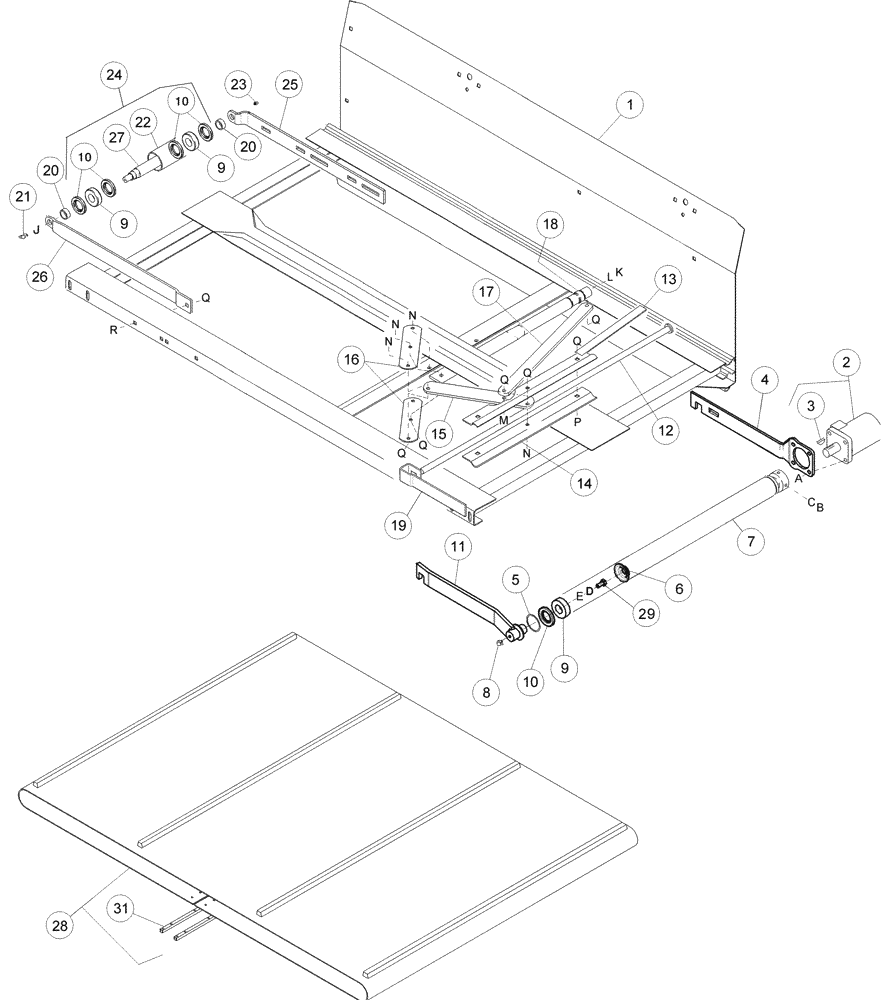

Запчасти Case IH 2052 (09-18) - DRAPERS, DRIVE AND TIGHTENER (03) - CHASSIS/MOUNTED EQUIPMENT

1

REF

INSTRUCTION

Deck, Draper

1шт.

See Figure 09 -17

1шт.

2

392739A1

HYDRAULIC MOTOR

Draper Drive, Inc. 126-124

2шт.

429255A1

SEAL KIT

Replaces 346200A1

1шт.

3

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

4

87408330

SUPPORT

Left-Hand, Shown

1шт.

4

87408332

SUPPORT

Right-Hand

1шт.

5

388661A1

RING

Retaining, Internal

2шт.

6

379753A1

CAP

2шт.

7

395815A1

ROLL

2шт.

8

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

2шт.

9

396012A1

BALL BEARING,25mm ID x 52mm OD x 15mm W

Ball

2шт.

Install With Shielded Side Out

1шт.

10

341036A1

OIL SEAL

Bearing

2шт.

Install With Flat Side (With Writing) Out

1шт.

11

87408331

ARM

Left-Hand, Shown

1шт.

11

87408335

ARM

Right-Hand

1шт.

12

346030A1

ROD

Spring

2шт.

13

401978A1

SUPPORT

Upper Left Hand, Inc. Indicator

1шт.

13

401979A1

SUPPORT

Upper Right Hand, Inc. Indicator

1шт.

14

346027A1

SUPPORT

Lower

2шт.

15

346011A1

BAR

Tightener

2шт.

16

346047A1

BAR

Tightener

4шт.

17

401976A1

BAR

Compression

2шт.

18

346046A1

ARM

Tightener

2шт.

19

379760A1

RETAINER

Left-Hand, Shown

1шт.

19

379761A1

RETAINER

Right-Hand

1шт.

20

338344A1

SPACER

4шт.

21

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

2шт.

22

346009A1

TUBE

Idler Roller

2шт.

23

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

24

87422036

ROLLER ASSY.

Idler, Inc. 9 (2), 10 (4), 22 and 27

1шт.

25

346044A1

ARM

Idler, Rear

1шт.

26

346028A1

ARM

Idler, Front

1шт.

27

346008A1

SHAFT

Idler Roller

1шт.

28

346016A1

DRAPER

2шт.

21.0 Foot Header

1шт.

28

346018A1

DRAPER

2шт.

25.0 Foot Header

1шт.

28

346022A1

DRAPER

2шт.

30.0 Foot Header

1шт.

28

372311A1

DRAPER

Left-Hand

1шт.

36.0 Foot Header

1шт.

28

87446868

DRAPER

Left-Hand

1шт.

39.0 Foot Header

1шт.

28

372312A1

DRAPER

Right-Hand, Center Delivery

1шт.

36.0 Foot Header

1шт.

28

87446870

DRAPER

Right-Hand. Center Delivery

1шт.

39.0 Foot Header

1шт.

28

346018A1

DRAPER

Right-Hand Inboard Deck, Split Right-Hand Deck

1шт.

36.0 and 39.0 Foot Header

1шт.

28

372321A1

DRAPER

Right-Hand Outboard Deck, Split Right-Hand Deck

1шт.

36.0 Foot Header

1шт.

28

87446869

DRAPER

Right-Hand Outboard Deck, Split Right-Hand Deck

1шт.

39.0 Foot Header

1шт.

347517A1

EXTENSION

Draper Piece, 485 mm (19 in) Long

1шт.

379561A1

BELT

75 Foot Bulk Roll, Economy Material

1шт.

378467A1

DRAPER

150 Foot Bulk Roll, Deluxe Material

1шт.

29

379978A1

BOLT

2шт.

31

346048A1

PACKAGE

Inc. Two Slats and Hardware

2шт.

346049A1

PACKAGE

Draper Hardware, Inc. 12 Each of Screw and Nut

1шт.

a

358048A1

LOCK BOLT

3/8 NC x 3/4

1шт.

b

126620A1

HEX SOC SCREW,3/8" - 16 x 4.76mm

3/8 NC x 3/16

1шт.

c

483-1385

SET SCREW,Hex Soc, 3/8"-16 x 5/16"

1шт.

d

492-11038

LOCK WASHER,3/8"

1шт.

e

395825A1

WASHER

1шт.

j

425-1010

NUT,5/8"-11, G5

1шт.

k

346551A1

BOLT

5/8 x 7-1/2

1шт.

l

96-21066

WASHER,21/32" x 1 5/16" x .150", HDN

1шт.

m

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

n

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

p

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

1шт.

q

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

r

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1шт.
