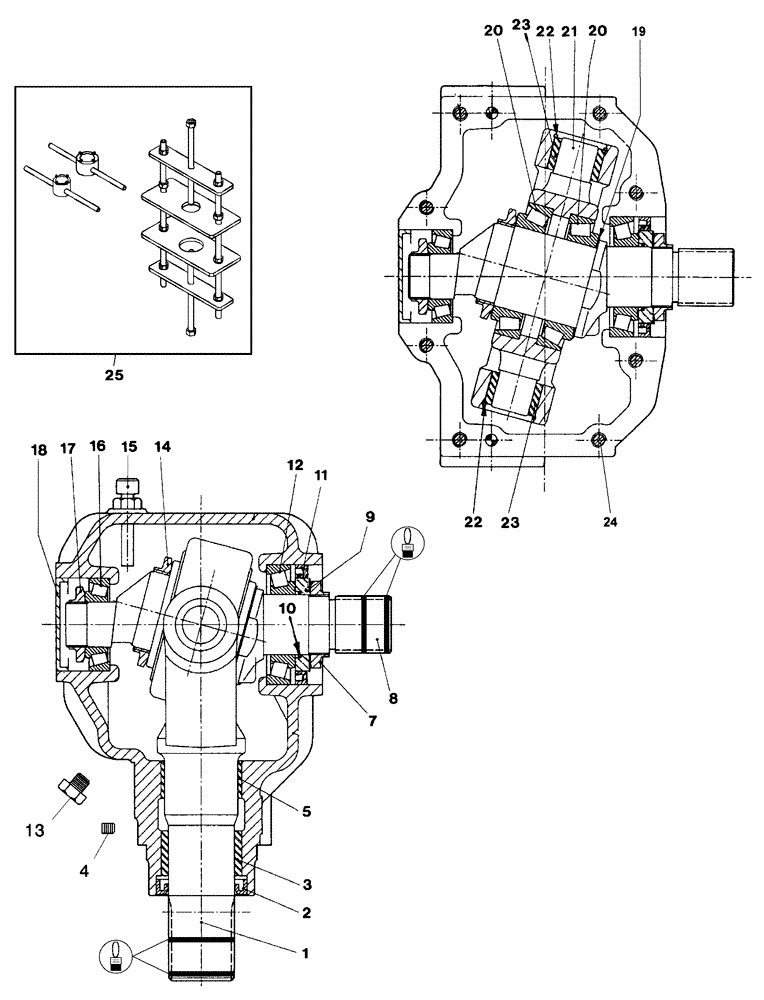

Запчасти Case IH 2052 (09-16) - KNIFE DRIVE BOX ASSEMBLY (03) - CHASSIS/MOUNTED EQUIPMENT

338670A1

DRIVE

Knife Drive, Inc. 1 - 24

1шт.

338670A1R

REMAN-GEARBOX

Remanufactured, Wobble Box

1шт.

338670A1C

CORE-GEARBOX

Return Number

1шт.

1

338694A1

YOKE

Output

1шт.

2

344584A1

OIL SEAL

Oil, Output Shaft

1шт.

3

344585A1

BUSHING

Bronze

1шт.

4

344594A1

PLUG

2шт.

5

338715A1

BUSHING

Steel

1шт.

7

344586A1

SPECIAL NUT

Special

1шт.

8

338695A1

SHAFT

Input

1шт.

9

344592A1

SPACER

60 mm OD

1шт.

10

344587A1

O-RING,2.62mm Thk x 40.95mm ID

1шт.

11

338752A1

OIL SEAL

Oil, Input Shaft, 60 mm ID

1шт.

12

3142394R91

TAPERED BEARING

Inc. 12A, 12B

1шт.

12a

NSS

NOT SOLD SEPARAT

Bearing, Cone

1шт.

12b

NSS

NOT SOLD SEPARAT

Bearing, Cup

1шт.

13

344593A1

PLUG

Oil Drain

2шт.

14

344588A1

NUT

Lock, M55

1шт.

15

338696A1

BREATHER

Inc. Dipstick

1шт.

16

338697A1

BEARING ASSY

Inc. 16A, 16B

1шт.

16a

NSS

NOT SOLD SEPARAT

Bearing, Cone

1шт.

16b

NSS

NOT SOLD SEPARAT

Bearing, Cup

1шт.

17

344589A1

NUT

Lock, M30-1,5

1шт.

18

338699A1

PLUG

Dust

1шт.

19

352623A1

SHIM

Input Shaft

1шт.

20

338700A1

BEARING ASSY

Inc. 20A, 20B

2шт.

20a

NSS

NOT SOLD SEPARAT

Bearing, Cone

1шт.

20b

NSS

NOT SOLD SEPARAT

Bearing, Cup

1шт.

21

338701A1

PIVOT

1шт.

22

344590A1

RING

Retaining, Internal

2шт.

23

344591A1

BUSHING

Bronze

2шт.

24

347021A1

SCREW

M10 x 50

8шт.

25

450916A1

KIT

TOOL, Sickle Drive Box

1шт.
