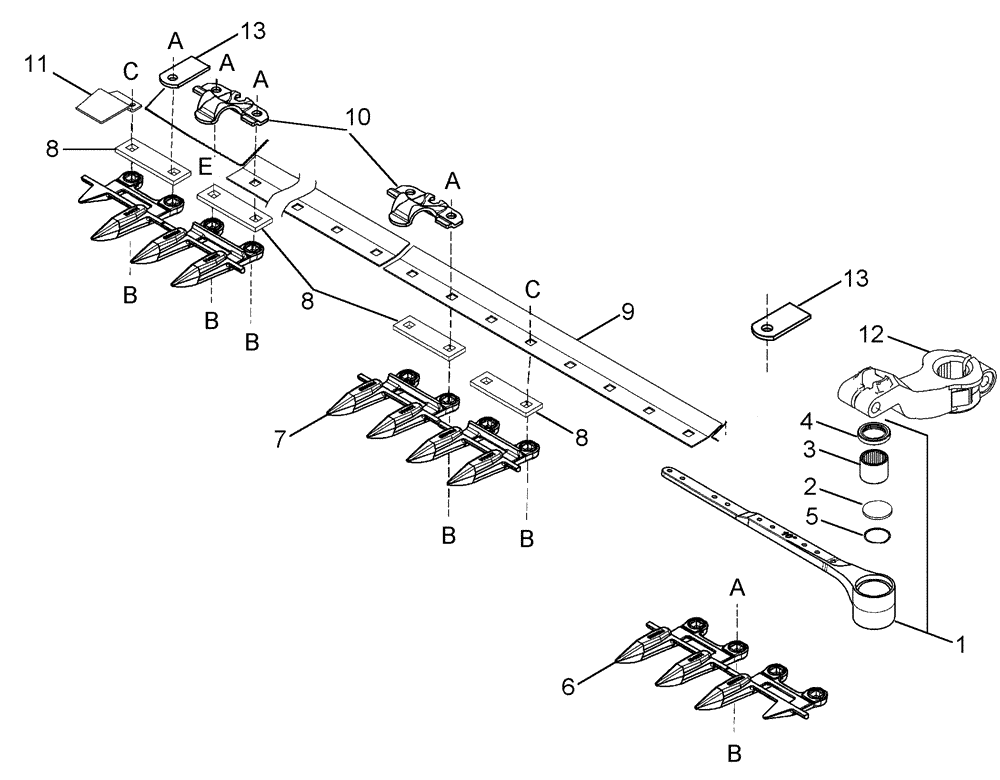

Запчасти Case IH 2052 (09-15) - RAISED SICKLES (03) - CHASSIS/MOUNTED EQUIPMENT

W0

ORDER WHOLEGOODS

Raised Sickle Kit

1шт.

Order 87461321 From Machinery

1шт.

W0

ORDER WHOLEGOODS

Raised Sickle Kit

1шт.

30.0, 36.0 and 39.0 Foot Header

1шт.

Order 87461322 From Machinery

1шт.

1

87457980

HEAD ASSY.

Raised Sickles, Includes Items 2 - 5

1шт.

2

395820A1

PLUG

Top-serrated

1шт.

3

A27827

NEEDLE BEARING,Needle, 31.75mm ID x 38.1mm OD x 31.75mm W

Needle

1шт.

4

345892A1

SEAL KIT

Sickle Head

1шт.

5

430320A1

O-RING,0.07" Thk x 1.364" ID, -28, Cl 5, 75 Duro

Sickle Head

1шт.

6

REF

INSTRUCTION

Sickle End Guards (Not Included)

1шт.

See Figure 09 -10

1шт.

7

REF

INSTRUCTION

Sickle Guards (Not Included)

1шт.

See Figure 09 -10

1шт.

8

369991A1

BAR

Spacer, Hold Downs

40шт.

21.0 Foot Header

1шт.

8

369991A1

BAR

Spacer, Hold Downs

48шт.

25.0 Foot Header

1шт.

8

369991A1

BAR

Spacer, Hold Downs

58шт.

30.0 Foot Header

1шт.

8

369991A1

BAR

Spacer, Hold Downs

70шт.

36.0 Foot Header

1шт.

8

369991A1

BAR

Spacer, Hold Downs

75шт.

39.0 Foot Header

1шт.

9

381060A1

PLATE

Raised Sickle, 23" Long, Left End

5шт.

21.0 Foot Header

1шт.

9

381059A1

PLATE

Raised Sickle, 36" Long

6шт.

25.0 Foot Header

1шт.

9

381061A1

PLATE

Raised Sickle, 29.5" Long, Right End

9шт.

30.0 Foot Header

1шт.

9

381063A1

PLATE

Raised Sickle, 41.5" Long, Right End

10шт.

36.0 and 39.0 Foot Header

1шт.

10

REF

INSTRUCTION

Guide, Sickle Hold Down (Not Included)

1шт.

See Figure 09 -10

1шт.

11

REF

INSTRUCTION

Shield, Sickle Right End, (Not Included)

1шт.

See Figure 09 -10

1шт.

12

REF

INSTRUCTION

Arm, Output, (Not Included)

1шт.

See Figure 09 -10

1шт.

13

87407811

RETAINER

Crop Deflector

2шт.

a

433-732

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2", Gr 5

1шт.

b

429-107

NUT,7/16"-14, G8

1шт.

c

86508778

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 5

1шт.

e

495-11047

WASHER,7/16", SAE

1шт.
