(09-11) - KNIFE ASSEMBLY, 21.0 FOOT HEADER, SERRATED COARSE SICKLES AND FINE SICKLES

Запчасти Case IH 2052 (09-11) - KNIFE ASSEMBLY, 21.0 FOOT HEADER, SERRATED COARSE SICKLES AND FINE SICKLES (03) - CHASSIS/MOUNTED EQUIPMENT

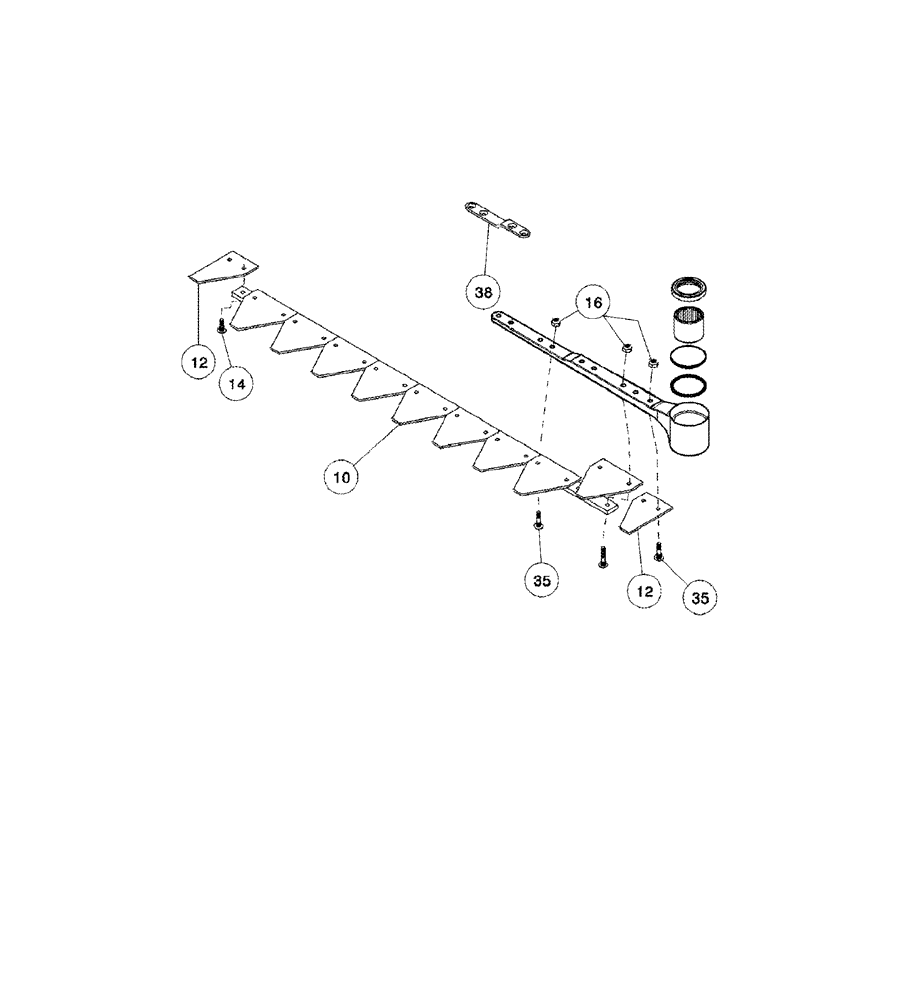

Схема запчастей Case IH 2052 - (09-11) - KNIFE ASSEMBLY, 21.0 FOOT HEADER, SERRATED COARSE SICKLES AND FINE SICKLES (03) - CHASSIS/MOUNTED EQUIPMENT
14
10
35
38
35
12
16
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

10

345891A1

KNIFE ASSY

Coarse Sickles

1шт.

10

87456669

KNIFE ASSY

Fine Sickles

1шт.

12

1327411C1

KNIFE SECTION

SECTION, KNIFE Half

2шт.

14

700708646

BOLT AND NUT,Slotted, Btn Hd, #12 - 24 x 5/8"

No. 12 x 5/8, Right Hand Side

1шт.

16

1954816C1

LOCK NUT

No. 12

3шт.

35

347236A1

SCREW

No. 12 x 59/64

2шт.

38

87456665

BAR

Reinforcing

1шт.
