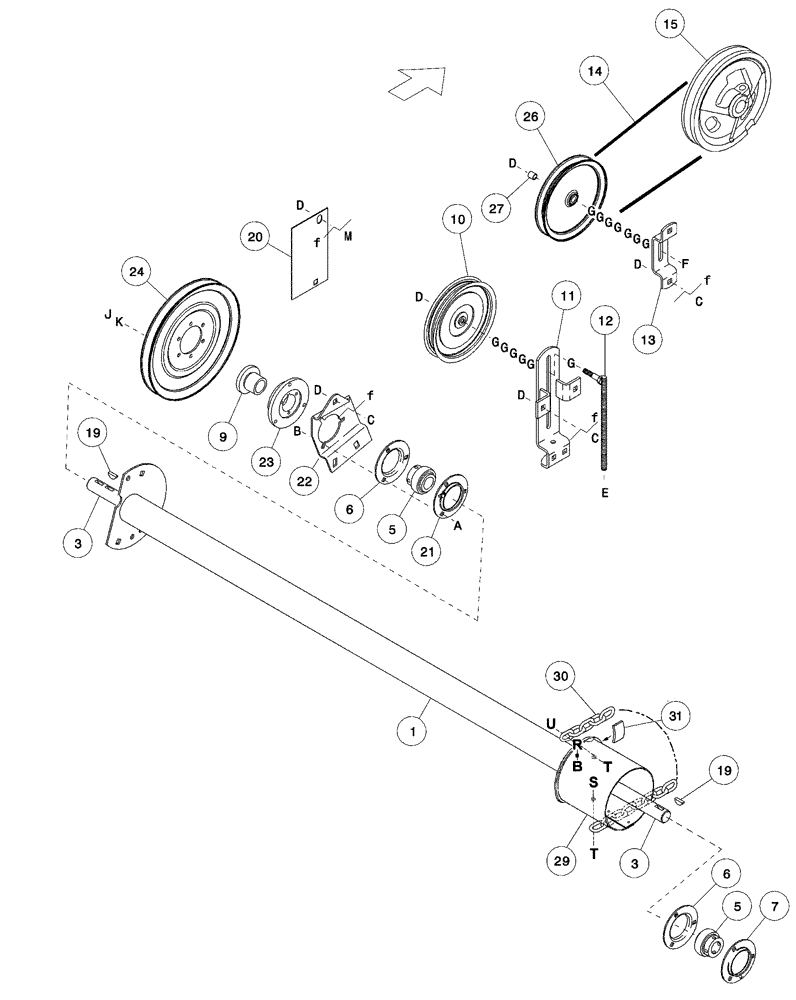

Запчасти Case IH 2052 (09-09) - SICKLE DRIVE SHAFT (03) - CHASSIS/MOUNTED EQUIPMENT

1

402105A1

SUPPORT

Drive Shaft

1шт.

21.0 Foot Header

1шт.

1

402106A1

SUPPORT

Drive Shaft

1шт.

25.0 Foot Header

1шт.

1

402107A1

SUPPORT

Drive Shaft

1шт.

30.0 Foot Header

1шт.

1

402108A1

SUPPORT

Drive Shaft

1шт.

36.0 Foot Header

1шт.

1

87446849

TUBE,2470 mm L

Drive Shaft

1шт.

39.0 Foot Header

1шт.

3

346014A1

SHAFT

Drive

1шт.

21.0 Foot Header

1шт.

3

346017A1

SHAFT

Drive

1шт.

25.0 Foot Header

1шт.

3

346025A1

SHAFT

Drive

1шт.

30.0 Foot Header

1шт.

3

372314A1

SHAFT

Drive

1шт.

36.0 Foot Header

1шт.

3

87446848

SHAFT

Drive

1шт.

39.0 Foot Header

1шт.

5

126608A1

BALL BEARING,34.92mm ID x 72mm OD x 17mm W

Includes Lock Collar

2шт.

21.0, 25.0, 30.0 and 39.0 Foot Header

1шт.

5

126608A1

BALL BEARING,34.92mm ID x 72mm OD x 17mm W

Inc. Lock Collar

3шт.

36.0 Foot Header

1шт.

6

1327467C1

FLANGED BEARING

Bearing

2шт.

7

1327468C1

FLANGE

Inc. Grease Fitting

1шт.

9

87422583

SPLINED BUSHING

Split Taper

1шт.

10

1336615C1

PULLEY

Back Side Idler

1шт.

11

338716A1

SUPPORT

Rear Idler

1шт.

12

338717A1

ROD

Threaded

1шт.

13

346015A1

SUPPORT

Front Idler

1шт.

14

338626A1

BELT,3688.00 mm L

Sickle Drive

1шт.

15

338585A1

GUIDE

Pulley, Driven

1шт.

See Figure 09 -10

1шт.

19

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

2шт.

20

346021A1

PLATE

Cover

1шт.

21

489871R1

FLANGE

Inc. Grease Fitting

1шт.

22

346019A1

SUPPORT

Outer

1шт.

23

346023A1

HUB

Pulley

1шт.

24

87422347

PULLEY

11-1/2 OD

1шт.

26

346010A1

PULLEY

16 mm (5/8 in) ID

1шт.

27

345846A1

BUSHING

Idler Pulley

1шт.

29

395996A1

SHIELD

Plastic

1шт.

30

395997A1

CHAIN (CE)

1шт.

31

126611A1

SEAL

Sponge

2шт.

a

33-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

b

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

c

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1шт.

d

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

e

425-108

NUT,1/2" - 13, Gr 5

1шт.

f

433-836

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

1шт.

g

495-11053

WASHER,1/2", SAE

1шт.

j

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

k

492-11038

LOCK WASHER,3/8"

1шт.

m

434-812

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 3/4", Gr 5

1шт.

r

409-768

BOLT,Hex Flg, 3/8" - 16 x 1/2", Spcl

1шт.

s

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1шт.

t

231-4144

NUT,1/4"-20, GB

1шт.

u

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.
