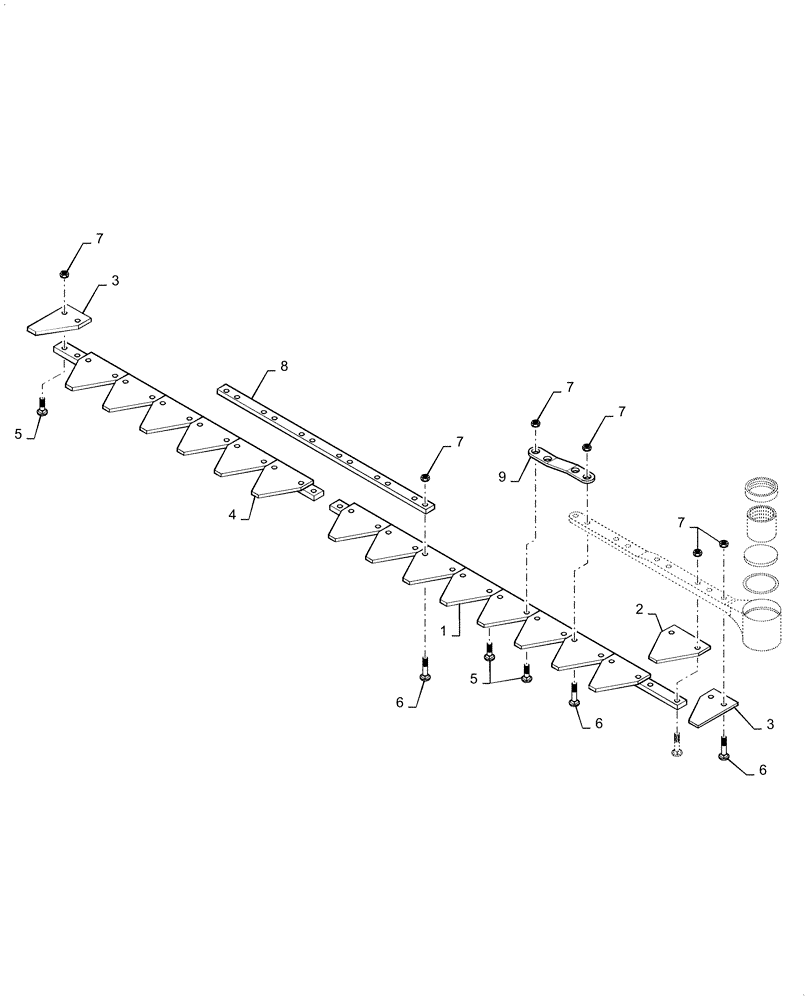

Запчасти Case IH 2042 (09-09) - KNIFE ASSEMBLY - COARSE SERRATED SICKLES

1

87456670

KNIFE ASSY

Inc. 87458207, Left Hand

1шт.

2

87422066

KNIFE SECTION

Top-serrated

3шт.

3

1327411C1

KNIFE SECTION

SECTION, KNIFE Half

1шт.

4

87422088

KNIFE ASSY

Right Hand

1шт.

30.0 Foot Header

1шт.

4

87422089

KNIFE ASSY

Right Hand

1шт.

36.0 Foot Header

1шт.

5

700708646

BOLT AND NUT,Slotted, Btn Hd, #12 - 24 x 5/8"

Sickle Back

1шт.

6

347236A1

SCREW

No. 12 x 59/64

8шт.

7

1954816C1

LOCK NUT

No. 12

8шт.

8

126622A1

BAR

Splice

1шт.

9

87456665

BAR

Reinforcing

1шт.
