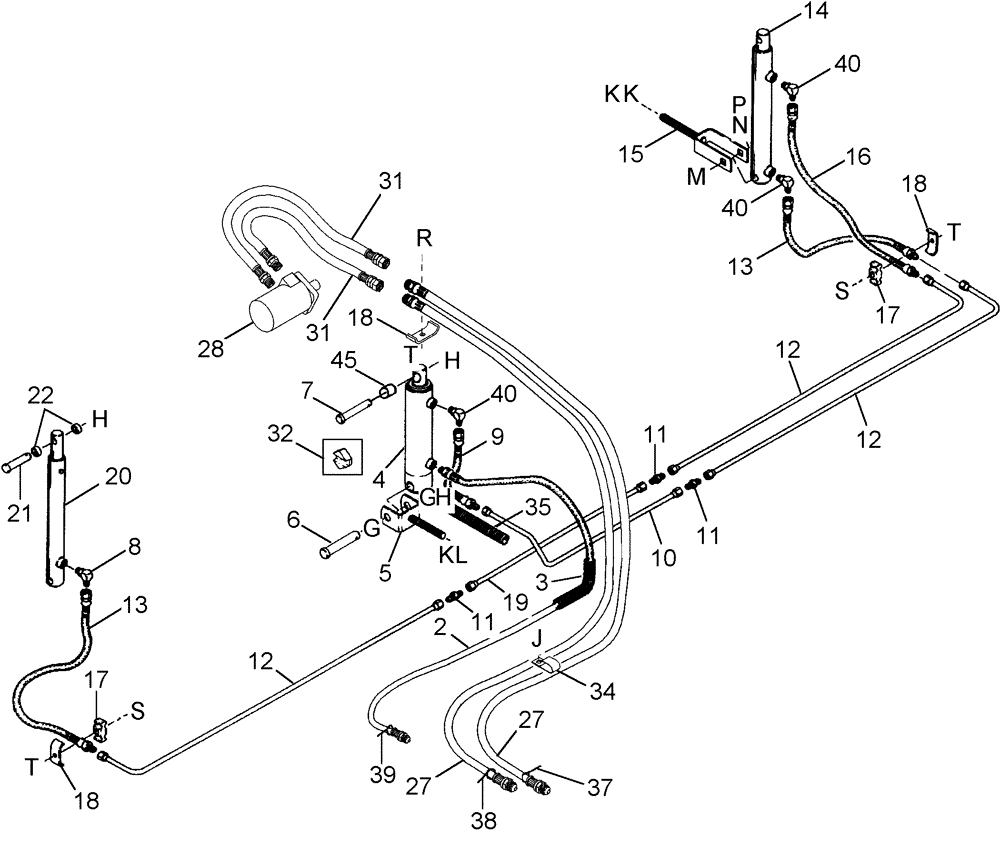

Запчасти Case IH 2042 (09-05) - HYDRAULIC CIRCUIT REEL LIFT AND REEL DRIVE - 36.0 FOOT HEADER

2

176856A1

HYDRAULIC HOSE

, Serial Range: -CCC0013274

1шт.

2

87458797

HOSE

, Start Serial: CCC0013274

1шт.

3

126632A1

CONDUIT

1шт.

4

87458794

CYLINDER,Double Acting, 30.2mm Rod, 155.6mm Stroke

1шт.

For Units BSN CCC0013274 Also Order 87458799

1шт.

1986073C1

SEAL KIT

, Serial Range: -CCC013274

1шт.

394522A1

SEAL KIT

, Start Serial: CCC0013274

1шт.

87414725

PISTON

1шт.

5

126631A1

CLEVIS

1шт.

6

344688A1

CLEVIS PIN

3/4 x 4-1/8

1шт.

7

352621A1

CLEVIS PIN

5/8 x 3-3/4

1шт.

8

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

4шт.

9

352618A1

HOSE

1шт.

10

126743A1

HYD TUBE,9.53 mm OD, 2250 mm Length

1шт.

11

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

9/16 fl

3шт.

12

126741A1

HYD TUBE,9.53 mm OD, 3152.5 mm Length

3шт.

13

1344536C1

HOSE

534 mm (21 in)

2шт.

14

87458795

LIFT CYLINDER,Double Acting, 28.56mm Rod, 254mm Stroke

1шт.

For Units BSN CCC0013274 Also Order 87458799

1шт.

823143C91

SEAL KIT

, Serial Range: -CCC0013274

1шт.

394524A1

SEAL KIT

, Start Serial: CCC0013274

1шт.

161332C2

PISTON

1шт.

15

338750A1

CLEVIS

2шт.

16

126624A1

HOSE

780 mm (31 in)

1шт.

17

1327304C1

CLAMP

Plastic

2шт.

18

1954807C1

CLAMP

Steel

3шт.

19

126742A1

HYD TUBE,9.53 mm OD, 4535 mm Length

1шт.

20

1337004C1

HYDRAULIC CYLINDER,25.4mm Rod, 250mm Stroke

Left-Hand

1шт.

823144C91

SEAL KIT

Seal

1шт.

21

1344998C1

CLEVIS PIN

5/8 x 2-1/2

2шт.

22

1276751C1

SPACER

4шт.

27

347477A1

HOSE ASSY.

2шт.

28

126686A1

MOTOR, HYDRAULIC

Reel Drive, Inc. 126-124

1шт.

28

591447R

REMAN-STEERING VALVE

2042 Reel Drive, 2052 DRAPER HEADER, Both (4/03-), Reman for New PN 126686A1

1шт.

28

591447C

CORE-STEERING VALVE

Return Number

1шт.

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

429255A1

SEAL KIT

1шт.

31

338849A1

HOSE

2шт.

32

826031C1

RESTRICTOR

1шт.

34

338322A1

CLIP

3шт.

35

352635A1

CONDUIT

1шт.

37

352622A1

FASTENER

Plastic Tie, White

1шт.

38

87407797

FASTENER

Plastic Tie, Yellow

1шт.

39

1336064C1

CABLE TIE

CABLE STRAP Plastic Tie, Black

1шт.

40

935036R91

ELBOW

3шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

45

394523A1

SPACER

1шт.

g

495-81042

WASHER,25/32" x 1 1/2" x .120"

1шт.

h

32-1220

COTTER PIN,3/16" x 1 1/4"

1шт.

j

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

1шт.

k

425-1010

NUT,5/8"-11, G5

1шт.

l

425-1410

JAM NUT,Jam, 5/8"-11, G5

1шт.

m

433-1056

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/2", Gr 5

1шт.

n

495-11066

WASHER,5/8", SAE

1шт.

p

231-41410

NUT,5/8"-11, GB

1шт.

r

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

1шт.

s

433-632

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

1шт.

t

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.
