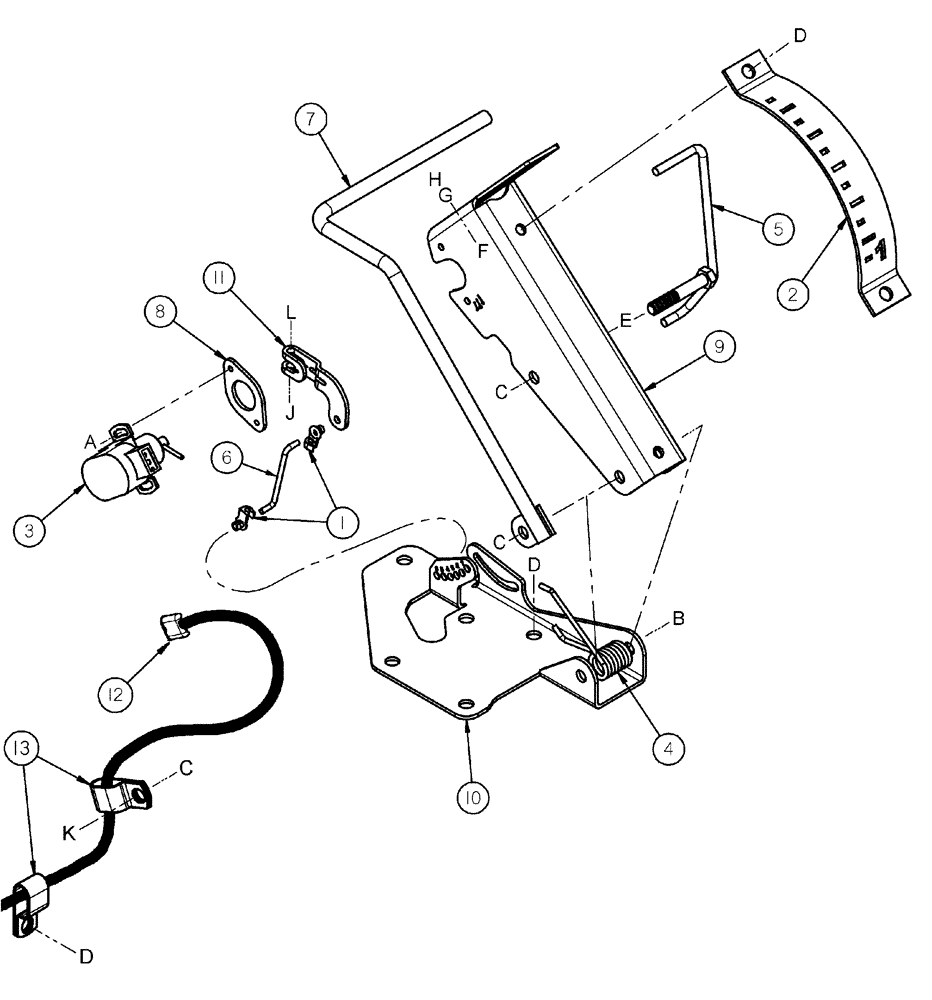

Запчасти Case IH 2042 (09-45) - FLOAT OPTIMIZER ATTACHMENT - NEW HOLLAND CR/CX COMBINES

1

87408732

CLIP

Rod End

2шт.

2

87408752

INDICATOR

Gauge, Header Float

1шт.

3

87408775

POTENTIOMETER

Sensor

1шт.

4

87422072

SPRING

Torsion

1шт.

5

87422074

MOUNTING PARTS

Rod, Header Float

1шт.

6

87422075

ROD

Linkage

1шт.

7

87422077

ARM/LIFTING DEVICE

Sensing

1шт.

8

87422079

SUPPORT

Sensor Mounting

1шт.

9

87422084

SUPPORTING ARM

Upper

1шт.

10

87422091

BRACKET

Lower Mounting

1шт.

11

87422094

CONNECTING LINK

Linkage

1шт.

12

87408805

WIRE HARNESS

New Holland CR/CX

1шт.

13

344825A1

SUPPORT

Harness

1шт.

a

87036181

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

1шт.

b

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

c

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

d

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

1шт.

e

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

f

1336677C1

BOLT

3/8 x 2-1/4, Full Thread

1шт.

g

495-11053

WASHER,1/2", SAE

1шт.

h

231-5146

FLANGE NUT,3/8"-16

1шт.

j

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

k

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

1шт.

l

230-4244

LOCK NUT,1/4"-20, GA

1шт.
