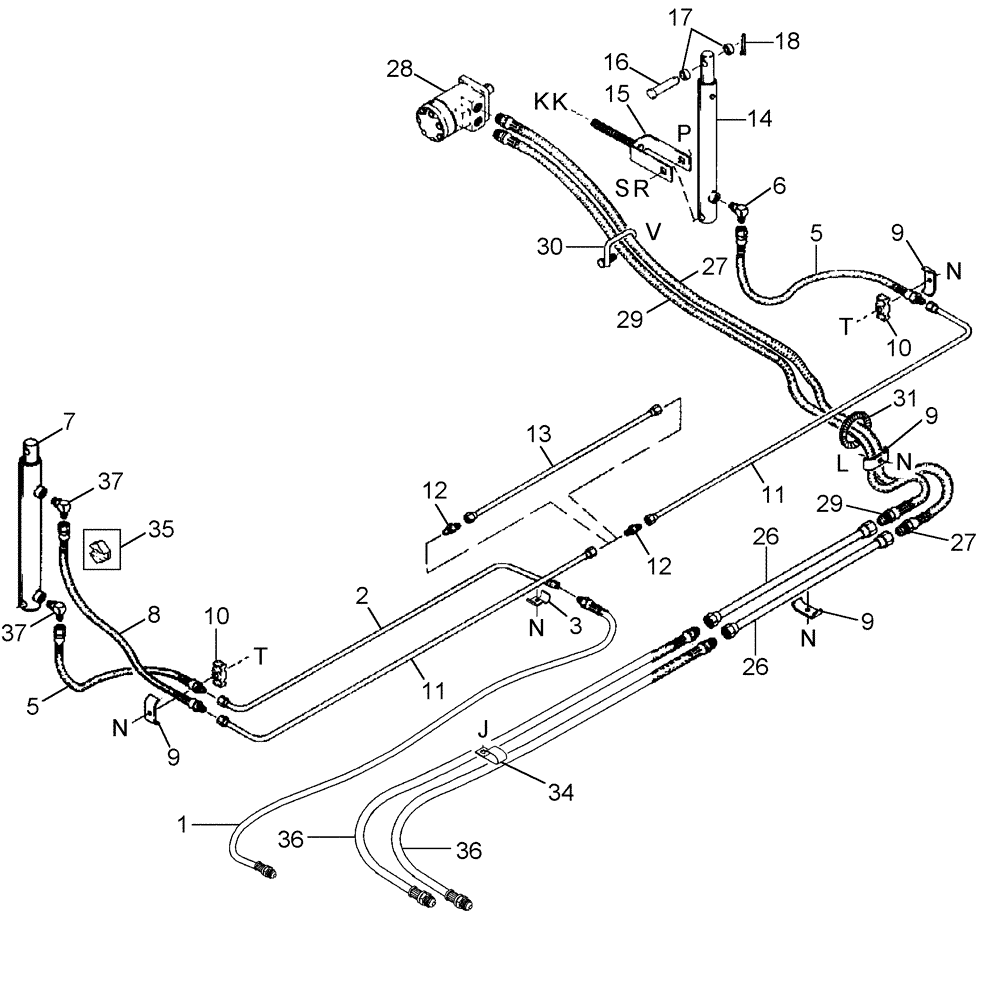

Запчасти Case IH 2042 (09-04) - HYDRAULIC CIRCUIT REEL LIFT AND REEL DRIVE - 30.0 FOOT HEADER

1

126624A1

HOSE

1шт.

2

338579A1

LINE

1шт.

3

1276808C1

CLIP

1шт.

5

1344536C1

HOSE

534 mm (21 in)

2шт.

6

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

, Serial Range: -CCC0013274

3шт.

6

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

, Start Serial: CCC0013274

1шт.

7

87458795

LIFT CYLINDER,Double Acting, 28.56mm Rod, 254mm Stroke

1шт.

For Units BSN CCC0013274 Also Order 87458799

1шт.

823143C91

SEAL KIT

, Serial Range: -CCC0013274

1шт.

394524A1

SEAL KIT

, Start Serial: CCC0013274

1шт.

161332C2

PISTON

1шт.

8

126624A1

HOSE

780 mm (31 in)

1шт.

9

1954807C1

CLAMP

Steel

11шт.

10

1327304C1

CLAMP

Plastic

2шт.

11

126741A1

HYD TUBE,9.53 mm OD, 3152.5 mm Length

2шт.

12

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

2шт.

13

131541A1

LINE

1шт.

14

1337004C1

HYDRAULIC CYLINDER,25.4mm Rod, 250mm Stroke

1шт.

823144C91

SEAL KIT

Seal

1шт.

15

338750A1

CLEVIS

2шт.

16

1344998C1

CLEVIS PIN

5/8 x 2-1/2

2шт.

17

1276751C1

SPACER

4шт.

18

32-1220

COTTER PIN,3/16" x 1 1/4"

2шт.

26

131472A1

LINE

2шт.

27

131522A1

HOSE

2400 mm (95 in)

1шт.

28

126686A1

MOTOR, HYDRAULIC

Reel Drive, Inc. 126-124

1шт.

28

591447R

REMAN-STEERING VALVE

2042 Reel Drive, 2052, Both DRAPER HEADER (4/03-), Reman for New PN 126686A1

1шт.

28

591447C

CORE-STEERING VALVE

Return Number

1шт.

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

429255A1

SEAL KIT

1шт.

29

131522A1

HOSE

2400 mm (95 in)

1шт.

30

131515A1

GUIDE

(Not Used With Hydraulic Reel Fore-Aft Option)

1шт.

31

1336860C1

HOSE

2шт.

34

338322A1

CLIP

4шт.

35

826031C1

RESTRICTOR

1шт.

36

87423127

HOSE ASSY.

1шт.

37

935036R91

ELBOW

, Start Serial: CCC0013274

2шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

j

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

1шт.

k

425-1010

NUT,5/8"-11, G5

1шт.

l

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

1шт.

n

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

p

433-1056

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/2", Gr 5

1шт.

r

495-11066

WASHER,5/8", SAE

1шт.

s

231-41410

NUT,5/8"-11, GB

1шт.

t

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

1шт.

v

231-4148

NUT,1/2"-13, GB

1шт.
