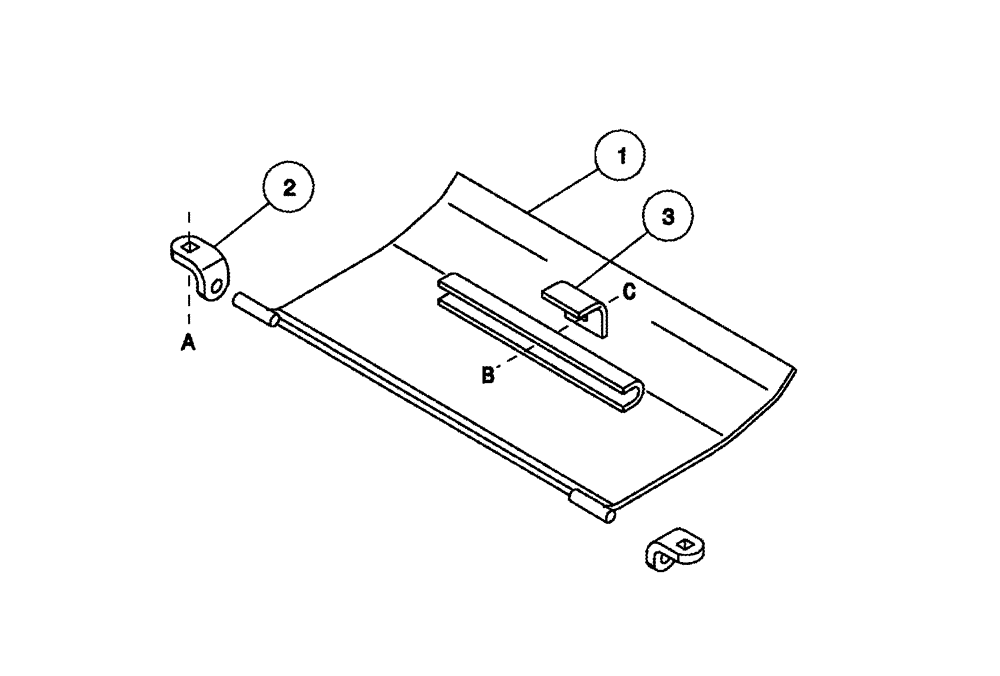

Запчасти Case IH 2042 (09-26) - SKID SHOES

1

344840A1

SHOE

Adjustable

2шт.

2

344837A1

SUPPORT

Front

4шт.

3

344841A1

ANGLE

Rear Support

2шт.

4

344839A1

SHOE

Adjustable, Inc. 3, Inc. Hardware

2шт.

a

433-728

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 5

1шт.

b

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

c

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.
