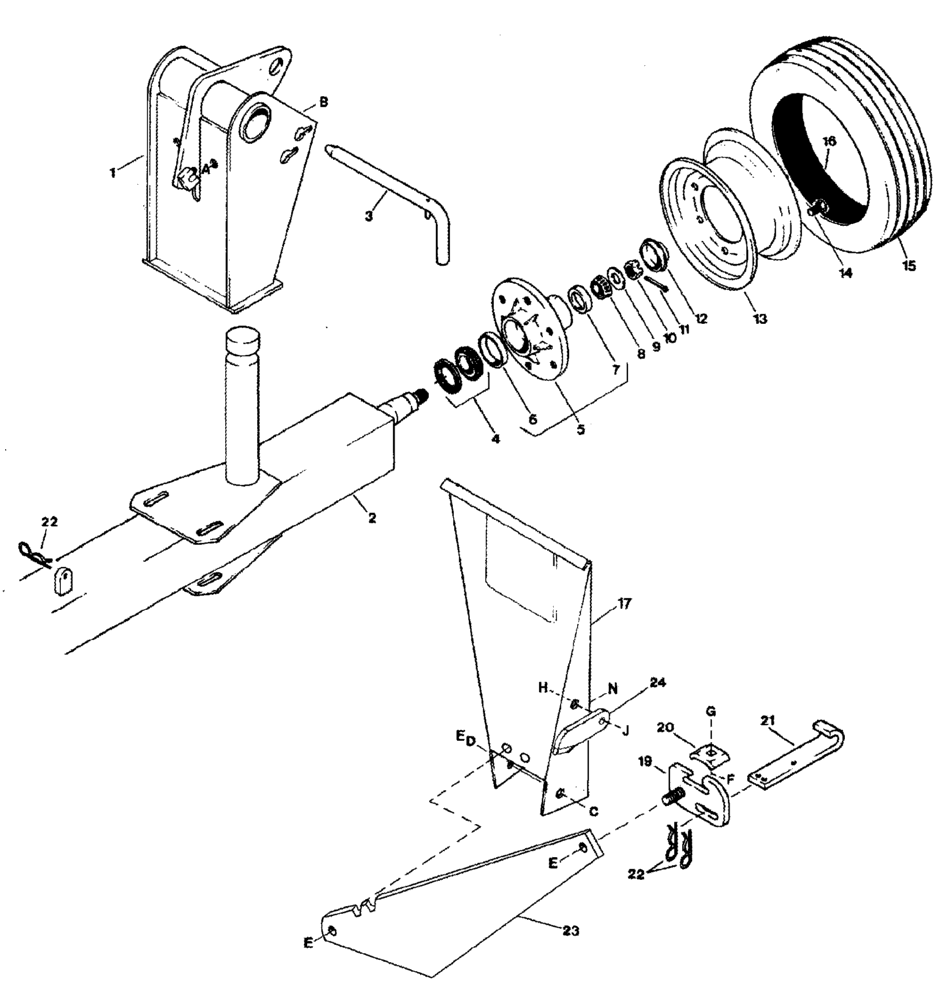

Запчасти Case IH 2042 (09-23) - GAUGE WHEELS WITH TRANSPORT OPTION - RIGHT WHEEL SUPPORT AND WHEEL

1

352654A1

SUPPORT

Inc. Decal, Inc. Grease Fitting

1шт.

2

352656A1

BEAM

Right Hand

1шт.

3

126738A1

PIN

Inc. Roll Pin

2шт.

4

96173C1

BEARING ASSY,38.1mm ID x 25.4mm W

Inc. Seal

3шт.

5

96172C1

HUB

Inc. 6, 7

3шт.

6

478793R1

BEARING CUP

Inner

3шт.

7

651817R1

BEARING CUP

Outer

3шт.

7

651817R1GV

BEARING CUP

Value, Bearing Cup

3шт.

8

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

3шт.

9

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

3шт.

10

425-1312

SLOTTED NUT,3/4"-16, G5

3шт.

11

32-1220

COTTER PIN,3/16" x 1 1/4"

3шт.

12

820166C1

CAP

3шт.

13

481344R91

WHEEL

14 x 8

3шт.

14

344630A1

WHEEL BOLT

18шт.

15

352642A1

TYRE/TIRE

9.5L-14, 8 ply

3шт.

16

352641A1

TUBE

Inner

3шт.

17

352662A1

BAR

Right Hand Wheel Beam

1шт.

19

352659A1

RETAINER

1шт.

20

352660A1

ANCHOR

1шт.

21

352657A1

BAR

1шт.

22

591107R1

COTTER PIN

3шт.

23

387278A1

SUPPORT

Right Hand Wheel Beam

1шт.

24

387279A1

SUPPORT

1шт.

a

231-4148

NUT,1/2"-13, GB

1шт.

b

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

c

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

1шт.

d

492-11062

BEARING WASHER,5/8"

1шт.

e

231-41410

NUT,5/8"-11, GB

1шт.

f

433-728

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 5

1шт.

g

429-107

NUT,7/16"-14, G8

1шт.

h

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

1шт.

j

231-53410

FLANGE NUT,Flg, 5/8"-11

1шт.

n

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

1шт.
