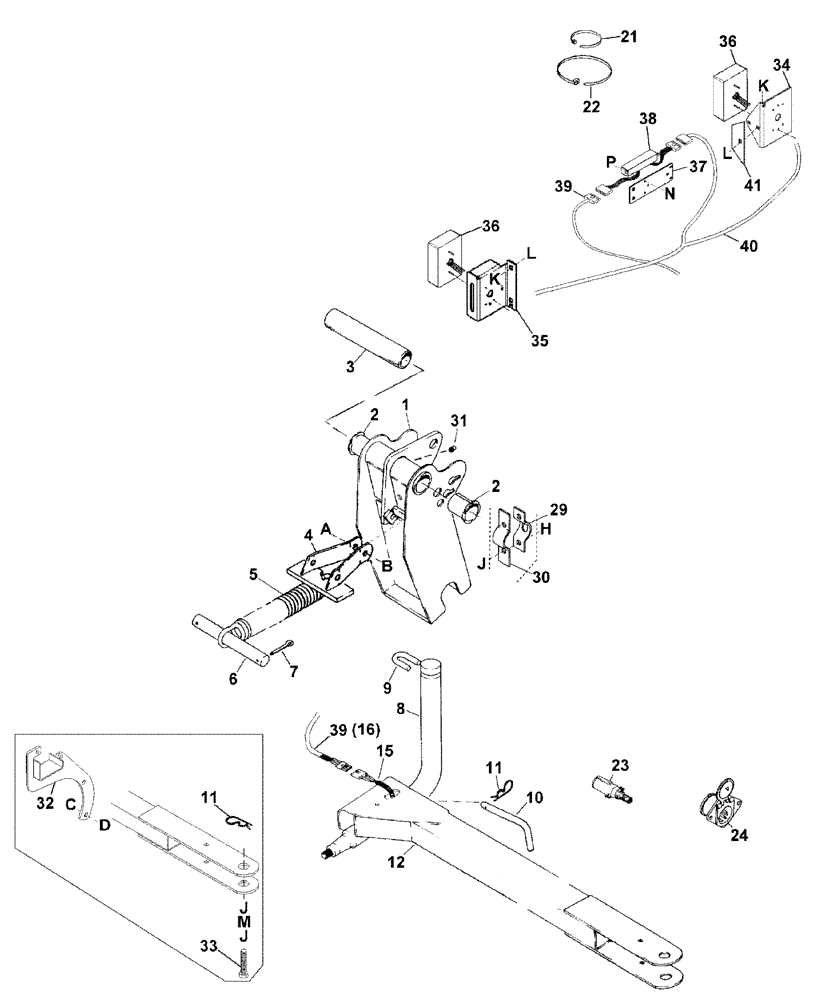

Запчасти Case IH 2042 (09-22) - GAUGE WHEELS WITH TRANSPORT OPTION - LEFT WHEEL SUPPORT, HITCH AND ELECTRICAL

1

352653A1

SUPPORT

Left Hand, Inc. 31, Inc. Decal

1шт.

2

1969215C1

BUSHING,51.2mm ID x 55.3mm OD x 62mm L

4шт.

3

338855A1

TUBE

2шт.

4

338276A1

SUPPORT

2шт.

5

126629A1

SPRING

2шт.

6

344632A1

PIN

2шт.

7

32-1632

COTTER PIN,1/4" x 2"

4шт.

8

352651A1

SPINDLE

Left Hand

1шт.

9

352652A1

RETAINER

1шт.

10

352643A1

PIN

1шт.

11

591107R1

COTTER PIN

2шт.

12

352645A1

HITCH ASSY, TRAILER

Inc. Decal, Inc. Chain

1шт.

15

352646A1

HARNESS

Inc. Male and Female Connectors

1шт.

21

1336064C1

CABLE TIE

CABLE STRAP 190 mm (7-1/2 in)

7шт.

22

306132C1

CABLE TIE,14.5" L

CABLE STRAP 14 in

4шт.

23

1960430C1

PLUG

Male

1шт.

24

1281476C1

SOCKET/RECEPTACLE

Female

1шт.

29

338293A1

BRACKET

4шт.

30

338292A1

BRACKET

4шт.

31

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

32

352165A1

SUPPORT

1шт.

33

352663A1

BOLT

1/2 x 3-1/4

1шт.

34

347503A1

SUPPORT

Rear Lamp

1шт.

35

362464A1

SUPPORT

Front Lamp, Inc. Reflector

1шт.

36

369989A1

LAMP

2шт.

37

347504A1

SUPPORT

1шт.

38

362463A1

LAMP

1шт.

39

347505A1

HARNESS

1шт.

40

347506A1

HARNESS

1шт.

41

370007A1

BAR

1шт.

a

231-41410

NUT,5/8"-11, GB

1шт.

b

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

c

33-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

d

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

j

425-108

NUT,1/2" - 13, Gr 5

1шт.

k

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1шт.

l

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

m

495-11066

WASHER,5/8", SAE

1шт.

n

451173A1

SCREW

No. 8 x 3/4

1шт.

p

451174A1

SPECIAL NUT

No. 8

1шт.
