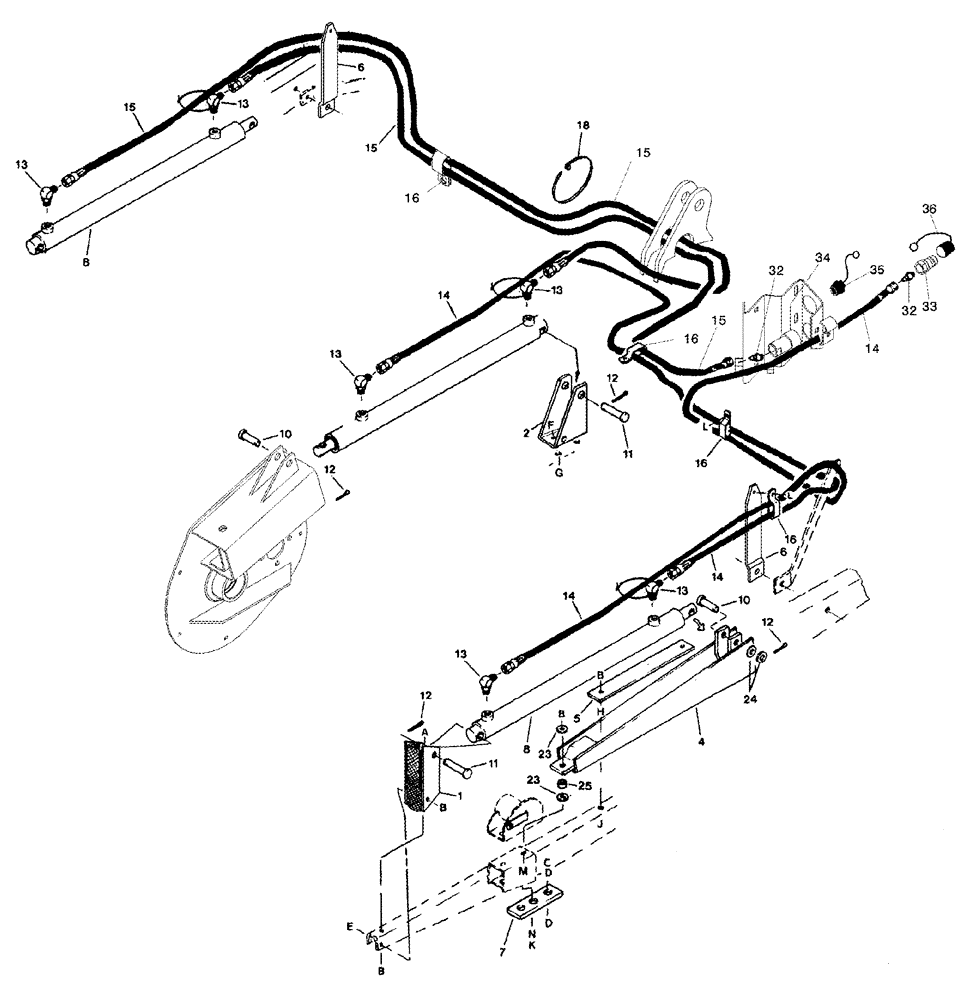

Запчасти Case IH 2042 (09-21) - HYDRAULIC CIRCUIT REEL FORE/AFT - 36.0 FOOT HEADER
№
Артикул
Название
Примечание
Количество
1
370006A1
SUPPORT
Cylinder, Left Hand Front, Right Hand Front
2шт.
2
338833A1
SUPPORT
Center Rear
1шт.
4
338850A1
SUPPORT
Left Hand Rear, Right Hand Rear
2шт.
5
338831A1
BAR
2шт.
6
352664A1
SUPPORT
2шт.
7
338846A1
BAR
2шт.
8
429264A1
CYLINDER
MacDon Part Number 121028
3шт.
338281A1
PISTON
1шт.
394524A1
SEAL KIT
1шт.
10
427-10247
CLEVIS PIN,5/8" x 2.47"
3шт.
11
427-10300
CLEVIS PIN,5/8" x 4"
3шт.
12
32-1220
COTTER PIN,3/16" x 1 1/4"
6шт.
13
218-5105
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
6шт.
14
450929A1
HOSE
2шт.
15
450930A1
HOSE
2шт.
16
344825A1
SUPPORT
22шт.
18
L18337
CABLE TIE,9.95"-12.1" lg
CABLE STRAP 15 in
6шт.
20
1336275C1
REFLECTOR
2шт.
23
495-81135
WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk
Without Pickup Reel
4шт.
23
495-81135
WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk
With Pickup Reel (Install Upper Washer Only)
2шт.
24
495-11066
WASHER,5/8", SAE
4шт.
25
338827A1
SPACER
2шт.
32
352667A1
FITTING
9/16 fl x Or
2шт.
34
1282338C91
COUPLING, QUICK, FEM
7/8 NF, Self-Sealing
1шт.
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
35
370003A1
CAP
1шт.
36
370004A1
CAP
1шт.
a
434-620
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5
1шт.
c
1258471C1
BOLT,Hex, 5/8" - 11 x 2 1/2", Full Thd
1шт.
d
425-1010
NUT,5/8"-11, G5
1шт.
e
413-652
BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5
1шт.
f
434-816
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5
1шт.
g
231-5148
FLANGE NUT,Flg, USR, 1/2"-13
1шт.
h
425-106
NUT,3/8"-16, Cl 5
1шт.
j
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
1шт.
k
413-1024
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5
1шт.
l
281-1488
SELF-TAP SCREW,Hex Wash Hd, 5/16" x 1/2"
1шт.
m
433-624
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/2", Gr 5
1шт.
n
492-11062
BEARING WASHER,5/8"
1шт.
Выбрано товаров: 41
